11.
OFF/VOL (OFF / Volume) Control
This knob switches the radio ON and OFF and it adjusts the volume control. If no signals are being received on the
operating channel, it is suggested to open the SQUELCH and adjust the volume to the desired level while listening to
the background noise.
12.
MICROPHONE Connector
Connect the supplied dynamic microphone to this connector, locking it through the ring nut.

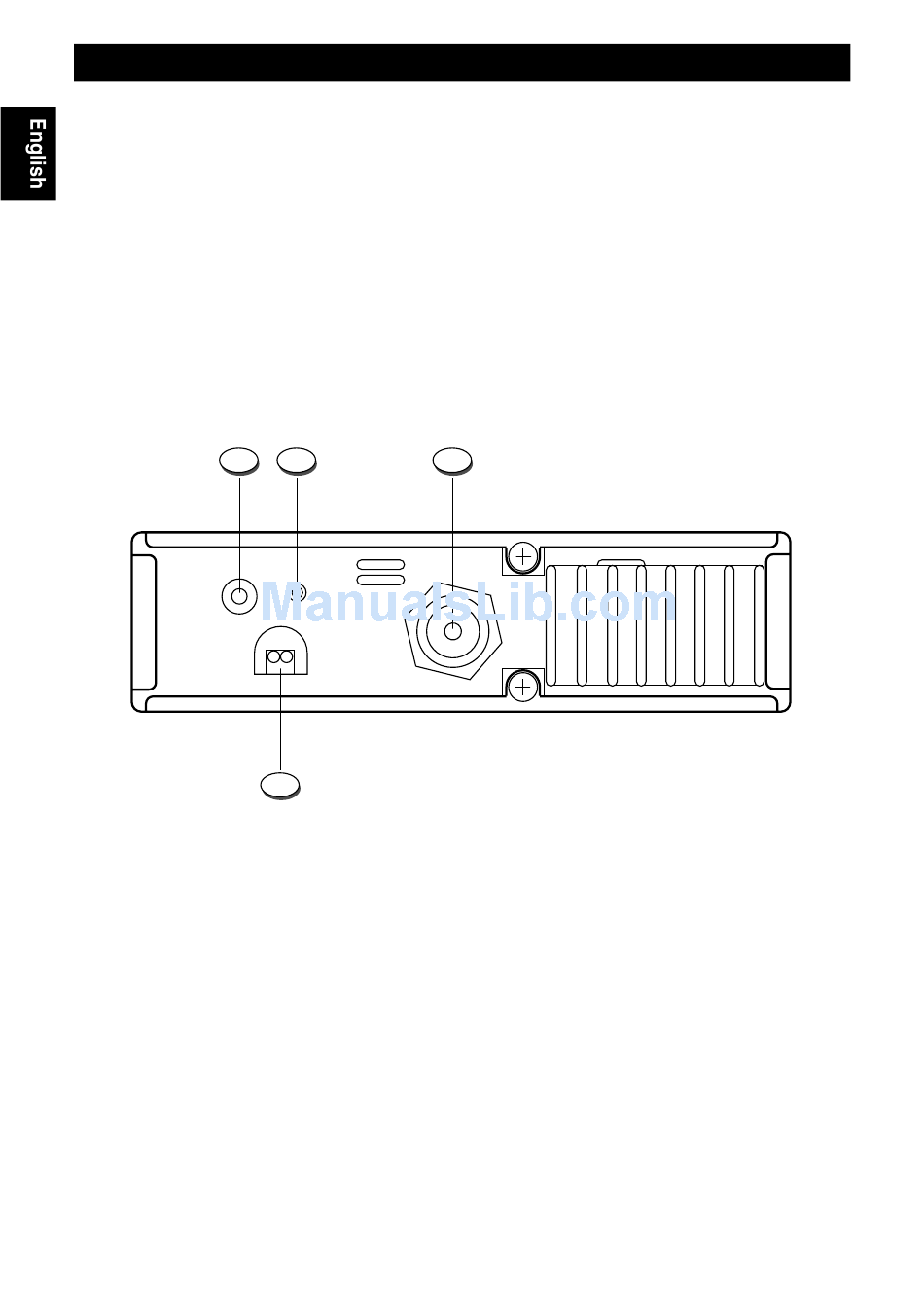

Rear Panel
13
EXT
DC
13.2V
13.
EXT (External Speaker) Jack
This jack is for connecting an external speaker (optional).
14.
S-METER Jack
This jack is for connecting an external S-METER (optional).
15.
ANTENNA Connector (SO-239)
Antenna connector. Refer to the section INSTALLATION OF THE ANTENNA.
16.
13.2VDC POWER CORD
13.2VDC power cord input.
Controls and operation
14
15
S-METER
ANTENNA
16
- 6 -
