M-550 POWER
MULTI STANDARD PROGRAMMABLE
27 MHz CB MOBILE TRANSCEIVER
OWNER'S MANUAL
MANUALE DI ISTRUZIONI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-550 POWER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intek M-550 POWER

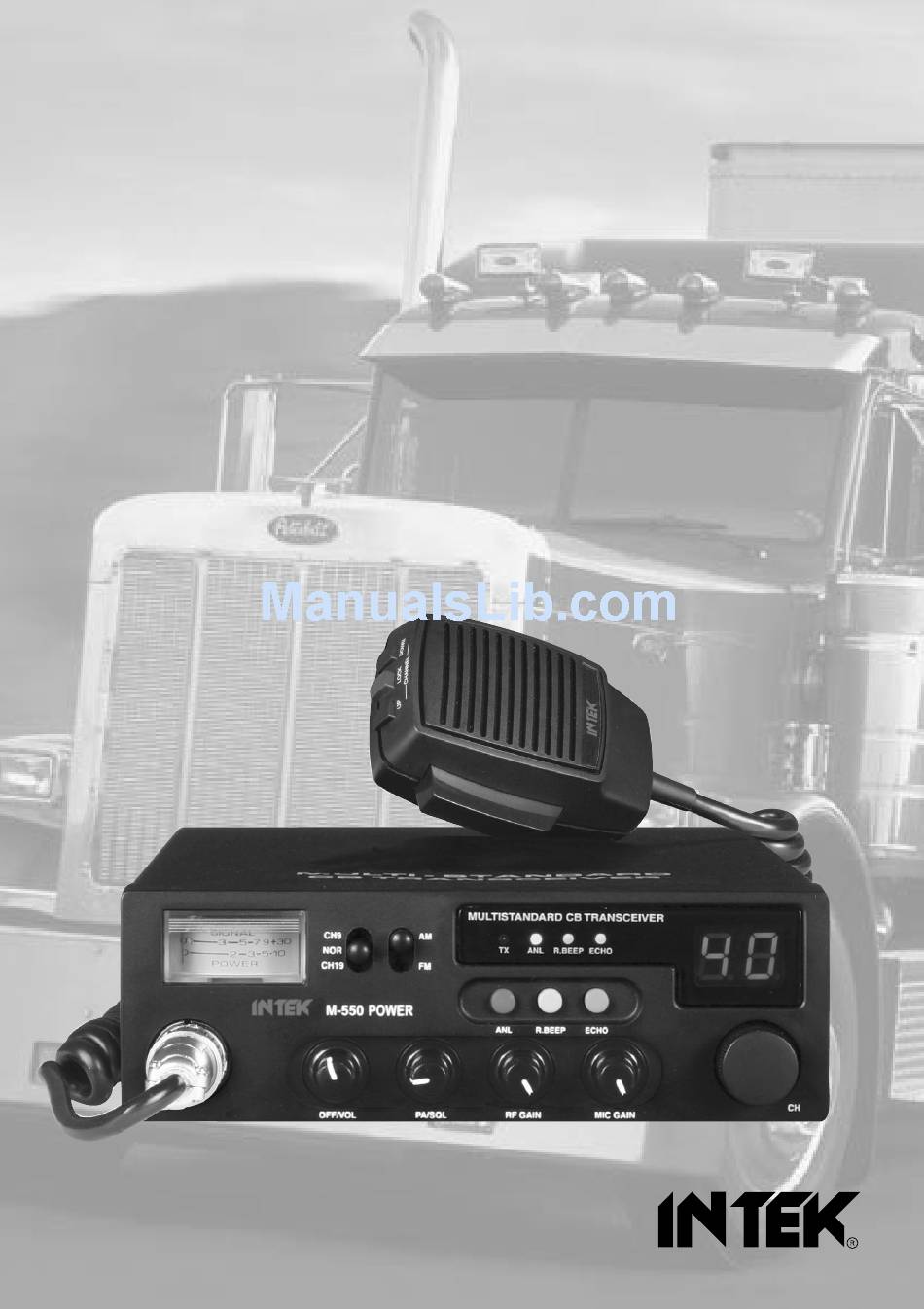

  • Page 1 M-550 POWER MULTI STANDARD PROGRAMMABLE 27 MHz CB MOBILE TRANSCEIVER OWNER'S MANUAL MANUALE DI ISTRUZIONI...
  • Page 2: Declaration Of Conformity

    (to EC Directive 99/5-89/336-93/68-73/23) DECLARATION OF CONFORMITY With the present declaration, we certify that the following products : INTEK M-550 POWER comply with all the technical regulations applicable to the above mentioned products in accordance with the EC Directives 73/23/EEC, 89/336/EEC and 99/5/EC.
  • Page 3: Table Of Contents

    With a correct use of the product in accordance with the operating method described in this manual, the product will offer a trouble free use for many years. INTEK is constantly engaged to develop and provide quality products meeting the customers requirements, however any suggestion or comments on this product that might help us to improve quality are warmly welcome.
  • Page 4: Controls And Operation

    Controls and operation Front Panel MULTISTANDARD CB TRANSCEIVER SIGNAL 9 +30 ANL R.BEEP ECHO CH19 POWER M-550 POWER R.BEEP ECHO OFF/VOL PA/SQL RF GAIN MIC GAIN Analogue S/RF Meter The analogue S/RF Meter indicates the received signal strenght (from S0 to S9+30) and the transmitter RF output power.
  • Page 5 Controls and operation ECHO Indicator This green color LED indicator is lighted when the ECHO function is enabled. The ECHO function can be used only if the optional ECHO card (mod. ECHO-550P) has been installed. LED Display The large size two-digit LED display indicates the operating channel and the programmed frequency band code. CHANNEL Selector This knob selects the channel number, by one channel steps.
  • Page 6 Controls and operation OFF/VOL (OFF / Volume) Control This knob switches the radio ON and OFF and it adjusts the volume control. If no signals are being received on the operating channel, it is suggested to open the SQUELCH and adjust the volume to the desired level while listening to the background noise.
  • Page 7 Controls and operation Microphone PTT (Push-to-Talk) Key Transmitter key. Press the PTT key to transmit and release it to return to the receive mode. UP (Channel Selector) Key Each time this key is pressed, the channel number will move upward by one channel. LOCK (Keypad Lock) Key Press the LOCK key (24) to enable the LOCK function, in order lock the keypad and prevent entering unwanted commands.
  • Page 8: Installation

    Installation Installation Before installing the main unit in the vehicle, check and select the most convenient location, in order that the radio will be easy to reach and comfortable to operate, without disturbing or interfering with the vehicle drive. Use the supplied bracket and hardware to install the radio.
  • Page 9: Frequency Bands Table

    Frequency bands table Frequency Bands Table The transceiver INTEK M-550 POWER includes an advanced multi-standard programmable circuit, which allows to program different frequency bands, specifications and operating modes, in conformity with the regulations in the country where the product is used. 8 programmable frequency bands are available, as per the below table :...
  • Page 10: Frequency Band Selection / Programming

    RF output power limited to 4W, in accordance with the current R&TTE regulations. This factory preset configuration can not be modified by the user. INTEK declines any responsability for any modification or tampering of the product, made by the user after purchase.
  • Page 11: Specifications

    Specifications Specifications General Channels 40 FM (refer to the frequency bands table at page 7) Frequency range 25.315 – 29.105 MHz Frequency control P.L.L. Operatine temperature -10°/+55°C DC input voltage 13.2Vdc ±15% Size 180 (L) x 50 (H) x 153 (D) mm Weight 940 gr.
  • Page 12 CE (CEPT 40CH FM 4W). Congratulazioni ! Congratulazioni per aver scelto ed acquistato un prodotto di qualità INTEK. Questo ricetrasmettitore dispone di numerose funzioni avanzate e vari dispositivi, pertanto è assolutamente necessario leggere attentamente questo manuale di istruzioni prima di utilizzare l' apparecchio.
  • Page 13 Descrizione dei comandi e funzionamento Pannello frontale MULTISTANDARD CB TRANSCEIVER SIGNAL 9 +30 ANL R.BEEP ECHO CH19 POWER M-550 POWER R.BEEP ECHO OFF/VOL PA/SQL RF GAIN MIC GAIN Strumento analogico S/RF Lo strumento analogico S/RF Meter indica l' intensità del segnale ricevuto da S0 a S9+30 in ricezione e la potenza RF di uscita in trasmissione.
  • Page 14 Descrizione dei comandi e funzionamento Indicatore ECHO Questo indicatore LED luminoso di colore verde è acceso quando è abilitato il dispositivo Echo, attivabile solo dopo l' inserimento della scheda ECHO (mod. ECHO-550P) opzionale. LED Display Display a LED, indica il canale in uso e la banda selezionata. Selettore canali Selettore di tipo meccanico che permette la selezione dei canali a scatti di 1 canale per volta, in ordine crescente (manopola ruotata in senso orario) o decrescente (manopola ruotata in senso antiorario).
  • Page 15 Descrizione dei comandi e funzionamento Manopola OFF/VOL (OFF / Volume) Manopola di accensione e spegnimento della radio. Permette la regolazione del volume di ascolto. In assenza di segnali sul canale in uso, si consiglia di aprire lo SQUELCH e quindi di regolare il volume al livello desiderato utilizzando come riferimento il rumore (fruscio) di fondo.
  • Page 16 Descrizione dei comandi e funzionamento Microfono Tasto PTT (Push-to-Talk) Tasto di trasmissione. Premere per trasmettere e mantenere premuto durante la trasmissione e rilasciare per ritornare in modalità ricezione. Tasto UP (selettore dei canali) Tasto per la selezione dei canali in ordine crescente. Ad ogni pressione del tasto, il numero del canale viene incrementato di un canale per volta.
  • Page 17 Installazione e collegamenti elettrici Installazione E' necessario verificare e localizzare sul veicolo la posizione più opportuna ove installare l' apparato, in modo che sia pratico e confortevole l' utilizzo dello stesso e che l' ubicazione del ricetrasmettitore non sia in nessun modo di ostacolo alla guida del veicolo.
  • Page 18 Tabella bande di frequenza Il ricetrasmettitore INTEK M-550 POWER dispone di un avanzato circuito multi-standard programmabile, che consente di programmare la banda di frequenza, i parametri e i modi operativi in conformità con le norme del paese in cui viene utilizzato l’...
  • Page 19 4W, nel rispetto nella normativa vigente. Tale configurazione non è modificabile dall' utente. INTEK declina qualunque responsabilità per modifiche o manomissioni del prodotto, eseguite dall' utente dopo l' acquisto.
  • Page 20: Caratteristiche Tecniche

    Caratteristiche tecniche Caratteristiche tecniche Generali Canali 40 FM (vedere tabella bande di frequenza a pag. 16) Gamma di frequenza 25.315 - 29.105 MHz Controllo di frequenza P.L.L. Temperatura di lavoro -10°/+55°C Tensione di alimentazione 13.2Vdc +/-15% Dimensioni 153 (L) x 50 (A) x 180 (P) mm Peso 940 gr.
  • Page 21: Table Of Restrictions On The Use Of Cb Transceivers

    Table of restrictions on the use of CB transceivers COUNTRY CB Introd. Use restrictions and other comments Settings AUSTRIA Not allowed 40 CH - 4W FM - Individual license is required BELGIUM 40 CH - 1W AM - Individual license is required DENMARK 40 CH - 4W FM - Free use 40 CH - 4W FM - Free use...
  • Page 22: Diagram

    Diagram - II -...
  • Page 23 Diagram - III -...
  • Page 24: Block Diagram

    Block Diagram - IV -...
  • Page 25 Block Diagram - V -...
  • Page 26: Pcb - Main Board & Cpu Board

    PCB - Main Board & CPU Board - VI -...
  • Page 27 PCB - Main Board & CPU Board - VII -...
  • Page 28: Pcb - Echo Board (Echo-550P)

    PCB - ECHO Board (ECHO-550P) - VIII -...
  • Page 29: Notes

    Notes - IX -...
  • Page 30 Notes - X -...
  • Page 31 Notes - XI -...
