Memory Channels - Icom IC-R8500 Instruction Manual

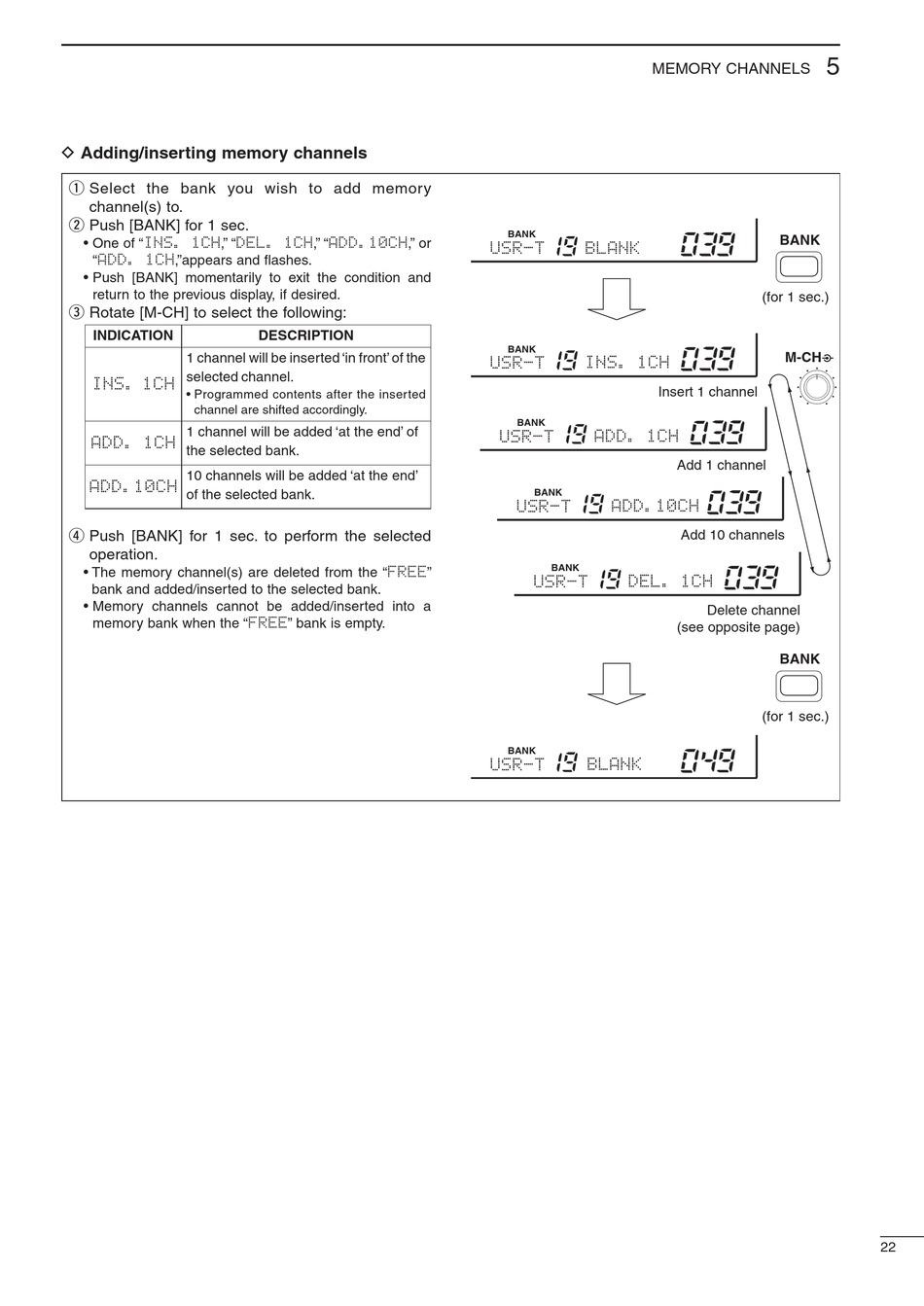

D Adding/inserting memory channels
q Select the bank you wish to add memory
channel(s) to.
w Push [BANK] for 1 sec.
• One of "INS. 1CH," "DEL. 1CH," "ADD.10CH," or
"ADD. 1CH,"appears and flashes.
• Push [BANK] momentarily to exit the condition and
return to the previous display, if desired.
e Rotate [M-CH] to select the following:
INDICATION
1 channel will be inserted 'in front' of the
selected channel.
INS. 1CH
• Programmed contents after the inserted
channel are shifted accordingly.
1 channel will be added 'at the end' of
ADD. 1CH
the selected bank.
10 channels will be added 'at the end'
ADD.10CH
of the selected bank.
r Push [BANK] for 1 sec. to perform the selected
operation.
• The memory channel(s) are deleted from the "FREE"
bank and added/inserted to the selected bank.
• Memory channels cannot be added/inserted into a
memory bank when the "FREE" bank is empty.
DESCRIPTION

MEMORY CHANNELS

BANK
USR-T BLANK
BANK
USR-T INS. 1CH
Insert 1 channel
BANK
USR-T ADD. 1CH
BANK
ADD.10CH
USR-T
BANK
USR-T DEL. 1CH
BANK
USR-T BLANK
5
BANK
(for 1 sec.)
M-CH
Add 1 channel
Add 10 channels
Delete channel
(see opposite page)
BANK
(for 1 sec.)
22
