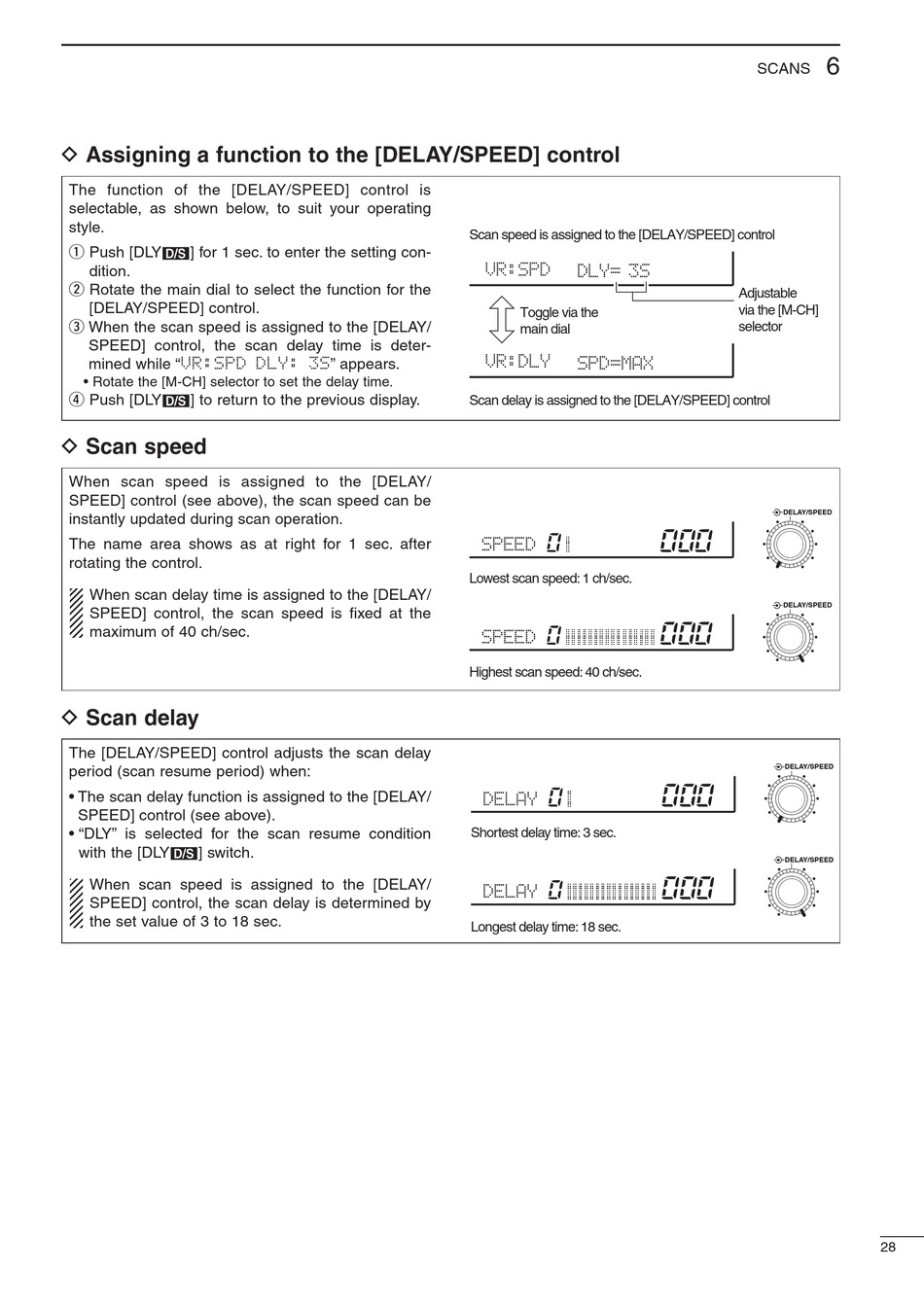

Scan - Icom IC-R8500 Instruction Manual

D Assigning a function to the [DELAY/SPEED] control
The function of the [DELAY/SPEED] control is
selectable, as shown below, to suit your operating
style.
q Push [DLY ] for 1 sec. to enter the setting con-
dition.
w Rotate the main dial to select the function for the
[DELAY/SPEED] control.
e When the scan speed is assigned to the [DELAY/
SPEED] control, the scan delay time is deter-
mined while "VR:SPD DLY: 3S" appears.
• Rotate the [M-CH] selector to set the delay time.
r Push [DLY ] to return to the previous display.
D Scan speed
When scan speed is assigned to the [DELAY/
SPEED] control (see above), the scan speed can be
instantly updated during scan operation.
The name area shows as at right for 1 sec. after
rotating the control.
When scan delay time is assigned to the [DELAY/
SPEED] control, the scan speed is fixed at the
maximum of 40 ch/sec.
D Scan delay
The [DELAY/SPEED] control adjusts the scan delay
period (scan resume period) when:
• The scan delay function is assigned to the [DELAY/
SPEED] control (see above).
• "DLY" is selected for the scan resume condition
with the [DLY ] switch.
When scan speed is assigned to the [DELAY/
SPEED] control, the scan delay is determined by
the set value of 3 to 18 sec.
Scan speed is assigned to the [DELAY/SPEED] control
VR:SPD
DLY= 3S
Toggle via the
main dial
VR:DLY
SPD=MAX
Scan delay is assigned to the [DELAY/SPEED] control
SPEED
Lowest scan speed: 1 ch/sec.
SPEED
Highest scan speed: 40 ch/sec.
DELAY
Shortest delay time: 3 sec.
DELAY
Longest delay time: 18 sec.
6
SCANS
Adjustable
via the [M-CH]
selector
DELAY/SPEED
DELAY/SPEED
DELAY/SPEED
DELAY/SPEED
28
