GEP-2450

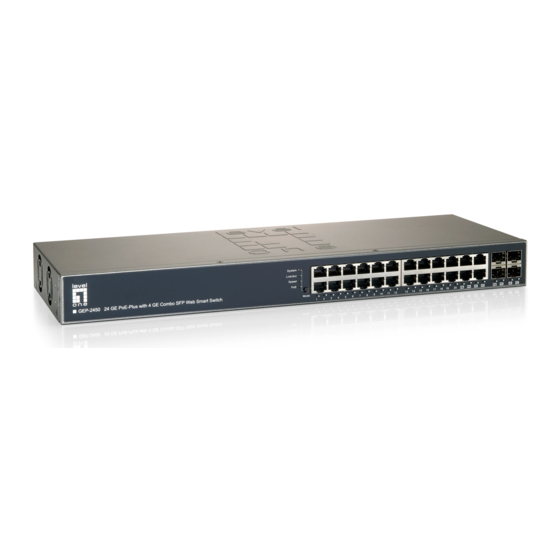

24 GE PoE-Plus with 4 GE Combo SFP
Web Smart Switch
User Manual
Rev 1.0
Dec 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEP-2450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LevelOne GEP-2450

Summary of Contents for LevelOne GEP-2450

  • Page 1 GEP-2450 24 GE PoE-Plus with 4 GE Combo SFP Web Smart Switch User Manual Rev 1.0 Dec 2012...
  • Page 3 The information in this document is subject to change without notice. Unless the explicit written permission of Manufacture Corporation, this document in whole or in part shall not be replicated or modified or amended or transmitted, in any from, or by any means manual, electric, electronic, electromagnetic, mechanical, optical or otherwise for any purpose.
  • Page 4 DISCLAIMER. EXCEPT AS PROVIDED ABOVE, THE SOFTWARE IS PROVIDED “AS IS ” AND MANMANUFACTURE AND ITS LICENSORS MAKE NO WARRANTIES, EXPRESS OR IMPLIED, WITH REPSECT TO THE SOFTWARE AND DOCUMENTAITON. MANUFACTURE AND ITS LICENSORS DISCLAIM ALL OTHER WARRANTIES, INCLUSIVE OF WITHOUT LIMITATION, IMPLIED WARRANTIES OR MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.

  • Page 5: Table Of Contents

    Table of Contents ..........................AUTION ..................LECTRONIC MISSION OTICES : ......................... ARNING INTRODUCTION ....................... 2 1-1. O 24-P ..........2 VERVIEW OF MART WITCH 1-2. C ........................3 HECKLIST 1-3. F ........................3 EATURES 1-4. V 24-P E POE W ............
  • Page 6 4-4-2. Factory Default ....................95 4-4-3. Software Upgrade ....................96 4-4-4. Configuration File Transfer ................97 4-4-5. Logout ........................98 5. MAINTENANCE ......................99 5-1. R ................99 ESOLVING ONDITION 5-2. Q&A ..........................99 APPENDIX A TECHNICAL SPECIFICATIONS ............100...

  • Page 7: Caution

    Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: • Touch the metal chassis of your computer to ground the static electrical charge before you pick up the circuit device.

  • Page 8: Warning

    Warning: • Self-demolition on Product is strictly prohibited. Damage caused by self- demolition will be charged for repairing fees. • Do not place product at outdoor or sandstorm. • Before installation, please make sure input power supply and product specifications are compatible to each other.

  • Page 9: User Manual

    User Manual About this user’s manual This user’s manual provides instructions on how to install your Web Smart Switch. This guide also covers management options and detailed explanation about hardware and software functions. Overview of this user’s manual  Chapter 1 “Introduction” describes the features of 24-port Gigabit Web Smart PoE Switch ...

  • Page 10: Introduction

    1. Introduction 1-1. Overview of 24-Port GbE Web Smart PoE Switch The 24-port Gigabit Web Smart PoE Switch is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch has 20 10/100/1000Mbps TP ports and 4 Gigabit TP/SFP transceiver slots, It supports http and SNMP interface for switch management.

  • Page 11: Checklist

    AC wiring and reducing Installation Cost. It was compliant with IEEE802.3af standard. It provides the endpoint with 48VDC power through RJ-45 pin 1, 2, 3, 6. Others the GEP-2450 provides 185 watts of total power (up 7.7 watts for 24 ports) 1-2.
  • Page 12 • Full-duplex flow control (IEEE802.3x) and half-duplex backpressure • Extensive front-panel diagnostic LEDs; System: Power, TP Port1-24: LINK/ACT, PoE,10/100/1000Mbps, SFP Port 21,22,23,24: SFP(LINK/ACT) Management • • Supports concisely the status of port and easily port configuration • Supports per port traffic monitoring counters •...

  • Page 13: View Of 24-Port Gbe Poe Web Smart Switch

    1-4. View of 24-Port GbE POE Web Smart Switch Fig. 1-1 Full View of 24-PORT GBE WEB SMART PoE SWITCH 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 24 TP Gigabit Ethernet PoE ports and 4 SFP fiber ports for optional removable modules on the front panel of the switch.

  • Page 14: User Interfaces On The Rear Panel

    • LED Indicators Color Function System LED POWER Green Lit when +3.3V power is coming up 10/100/1000Ethernet TP Port 1 to 20 LED Lit when connection with remote device is good LINK/ACT Green Blinks when any traffic is present Lit Green when TP link on 1000Mbps speed Green/ Yellow/ Lit Yellow when TP link on 10/100Mbps speed...

  • Page 15: View Of The Optional Modules

    1-5. View of the Optional Modules In the switch, Port 21~24 include two types of media --- TP and SFP Fiber (LC, BiDi-SC…); they support 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-speed connection expansion;...

  • Page 16: Installation

    2. Installation 2-1. Starting 24-Port GbE Web Smart PoE Switch Up This section will give users a quick start for: Hardware and Cable Installation - Management Station Installation - Software booting and configuration 2-1-1. Hardware and Cable Installation At the beginning, please do first: ⇒...
  • Page 17 ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.

  • Page 18: Cabling Requirements

    2-1-2. Cabling Requirements To help ensure a successful installation and keep the network performance good, please take a care on the cabling requirement. Cables with worse specification will render the LAN to work poorly. 2-1-2-1. Cabling Requirements for TP Ports ⇒...
  • Page 19 • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may up-link the switches unlimitedly. In practice, the network extension (cascading levels & overall diameter) must follow the constraint of the IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which the limitations are the timing requirement from physical signals defined by 802.3 series specification of Media Access Control (MAC) and PHY, and timer from some...
  • Page 20 Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-2) *The switch image is sample only Fig. 2-2 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
  • Page 21 Case 2b: Port-based VLAN (See Fig.2-4). *The switch image is sample only Fig. 2-4 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.

  • Page 22: Configuring The Management Agent Of 24-Port Gbe Web Smart Switch

    2-1-3. Configuring the Management Agent of 24-Port GbE Web Smart Switch In the way of web, user is allowed to startup the switch management function. Users can use any one of them to monitor and configure the switch. You can touch them through the following procedures.

  • Page 23: Ip Address Assignment

    Fig. 2-7 the Login Screen for Web 2-1-4. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
  • Page 24 Class B: IP address range between 128.0.0.0 and 191.255.255.255. Each class B network has a 16-bit network prefix followed 16-bit host address. There are 16,384 (2^14)/16 networks able to be defined with a maximum of 65534 (2^16 –2) hosts per network. Bit # 01 2 15 16...
  • Page 25 of course, the last byte is the host number. Not all IP address is available in the sub-netted network. Two special addresses are reserved. They are the addresses with all zero’s and all one’s host number. For example, an IP address 128.1.2.128, what IP address reserved will be looked like? All 0s mean the network itself, and all 1s mean IP broadcast.
  • Page 26 autonomous network. So it owns a network IP address which may looks like 168.1.2.0. With the subnet mask, a bigger network can be cut into small pieces of network. If we want to have more than two independent networks in a worknet, a partition to the network must be performed.

  • Page 27: Typical Applications

     Peer-to-peer application is used in two remote offices (See Fig. 2-11)  Office network(See Fig. 2-12) Central Site GEP-2450 GEP-2450 GEP-2450 GEP-2450 Fig. 2-10 Network Connection between Remote Site and Central Site Fig. 2-10 is a system wide basic reference connection diagram. This diagram...
  • Page 28 Fig. 2-11 Peer-to-peer Network Connection Fig. 2-12 Office Network Connection...

  • Page 29: Basic Concept And Management

    3. Basic Concept and Management This chapter will tell you the basic concept of features to manage this switch and how they work. 3-1. What’s the Ethernet Ethernet originated and was implemented at Xerox in Palo Alto, CA in 1973 and was successfully commercialized by Digital Equipment Corporation (DEC), Intel and Xerox (DIX) in 1980.

  • Page 30: Logical Link Control (Llc)

    IEEE 802.2 LLC Data Link Layer IEEE802.3 CSMA/CD MAC IEEE 802.3 PLS Physical Layer ANSI X3T9.5 PMD IEEE 802.3 Fiber Coaxial/STP/UTP This above diagram shows the Ethernet architecture, LLC sub-layer and MAC sub-layer, which are responded to the Data Link layer, and transceivers, which are responded to the Physical layer in OSI model.
  • Page 31 comprises four fields, DSAP, SSAP, Control and Information. The DSAP address field identifies the one or more service access points, in which the I/G bit indicates it is individual or group address. If all bit of DSAP is 1s, it’s a global address. The SSAP address field identifies the specific services indicated by C/R bit (command or response).

  • Page 32: Media Access Control (Mac)

    3-3. Media Access Control (MAC) 3-3-1. MAC Addressing Because LAN is composed of many nodes, for the data exchanged among these nodes, each node must have its own unique address to identify who should send the data or should receive the data. In OSI model, each layer provides its own mean to identify the unique address in some form, for example, IP address in network layer.
  • Page 33 Type/Length Data Pad bit if any 46-1500 Table. 3-4 Ethernet frame structure Preamble (PRE) —The PRE is 7-byte long with alternating pattern of ones and zeros used to tell the receiving node that a frame is coming, and to synchronize the physical receiver with the incoming bit stream. The preamble pattern is: 10101010 10101010 10101010 10101010 10101010 10101010 10101010...
  • Page 34 redundancy check (CRC) value, and is a check sum computed with DA, SA, through the end of the data field with the following polynomial. It is created by the sending MAC and recalculated by the receiving MAC to check if the packet is damaged or not. How does a MAC work? The MAC sub-layer has two primary jobs to do: 1.
  • Page 35 Ethernet MAC transmits frames in half-duplex and full-duplex ways. In half- duplex operation mode, the MAC can either transmit or receive frame at a moment, but cannot do both jobs at the same time. As the transmission of a MAC frame with the half-duplex operation exists only in the same collision domain, the carrier signal needs to spend time to travel to reach the targeted device.
  • Page 36 Parameter 10Base 100Base 1000Base value/LAN Max. collision 100 meters for UTP 100 meters for UTP domain DTE to 100 meters 412 meters for fiber 316 meters for fiber Max. collision domain with 2500 meters 205 meters 200 meters repeater Slot time 512 bit times 512 bit times 512 bit times...

  • Page 37: Flow Control

    3-4. Flow Control Flow control is a mechanism to tell the source device stopping sending frame for a specified period of time designated by target device until the PAUSE time expires. This is accomplished by sending a PAUSE frame from target device to source device.
  • Page 38 Frame Reception In essence, the frame reception is the same in both operations of half duplex and full duplex, except that full-duplex operation uses two buffers to transmit and receive the frame independently. The receiving node always “listens” if there is traffic running over the medium when it is not receiving a frame.
  • Page 39 the following table. Bits 15-13 User Priority 7-0, 0 is lowest priority CFI (Canonical Format Indicator) 1: RIF field is present in the tag header Bit 12 0: No RIF field is present VID (VLAN Identifier) 0x000: Null VID. No VID is present and only user Bits 11-0 priority is present.

  • Page 40: How Does A Switch Work

    3-5. How does a switch work? The switch is a layer 2 Ethernet Switch equipped with 24 Gigabit Ethernet ports and 4 optional modules which support Gigabit Ethernet or 100M Ethernet. Each port on it is an independent LAN segment and thus has 26 LAN segments and 26 collision domains, contrast to the traditional shared Ethernet HUB in which all ports share the same media and use the same collision domain and thus limit the bandwidth utilization.
  • Page 41 Fig.3-6 Collision Domain Extended Distance Limitations: The diameter of a half-duplex LAN segment is determined by its maximum propagation delay time. For example, in 10M LAN, the most distance of a LAN segment using yellow cable is 2500 meters and 185 meters when using coaxial cable.
  • Page 42 Fig. 3-7 How does a switch operate? A Layer 2 switch uses some features of the Data Link layer in OSI model to forward the packet to the destination port(s). Here we introduce some important features of a switch and how they work. MAC address table When a packet is received on a port of switch, the switch first checks if the packet good or bad and extracts the source MAC address (SA) and destination...
  • Page 43 chips may support different schedule algorithms. Most common schedulers are: FCFS: First Come First Service. Strictly Priority: All High before Low. Weighted Round Robin: Set a weight figure to the packet with a priority level, say 5-7, and next, set another weight to the packet with a priority level, say 2-4 and so on.

  • Page 44: Virtual Lan

    3-6. Virtual LAN What is a VLAN? It is a subset of a LAN. Before we discuss VLAN, we must understand what LAN is. In general, a LAN is composed of different physical network segments bridged by switches or bridges which attach to end stations in the same broadcast domain.
  • Page 45 Fig. 3-9 Now we apply VLAN technology to configure the system shown as the figure above. We can partition the users into the different logical networks which have their own broadcast domain. The traffic will not disturb among these logical networks. The users 1x (x denotes a ~ d) are members of VLAN 1.
  • Page 46 Other VLAN technologies not mentioned above are MAC-based VLAN, IP- based VLAN and so on. Terminology Tagged Frame: A frame, carrying a tag field following the source MAC address, is four bytes long and contains VLAN protocol ID and tag control information composed of user priority, Canonical Format Indicator (CFI) and optional VLAN identifier (VID).
  • Page 47 Port VLAN Identifier: VLAN identifier of a port. It also can be referred to as PVID. When an untagged frame or a priority-tagged frame is received, the frame will be inserted the PVID of that port in the VLAN tag field. The frame with VID assigned by a port is called PVID.
  • Page 48 Independent VLAN Learning (IVL): It specifies the mode how to learn MAC address. For a specified VLAN, it will use an independent filtering database (FID) to learn or look up the membership information of the VLAN and decide where to go. Shared VLAN Learning (SVL): It specifies the mode how to learn MAC address.
  • Page 49 Name Port Members Marketing 1,2,3,4,5 Service 6,7,20,21,22 Sales 8,9,10,11,12,13,14,15,16 Administration 17,18,19,23,24 Table 3-5 Next, assigns IP address to each VLAN. Usually, we use 10.x.x.x as internal IP block. Because there are total four VLANs in the network, we must assign 4 IP blocks to each of them.

  • Page 50: Operation Of Web-Based Management

    4. Operation of Web-based Management This chapter would introduce how to manage your Web Smart Switch and how to configure the 10/100/1000Mbps TP Ports and Gigabit SFP Fiber ports on the switch via web user interfaces. Web Smart Switch provides 20 fixed Gigabit Ethernet TP ports and 4 optional Gigabit dual media ports.

  • Page 51: Web Management Home Overview

    4-1. Web Management Home Overview After login, System Information would be displayed as Fig. 4-2 illustrated. This page lists default values and shows you the basic information of the switch, including “Switch Status”, “TP Port Status”, “Fiber Port Status”, “Aggregation”, “VLAN”, “Mirror”, “SNMP”, and “Maximum Packet Length”.
  • Page 52 performed. The following list is the main function tree for web user interface. Root Configuration Monitoring Maintenance...

  • Page 53: Configuration

    4-2. Configuration Configuration includes the following functions: System Configuration, Ports Configuration, VLAN Mode Configuration, VLAN Group Configuration, Aggregation, LACP, RSTP, 802.1X, IGMP Snooping, Mirror, QoS, Filter, Rate Limit, Storm Control and SNMP. Configuration System Information Ports Configuration VLAN Mode Configuration VLAN Group Configuration VLAN Isolation Aggregation...

  • Page 54: System Information

    4-2-1. System Information System configuration is one of the most important functions. Without a proper setting, network administrator would not be able to manage the device. The switch supports manual IP address setting. Fig. 4-3 Function name: System Configuration Function description: Show system description, firmware version, hardware version, MAC address, serial number, active IP address, active subnet mask, active gateway, DHCP...
  • Page 55 server and Lease time left. Set device name, DHCP enable, fallback IP address, fallback subnet mask, fallback gateway, management VLAN, password and inactivity timeout. Parameter description: System Description: The simple description of this switch. Firmware Version: The firmware version of this switch. Hardware Version: The hardware version of this switch.
  • Page 56 Subnet mask is made for the purpose to get more network address because any IP device in a network must own its IP address, composed of Network address and Host address, otherwise can’t communicate with other devices each other. But unfortunately, the network classes A, B, and C are all too large to fit for almost all networks, hence, subnet mask is introduced to solve this problem.
  • Page 57 Default: 0...

  • Page 58: Port Configuration

    4-2-2. Port Configuration Function name: Port Configuration Function description: Port Configuration is applied for the settings of the ports on the switch. By this function, you can set or reset the values for Mode and Flow Control. Others you could set the power saving mode for switch power consumption. Fig.
  • Page 59 Parameter description: Enable Jumbo Frames: This function support jumbo frames of up to 9600 bytes, Just tick the check box () to enable it. Default: disable Perfect Reach/Power Saving Mode: This function supports Power Saving and perfect Reach, Just select with the Full/ Link-up/ Link-down/ Disable Default: disable Link:...

  • Page 60: Vlan Mode Configuration

    4-2-3. VLAN Mode Configuration Web Smart Switch supports Port-based VLAN and Tag-based VLAN (802.1q). Its VLAN mode supports 10 active VLANs and the available VLAN ID range is from 1~4094. VLAN configuration is used to divide a LAN into smaller ones. With proper configuration, you can gain not only improved security and increased performance, but also save a lot of VLAN management effort.

  • Page 61: Vlan Group Configuration

    4-2-4. VLAN Group Configuration Function name: Tag-Based VLAN Configuration (Tag based VLAN mode) Function description: The VLAN membership configuration for the selected switch can be monitored and modified here. Up to 4094 VLANs are supported. This page allows for adding and deleting VLANs as well as adding and deleting port members of each VLAN.
  • Page 62 Parameter description: VID: VLAN identifier. Each tag-based VLAN group has a unique VID. It appears only in tag-based mode. Member: In modify function this is used to enable or disable if a port is a member of the new added VLAN, “Enable” means it is a member of the VLAN. Just tick the check box () beside the port x to enable it.
  • Page 63 Function name: Port-Based VLAN Configuration (Port-based VLAN mode) Function description: It shows the information of VLAN Groups, and allows administrators to maintain them by modifying and deleting each VLAN group. User also can add a new VLAN group by inputting a new VLAN name and VLAN ID. If you are in port-based VLAN, it will just show the ID、Member of the existed port-based VLAN group.
  • Page 64 Fig. 4-7 Add or Remove VLAN Member Parameter description: ID (Group ID): When you want to edit a VLAN group, you must select the Group ID field. Then, you will enter Tag Base VLAN Group Setting or Port Base VLAN Group Setting page, which depends on your VLAN mode selection.

  • Page 65: Vlan Port Isolation Configuration

    4-2-5. VLAN Port Isolation Configuration Function name: Port Isolation Configuration Function description: Port Isolation provides for an apparatus and method to isolate ports on layer 2 switches on the same VLAN to restrict traffic flow. The apparatus comprises a switch having said plurality of ports, each port configured as a protected port or a non-protected port.

  • Page 66: Aggregation

    4-2-6. Aggregation The Aggregation (Port Trunking) Configuration is used to configure the settings of Link Aggregation. You can bundle ports by same speed, MAC, and full duplex to be a single logical port, thus the logical port can aggregate the bandwidth of these ports.

  • Page 67: Igmp Snooping

    4-2-7. IGMP Snooping Function name: IGMP Snooping Configuration Function description: IGMP Snooping lets administrators configure a switch to constrain multicast traffic by listening to (IGMP). After finishing the Internet Group Management Protocol settings, please press <Apply> button to start up the function. Fig.
  • Page 68 Default: enable IGMP Querying Enabled: ) After IGMP Enabled function start up then user can tick the check box ( enable this function. Default: enable...

  • Page 69: Mirroring Configuration

    4-2-8. Mirroring Configuration Function name: Mirror Configuration Function description: Mirror Configuration is provided to monitor the traffic in the network. This switch supports one-port mirror multi-ports. For example, we assume that Port A and Port B are Source Ports, and Port C is Mirror Port respectively, thus, the traffic passing through Port A and Port B will be copied to Port C for monitor purpose.

  • Page 70: Snmp

    4-2-9. SNMP Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices. It is a protocol used to govern the transfer of information between SNMP manager and agent and traverses the Object Identity (OID) of the management Information Base (MIB), described in the form of SMI syntax.
  • Page 71 Parameters description: SNMP enable: The term SNMP enable here is used for the activation or de-activation of SNMP. Default is “Disable”. Get/Set/Trap Community: Community name is used as password for authenticating if the requesting network management unit belongs to the same community group.

  • Page 72: Loop Detection

    4-2-10. Loop Detection Function name: Loop Detection Configuration Function description: The loop detection is used to detect the presence of traffic. When switch receives packet’s (looping detection frame) MAC address the same as oneself from port, show Loop detection happens. The port will be locked when it received the looping detection frames.
  • Page 73 Parameter description: Mode: Controls whether Loop is enabled (as a whole). Detection Unlock Time: The period (in seconds) for which a port will be kept disabled in the event of a loop is detected (and the port action is to shut down the port). State: Show the status on the port.

  • Page 74: Broadcast Strom Protection

    4-2-11. Broadcast Strom Protection Function name: Broadcast Strom Protection configuration Function description: When the broadcast packets received by the switch exceed the threshold configured, the port will be blocked for a period of time which can be set. After a configured time, the switch will detect whether the broadcast packets received on the port still exceed the threshold.
  • Page 75 Fig. 4-15 Rate Limit Configuration...
  • Page 76 Parameter description: Mode: Controls whether Broadcast Strom Protection is enabled (as a whole). Packet Per Second: It is a threshold. When the broadcast packet traffic in a second is higher than the threshold configured, the Broadcast Strom Protection enable. Unlock Time: The period (in seconds) for which a port will be kept disabled in the event of a loop is detected (and the port action is to shut down the port).

  • Page 77: Poe

    4-2-12. PoE Power Over Ethernet (PoE) technology allows IP telephones, wireless LAN access points, and other powered devices (PDs) to receive power and transfer data over existing LAN cabling. Function name: PoE Configuration Function description: In PoE Port Management function, user can configure the settings about PoE. The switch complies with IEEE 802.3af protocol and be capable of detecting automatically that whether the device linked to the port on the switch is PD (Powered Device) or not.
  • Page 78 Parameter description: Status: Include “Normal” or “Active” two kinds of status. The former means the port is ready to link and supply the power to the PD at any time. The latter means the port is in the condition of supplying the power. State: “Enable”...
  • Page 79 Function name: PoE Status Function description: Display the information about the PoE status. Fig. 4-17 PoE (Power over Ethernet) Status Parameter description: Vmain: The volt is supplied by the PoE. Imain: The sum of the current that every port supplies. Pconsume: The sum of the power that every port supplies.
  • Page 80 Power Limit: The maximal power that the switch can supply (Read Only). Temperature: The temperature of the chip on PoE. Port No: Port number. Port On: Show whether the port is supplying the power to the PD or not. AC Disconnect Port Off: Port is turned off due to the AC Disconnect function.
  • Page 81 Port is turned off due to the DC Disconnect function. Overload Port Off: The switch will stop supplying the power to the port due to the power required by the PD that is linked to the port on the switch excesses the Class setting of the PD. Short Circuit Port Off: The switch will stop supplying the power to the port if it detects that the PD linked to the port is short circuit.
  • Page 82 Function name: PoE Auto Checking: Function description: The function is using for PD auto checking. It can allow user to control the PoE function by using the ping command, in order to turn on or off any PD which connect with port assign.
  • Page 83 Ping IP Address: To set up the PD’s IP address which you need to check it is alive. Interval Time: To set up the spacing interval time to do ping check, the default value is 30 seconds. The available range is 10 to 120 seconds. Retry Time: To set up the number of times for switch to check PD is alive.
  • Page 84 is 3. The available range is 1 to 5. Failure Log: To display the PD’s Ping result and log. Note down “Ping Check” a result of movement after starting. The error means switch to ping the PD is failure or total means total switch to do ping frequency.
  • Page 85 Function name: PoE Scheduling Function description: This page allows the user to make a perfect schedule of PoE power supply. PoE Scheduling not only makes PoE management easier but also saves more energy. Fig. 4-19 PoE Scheduling...
  • Page 86 Parameter description: PoE on: Logical port which to configure power supply. Schedule mode: Enable / Disable PoE Scheduling. Port: Local port number. Schedule mode: This is the showing the PoE Scheduling mode of logical port, √ is enable; blank is disable. Group setting: Configure multiple logical ports as same configuration.

  • Page 87: Qos(Quality Of Service) Configuration

    4-2-13. QoS(Quality of Service) Configuration offers powerful QoS function. This function supports VLAN-tagged switch priority that can make precedence of 8 priorities, and DSCP(Differentiated Services Code Point) on Layer 3 of network framework. Fig. 4-20 QoS Configuration Function name: QoS Configuration Function description: While setting QoS function, please select QoS Mode in drop-down menu at first.
  • Page 88 mapping to Queue medium, Priority 5 is mapping to Queue medium, Priority 6 is mapping to Queue high, and Priority 0 is mapping to Queue high. Fig. 4-21 802.1p Setting Function name: DSCP QoS Mode Function description: In the late 1990s, the IETF redefined the meaning of the 8-bit SERVICE TYPE field to accommodate a set of differentiated services (DS).
  • Page 89 Queue (low, normal, medium, high). In default, Priority 0~63 are mapping to Queue high. Fig. 4-22 DSCP Setting...

  • Page 90: Monitoring

    4-3. Monitoring There are six functions contained in the monitoring function. Monitoring Statistics Overview Detailed Statistics IGMP Status PoE Status Ping...

  • Page 91: Statistics Overview

    4-3-1. Statistics Overview Function name: Statistics Overview for all ports Function description: The section describes to the Port statistics information and provides overview of general traffic statistics for all switch ports. Fig. 4-23 Statistics Overview for all ports Parameter description: Tx/Rx Bytes: The number of received and transmitted bytes per port.

  • Page 92: Detailed Statistics

    4-3-2. Detailed Statistics Function name: Detailed Statistics Function description: Display the detailed counting number of each port’s traffic. In the Fig. 4-21, the window can show all counter information each port at one time. Fig. 4-24 Detailed Statistics for each port Parameter description: Rx Packets: The counting number of the packet received.
  • Page 93 The counting number of the packet transmitted. TX Octets: Total transmitted bytes. Tx High Priority Packets: Number of Tx packets classified as high priority. Tx Low Priority Packets: Number of Tx packets classified as low priority. Tx Broadcast: Show the counting number of the transmitted broadcast packet. Tx Multicast: Show the counting number of the transmitted multicast packet.
  • Page 94 Tx 512-1023 Bytes: Number of 512 ~ 1023-byte frames in good and bad packets transmitted. Tx 1024-Bytes: Number of 1024-max_length-byte frames in good and bad packets transmitted. Rx CRC/Alignment: Number of Alignment errors and CRC error packets received. Rx Undersize: Number of short frames (<64 Bytes) with valid CRC.

  • Page 95: Igmp Status

    4-3-4. IGMP Status Function name: IGMP Status Function description: Display IGMP status. In Fig. 4-22, the window shows VLAN ID for each multicast group. Fig. 4-25 IGMP Status Parameter description: VLAN Id: Show VLAN Id for each multicast group. Querier: Show the group membership queries status.
  • Page 96 Time field in the query, for each group to which it belongs. It Calculate the number of times of IGMPV3 report. V2 Leaves: When a host leaves a group, it sends a leave group membership message to multicast routers on the network, it show the leaves number.

  • Page 97: Poe Status

    4-3-5. PoE Status Function name: PoE State Function description: Display the information about the PoE status. Fig. 4-26 PoE (Power over Ethernet) Configuration Parameter description: Power Reservation: The watts are supplied by the PoE./ The maximal power that the switch can supply (Read Only).
  • Page 98 Class 0: Max. power 15.4 W Class 1: Max. power 4.0 W Class 2: Max. power 7.0 W Class 3: Max. power 15.4 W Class 4: Max. power 30.0 W P owe r: The Power Used shows how much power the PD currently is using. Curre nt Us e d The Power Used shows how much current the PD currently is using.

  • Page 99: Ping Status

    4-3-6. Ping Status Function name: Ping Status Function description: To set up target IP address for ping function and display ping status. In Fig. 4- 27, the window shows the ping information. Fig. 4-27 Ping Parameter description: Ping Parameters: Target IP address: Set up a Target IP address to ping.
  • Page 100 Show the active target IP address. Status: Show the result of the ping status. Received replies: Show the received replies number of times. Request timeouts: Show the timeout of request. Average Response times (In ms): Show the average response time in milliseconds.

  • Page 101: Maintenance

    4-4. Maintenance There are five functions contained in the maintenance function. Maintenance Warm Restart Factory Default Software Upgrade Configuration File Transfer Logout...

  • Page 102: Warm Restart

    4-4-1. Warm Restart Web Smart Switch offers many approaches to reboot your switch, such as: power up, hardware reset and software reset. You can press RESET button in the front panel of your switch to reset the device and to retrieve default settings .

  • Page 103: Factory Default

    4-4-2. Factory Default Function name: Factory Default Function description: Factory Default provides the function to retrieve default settings and replace current configuration. Except the IP address setting, all settings will be restored to the factory default values when “Factory Default” function is performed.

  • Page 104: Software Upgrade

    4-4-3. Software Upgrade Function name: Software Upgrade Function description: You can just click Browse button to retrieve the file you want in your system to upgrade your switch. Fig. 4-30 Software Upgrade...

  • Page 105: Configuration File Transfer

    4-4-4. Configuration File Transfer Function name: Configuration File Transfer Function description: You can backup your switch’s configuration file into your computer folder in case accident happens. In addition, uploading backup configuration file into a new or a crashed switch can save much time and avoid mistakes. Fig.

  • Page 106: Logout

    4-4-5. Logout In addition to auto logout function we just mentioned in system configuration section, the switch also allows administrators to logout manually by Logout function. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.

  • Page 107: Maintenance

    5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on  The cable may not be the correct type or is faulty  The installed building premise cable is faulty ...

  • Page 108: Appendix A Technical Specifications

    Appendix A Technical Specifications Features • 20 (10/100/1000Mbps) Gigabit Ethernet (TP) switching ports are compliant with IEEE802.3, 802.3u, 802.3z and 802.3ab. • 4 Gigabit TP/SFP fibers are dual media ports with auto detected function. • Non-blocking store-and-forward shared-memory Web-Smart switched. •...
  • Page 109 Hardware Specifications  Standard Compliance: IEEE802.3/802.3ab / 802.3z / 802.3u / 802.3x  Network Interface: Configuration Mode Connector Port 10/100/1000Mbps Gigabit TP 1 - 20 NWay TP (RJ-45) 21 - 24 1000 FDX *SFP 1000Base-SX Gigabit Fiber (Option) 21 - 24 1000 FDX *SFP 1000Base-LX Gigabit Fiber...
  • Page 110  Humidity 10% to 90%  Dimensions 44(H) × 442(W) × 170.3(D) mm GEP-2450  Comply with FCC Part 15 Class A & CE Mark Approval Management Software Specifications Auto-negotiation support on 10/100Base-TX ports, Web browser can set transmission speed...
