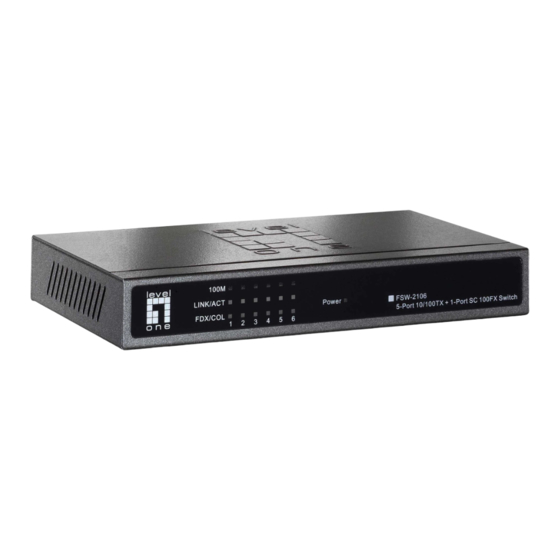

LevelOne SoHoCon FSW-2106 Specifications

Provides Wire-speed, Non-blocking Performance - LevelOne FSW-2106 Fast
Ethernet Switch is a wire-speed, non-blocking networking device that
provides 5 ports 10/100 Mbps Fast Ethernet and 1 port SC Fiber connections.
This switch combines dynamic memory allocation with a store-and-forward
switching architecture to ensure that the buffer is effectively allocated for
each port. It also controls the data flow between transmit and receive
nodes to guarantee against all possible packet loss.
Integrated Network
operations to effectively double bandwidth to a throughtput of 200Mbps for
maximun performance. All Fast Ethernet ports support Auto-MDIX allowing
uplinking to another switch with either cross-over or straight cable. The fiber
port with SC interface allow users to extend the network connection
distance or to integrate other advanced solutions in the future without
further investment.
Easy Configuration, Internal Power Switch--LevelOne FSW-2106 Fast Ethernet
switch is "Plug-&-Play". It does not require software configuration. Users can
immediately use any of the features of this product simply by attaching the
cables and turning on the power.
equipped with a full range of LEDs to help you monitor and troubleshoot
problems on your network.
Compact Size Design --This unit is compact specially designed to fit on the
desktop or in other space-limited locations. The FSW-2106 switch provides an
ideal solution for businesses that crave a reliable network to exchange large
data files and multimedia information with bandwidth-starving workgroups,
departments, and offices.

Key Features

Provides 5 x 10/100Mbps + 1 x SC fiber connections
Complies IEEE 802.3 10Base-T, 802.3u 100Base-T,
100Base-FX and 802.3x flow control
Compact size design
Wire-speed and non-blocking forwarding rate
Store –and-forward switching ensures error-free
transmission
2K MAC address table
SohoCon_FSW-2106
5-port 10/100Mbps + 1-port SC Fiber Switch
Connection-- The FSW-2106
For instant error detection, this switch is
features full-duplex
Auto MDI/MDIX on all ports
N-way Auto-negotiation on all ports
Full-duplex IEEE802.1x flow control
Half-duplex back pressure flow control
Plug-and-Play, nothing to configure
LEDs on front panel for easy access and real time
viewing status of switch
one world_one brand_one level_
FSW-2106
