Image Acquisition Control
Use Case: Fame Burst Start Trigger On and Frame Start Trigger Off
The frame burst start trigger is on, and the frame burst start trigger source
is set to input line Line 1. The user must apply a frame burst start trigger
signal to Line 1 to make the camera exit the "waiting for frame burst start
trigger" acquisition status. Because the acquisition burst frame count is set
to 3, the camera will re-enter the "waiting for frame burst start trigger"
acquisition status after 3 frames have been acquired.
The frame start trigger is off. The camera will generate frame start trigger
signals internally with no action by the user.
Settings: Acquisition Mode = Continuous
Trigger Mode for the frame burst start trigger = On
Trigger Source for the frame burst start trigger = Line 1
Trigger Activation for the frame burst start trigger = Rising Edge
Acquisition Burst Frame Count = 3
Trigger Mode for the frame start trigger = Off
= a trigger signal generated by the camera internally
= a trigger signal applied by the user
= camera is waiting for a frame burst start trigger signal
= camera is waiting for a frame start trigger signal
= frame exposure and readout
= frame transmission
Acquisition
Start
Command
Executed
Frame Burst Start
Trigger Signal
(applied to Line 1)
Frame Start
Trigger Signal

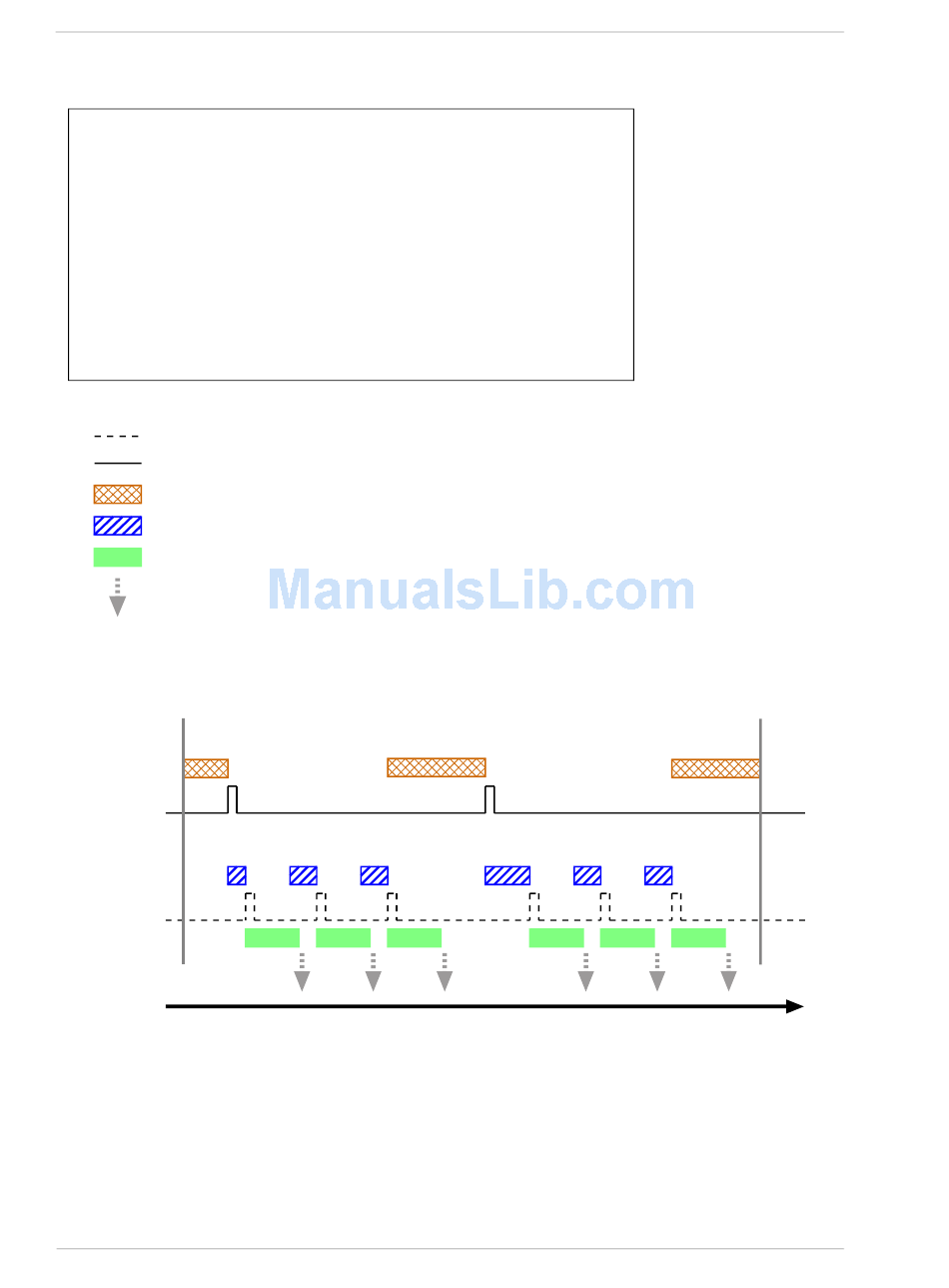

Fig. 71: Use Case 3 - Frame Burst Start Trigger On and Frame Start Trigger Off
152
Time
AW00123402000
Acquisition
Stop
Command
Executed
