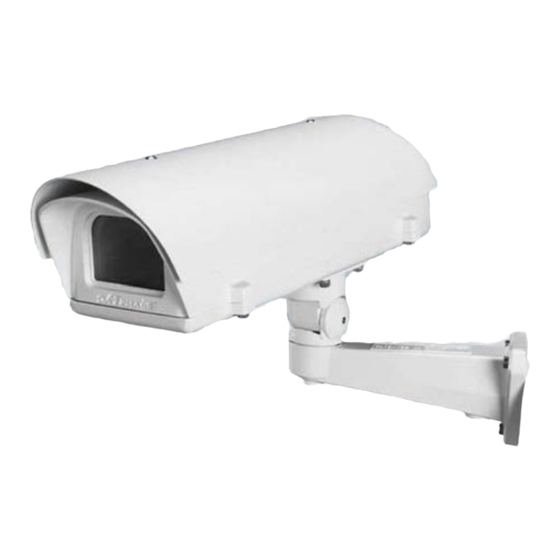

Poe outdoor camera housing with sunshield
Hide thumbs Also See for HOUSING TRANSPAC TPH 4000:

Advertisement

Basler Accessories

Installation Guide

HOUSING TRANSPAC TPH 4000, PoE
Outdoor Camera Housing with Sunshield, IP67
Order Number
2000032064
Document Number: AW001300
Version: 01
Language: 000 (English)
Release Date: 26 March 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOUSING TRANSPAC TPH 4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Basler HOUSING TRANSPAC TPH 4000

  • Page 1: Installation Guide

    Basler Accessories Installation Guide HOUSING TRANSPAC TPH 4000, PoE Outdoor Camera Housing with Sunshield, IP67 Order Number 2000032064 Document Number: AW001300 Version: 01 Language: 000 (English) Release Date: 26 March 2014...
  • Page 2: Contacting Basler Support Worldwide

    Contacting Basler Support Worldwide Europe and the Middle East: Basler AG Phone: +49 4102 463 515 An der Strusbek 60 - 62 Fax: +49 4102 463 599 22926 Ahrensburg Email: support.euope@baslerweb.com Germany The Americas: Basler, Inc. Phone: +1 610 280 0171...
  • Page 3: Purpose Of This Document

    This document is designed to give an overview over the technical specifications of the Transpac TPH 4000 PoE housing. It will also explain how to install a camera inside the housing. This document should be used in conjunction with the respective Basler camera user’s manual. Key Features of the Camera Housing Die-cast aluminum housing, ivory-colored powder coating ...
  • Page 4: Package Contents

    Front window Camera mounting Power Thermostat platform supply unit RJ45 camera PoE+ 12 VDC Heater connector input output Cable gland Fig. 1: Camera Housing (Internal View) Fig. 2: Wall Mount Housing Transpac TPH 4000, PoE...
  • Page 5 1 plastic shoulder washer  1 large steel washer  2 small steel washers  1 L-type hex key  Note that all other parts included in the package are not needed for standard installations. Housing Transpac TPH 4000, PoE...
  • Page 6: Dimensions (In Mm)

    Dimensions (in mm) Fig. 4: Dimensions Housing Maximum dimensions (external): 405 (L) x 150 (W) x 150 (H) Maximum camera mounting space: 260 (L) x 90 (W) x 70 (H) 82.80 Fig. 5: Dimensions Wall Mount Base Housing Transpac TPH 4000, PoE...
  • Page 7: Technical Specifications

    Protection Level IP67 Temper Glass Thickness 4 mm Table 1: Specifications A PoE+ (30 W) injector suitable for Basler cameras can be purchased from Basler. Housing Transpac TPH 4000, PoE...
  • Page 8: Electrical Information

    Introduction AW00130001000 Electrical Information 3 x 12 VDC Fig. 7: Terminal Block Housing Transpac TPH 4000, PoE...
  • Page 9 Compliant with EN 55022:2010 Class B Compliant with EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Compliant with FCC Part 15:Subpart B (10-1-10 Edition) Class B CISPR 22:2008 Class B IP67 Compliant with IEC 60529 RoHS Fully compliant SVCH Fully compliant Table 2: Certifications Housing Transpac TPH 4000, PoE...
  • Page 10: Mounting A Camera

    This Transpac TPH 4000 PoE camera housing can accommodate Basler IP cameras. Preparing the Housing In order to install a Basler IP camera inside the housing, you have to remove the camera mounting platform (see Fig. 9) from the housing.
  • Page 11 (in the direction of the arrow in Fig. 9). 3. Lift off the camera mounting platform. The screws remain in place, still attached to the housing body. Now you can mount a camera on the camera mounting platform. Housing Transpac TPH 4000, PoE...
  • Page 12: Installation Instructions

    AW00130001000 Installation Instructions The following figure shows how to install an IP camera. When installing Basler cameras, it is recommended to use two small steel washers as well as the large steel washer in order to prevent damaging the camera.
  • Page 13: Revision History

    AW00130001000 Revision History Revision History Doc. ID Number Date Changes AW00130001000 26 Mar 2014 Initial release of this document. Housing Transpac TPH 4000, PoE...
  • Page 14 Revision History AW00130001000 Housing Transpac TPH 4000, PoE...
