Basler IP Fixed Dome Camera
Pendant Mount Kit Installation Guide
Document Number: AW001042
Version: 01
Language: 000 (English)
Release Date: 10 October 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dome camera and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Basler dome camera

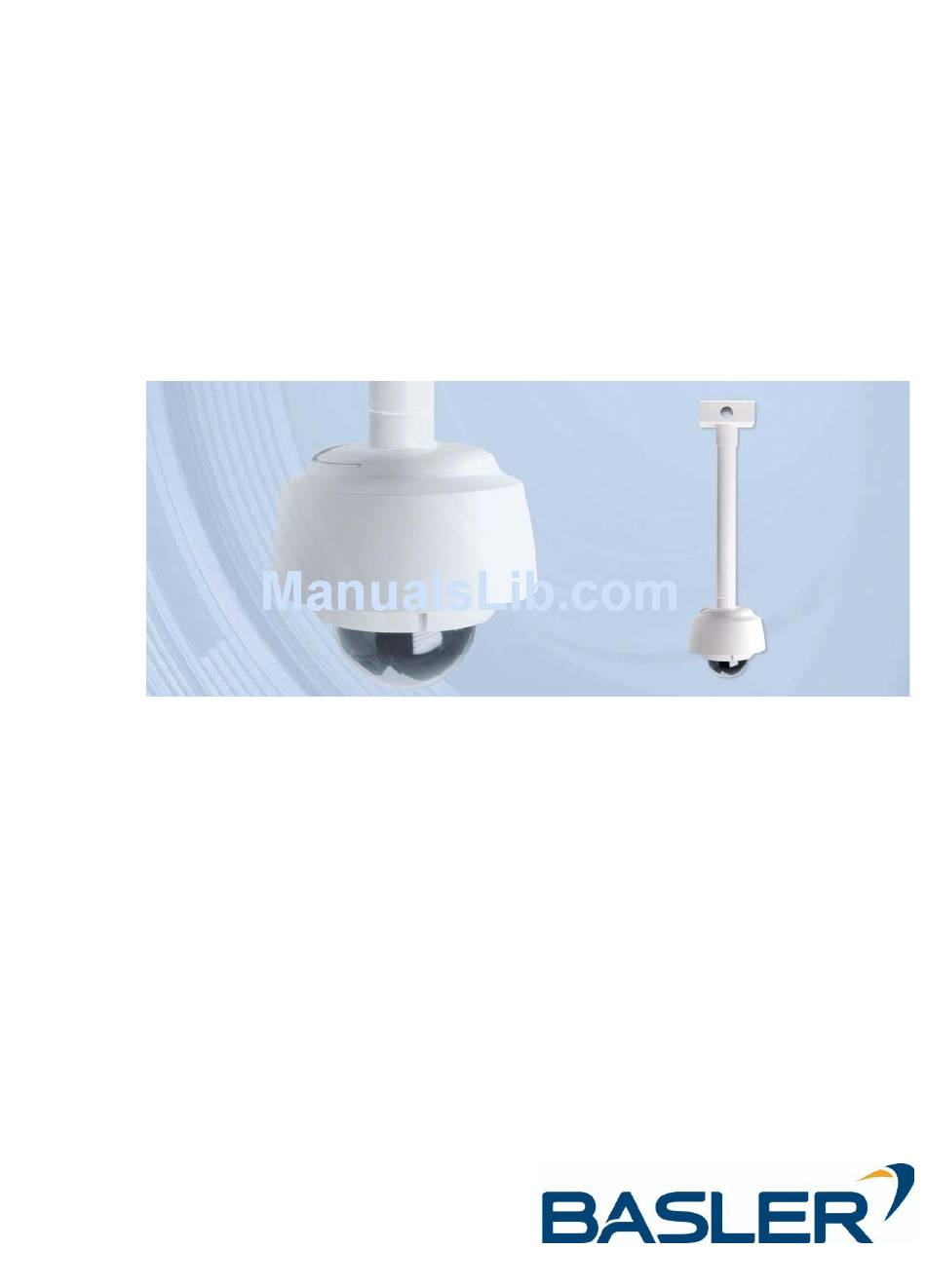

  • Page 1 Basler IP Fixed Dome Camera Pendant Mount Kit Installation Guide Document Number: AW001042 Version: 01 Language: 000 (English) Release Date: 10 October 2011...
  • Page 2 Contacting Basler Support Worldwide Europe and the Middle East: Basler AG Phone: +49-4102-463-303 An der Strusbek 60 - 62 Fax: +49-4102-463-599 22926 Ahrensburg Email: bc.support.ip.emea@baslerweb.com Germany The Americas: Basler, Inc. Phone: +1-610-280-0171 855 Springdale Drive, Suite 203 Fax: +1-610-280-7608 Exton, PA 19341 Email: bc.support.ip.usa@baslerweb.com...
  • Page 3 The kit plus the dome camera weighs 3.3 kilograms (7.3 pounds). Document Intent The intent of this document is to help you install a pendant mount kit for the Basler IP Fixed Dome Camera. This document should be used in combination with the Basler IP Fixed Dome Camera Installation Guide.
  • Page 4 Pendant Mount Kit Installation Guide Dimensions (in mm) Basler IP Fixed Dome Camera...
  • Page 5 Pendant Mount Kit Installation Guide 2 Installation The pendant mount and the dome camera should be assembled as shown in the exploded drawing on the next page. The connection to the ceiling must be able to support at least two times the weight of the pendant mount kit plus the dome camera.
  • Page 6 Ceiling Mount Bracket Self-drilling Screw (x 4) Pendant Pipe Pipe Adapter Camera Adapter Seal Camera Adapter M4 x 8 Screw (x 4) Dome Camera Base Network and Secondary Cables M4 x 8 Screw (x 3) Dome Basler IP Fixed Dome Camera...
