Atlona AT-HD620 User Manual

Atlona AT-HD620 User Manual

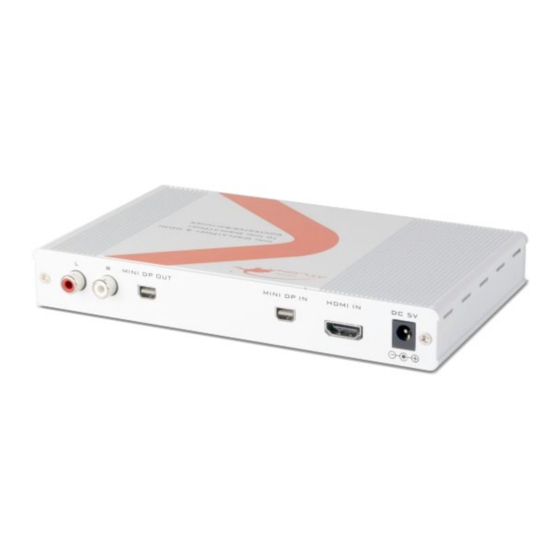

Hdmi/mini-displayport to mini-displayport scaler box

Advertisement

Quick Links

User Manual
HDMI/Mini-DisplayPort to Mini-DisplayPort Scaler Box
AT-HD620
Toll free: 1-877-536-3976
www.atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HD620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlona AT-HD620

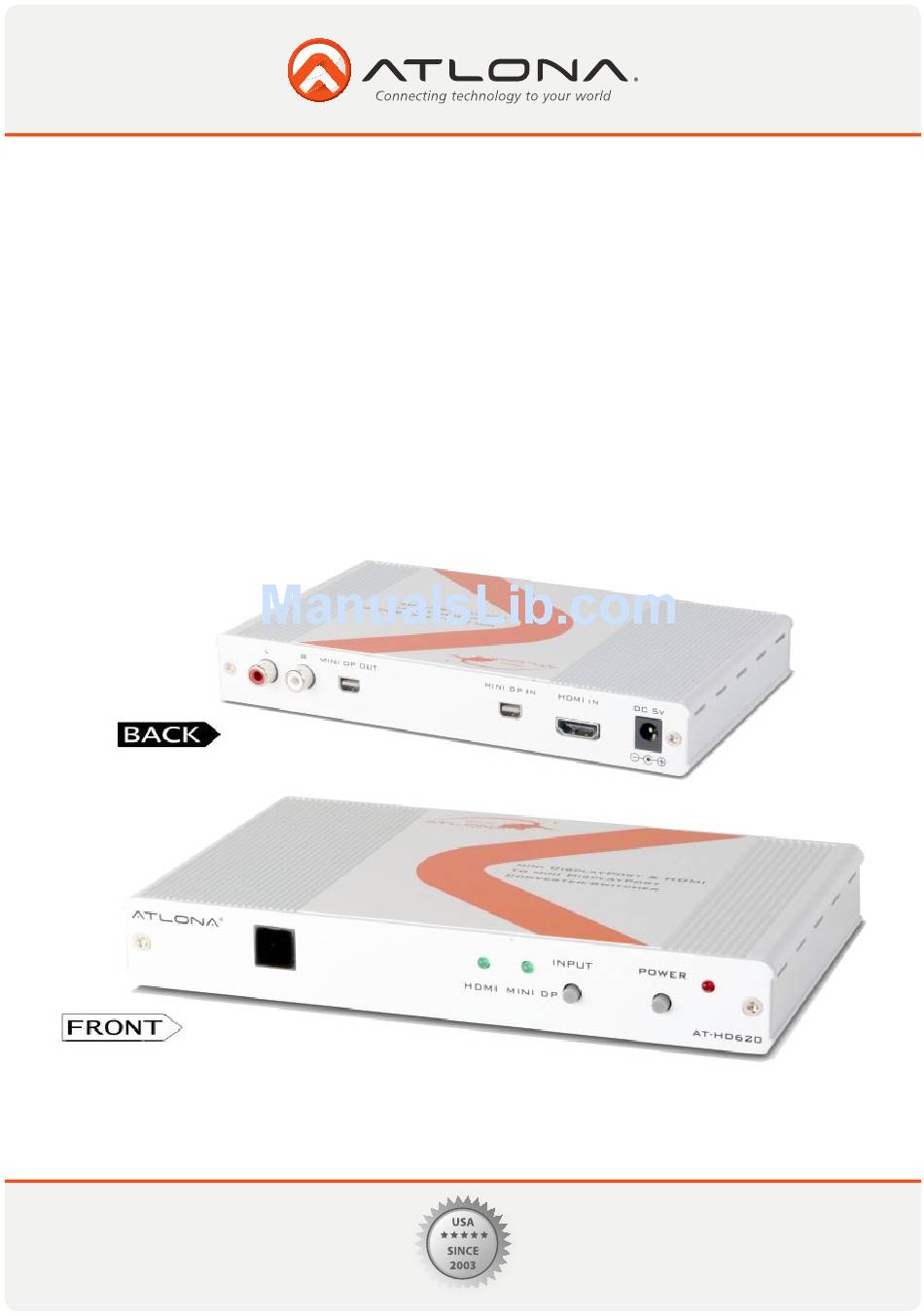

  • Page 1 User Manual HDMI/Mini-DisplayPort to Mini-DisplayPort Scaler Box AT-HD620 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 2: Table Of Contents

    5. Panel Description ..........4 5.1. Front Panel ..........4 5.2. Rear Panel ..........5 6. Connection and Installation ..........5 7. Safety Information ..........6 8. Warranty ..........7 9. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 3: Introduction

    The switching abilities of the AT-HD620 allows users to have HDMI source as well as Mini DisplayPort source connected at the same time and switch between them rather than disconnecting and reconnecting cables each time user wants to view HDMI source or Work on the Laptop and use Apple iMac 27”...
  • Page 4: Specification

    Chassis Material Aluminum Silkscreen Color White Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20 ~ 90% RH (non-condensing) Power Consumption 7.5 W Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 5: Panel Description

    2. Output MDP: Mini DisplayPort output need to be connected to the display 3. Input MIDP: Mini DisplayPort input can be connected to a Mini DisplayPort Laptop/Desktop computer. 4. Input HDMI: Connect Any HDMI enabled source 5. DC 5V Power: Connect supplied power supply Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 6: Connection And Installation

    CONNECTION AND INSTALLATION Mac Notebook Mac Monitor Speaker Amplifier Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 7: Safety Information

    It may also cause damage to your AT-HD620. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
  • Page 8: Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.
  • Page 9: Atlona Product Registration

    ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
