Atlona AT-HD560 User Manual
Hdmi to hdmi scaler box
Hide thumbs
Also See for AT-HD560:
- User manual (9 pages) ,
- User manual (9 pages) ,
- User manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Atlona AT-HD560
Summary of Contents for Atlona AT-HD560

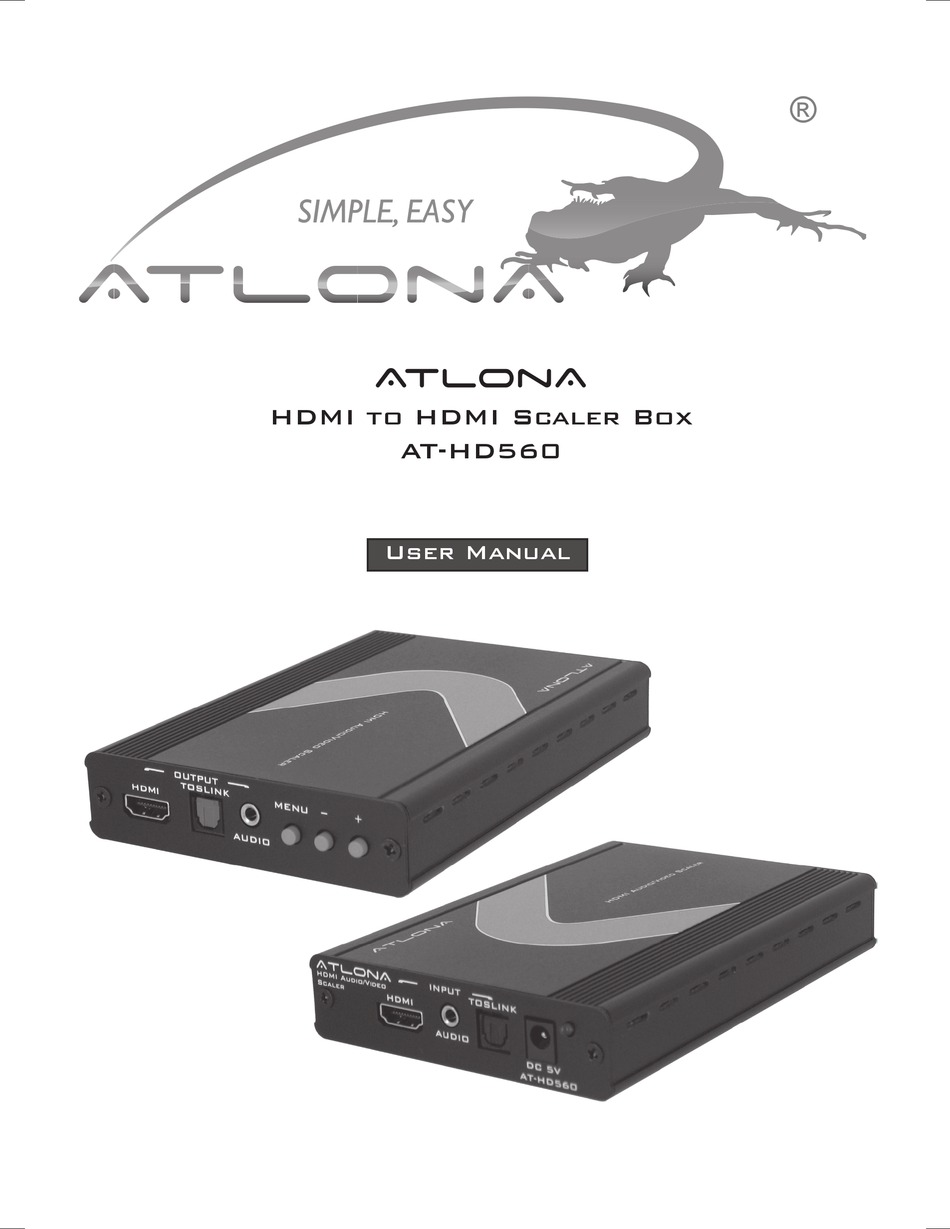

- Page 1 AtlonA HDMI to HDMI Scaler Box AT-HD560 User Manual...
-
Page 2: Table Of Contents
4.1 Front Panel ..............4.2 Rear Panel ..............4.3 OSD Operation ..............5. Connection and Installation ........................................6.2 Support Resolution ..............7. Resetting the Unit ..............5 8. Safety ..............9. Warranty ..............10. Atlona Product Registration .............. -
Page 3: Introduction
“If user is seeing a color bar, it means that there is no input signal present. The color bar will be active for 15min and after the Atlona device will go to the stand-by mode and disconnect from the display. As soon as incoming video signal will resume, the Atlona device will establish a new connection with the display”... -
Page 4: Operation Controls And Functions
Operation Controls and Functions 4.1. Front Panel OUTPUT TOSLINK MENU HDMI AUDIO ③ ④ ⑤ ① ② 1. MENU Button: a. Press the MENU button to bring up OSD operation menu (see section “4.3 OSD Opera- tion” for reference.) 2. +/- Buttons: selection. -

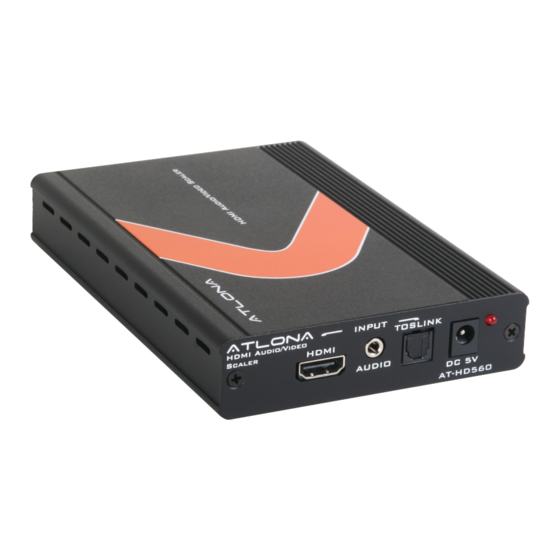

Page 5: Rear Panel
AtlonA INPUT TOSLINK HDMI Audio/Video Scaler HDMI AUDIO DC 5V AT-HD560 ① ② ③ ④ 1. HDMI INPUT: Connect the HDMI™ input port to the HDMI™ output port of your source equipment such as DVD player or Set-Top-Box. 2. AUDIO INPUT: Connect the analog audio input port to the output port of your source equipment such as DVD player or Set-Top-Box. -
Page 6: Osd Operation
4.3 OSD Operation 1st Tier Option 2nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level FINETUNE - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT... -
Page 7: Support Resolution
Specifications * Frequency bandwidth: 1.65Gbps (single link) * Input Ports: HDMI™ x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * Output Ports: HDMI™ x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * 5V/2.6A DC power supply * Dimensions: 102(W) x 145(D) x 25(H)mm * Weight: 1Kgs 6.2. -
Page 8: Safety
FCC Regulations state that any unauthor- hazards. It may also cause damage to your AT-HD560. Opening the product will void ment not expressly approved by the manu- the warranty. facturer could void the user’s authority to operate this... -
Page 9: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 10: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
