AtlonA
HDMI to HDMI Scaler Box
AT-HD560
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HD560 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-HD560

Summary of Contents for Atlona AT-HD560

  • Page 1 AtlonA HDMI to HDMI Scaler Box AT-HD560 User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Package Contents ..........4. Operation Controls and Functions ......4.1 Front Panel ..........4.2 Rear Panel ..........4.3 OSD Operation ..........5. Reset Functionality ..........6. Specifications ..........6.1 General Specification ........6.2 Support Resolution ........

  • Page 3: Introduction

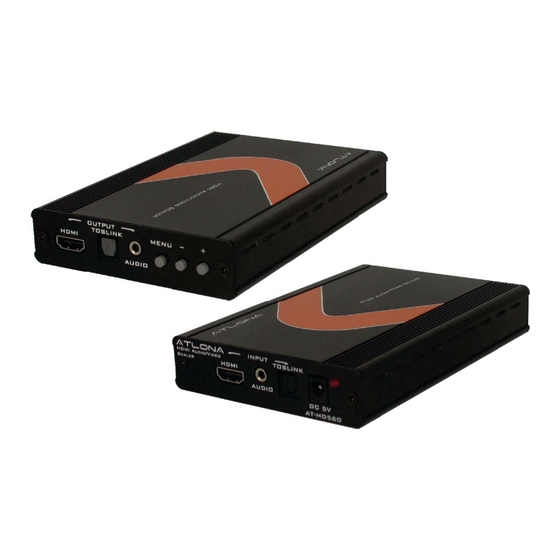

    Introduction This is a compact Atlona AT-HD560 HDMI™ to HDMI™ Scaler Box. It accepts HDMI™ input with a separate Toslink or analog audio and scale it to HDMI™ (at a number of selectable resolutions) with additional Toslink and analog audio output.

  • Page 4: Operation Controls And Functions

    Operation Controls and Functions 4.1. Front Panel OUTPUT MENU HDMI TOSLINK AUDIO 1. MENU Button: a. Press the MENU button to bring up OSD operation menu (see section “4.3 OSD Opera- tion” for reference.) b. When in the OSD menu mode, use MENU button as an OK key to confirm the selection. 2.

  • Page 5: Rear Panel

    4.2. Rear Panel INPUT DC 5V HDMI AUDIO TOSLINK 1. HDMI INPUT: Connect the HDMI™ input port to the HDMI™ output port of your source equipment such as DVD player or Set-Top-Box. 2. AUDIO INPUT: Connect the analog audio input port to the output port of your source equipment such as DVD player or Set-Top-Box.

  • Page 6: Osd Operation

    4.3 OSD Operation 1st Tier Option 2nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level FINETUNE - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT...

  • Page 7: Specifications

    Specifications 6.1. General Specification * Frequency bandwidth: 1.65Gbps (single link) * Input Ports: HDMI™ x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * Output Ports: HDMI™ x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * 5V/2.6A DC power supply * Dimensions: 102(W) x 145(D) x 25(H)mm * Weight: 1Kgs...

  • Page 8: Safety

    FCC Regulations state that any unauthor- hazards. It may also cause damage to your ized changes or modifications to this equip- AT-HD560. Opening the product will void ment not expressly approved by the manu- the warranty. facturer could void the user’s authority to operate this...

  • Page 9: Warranty

    WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
