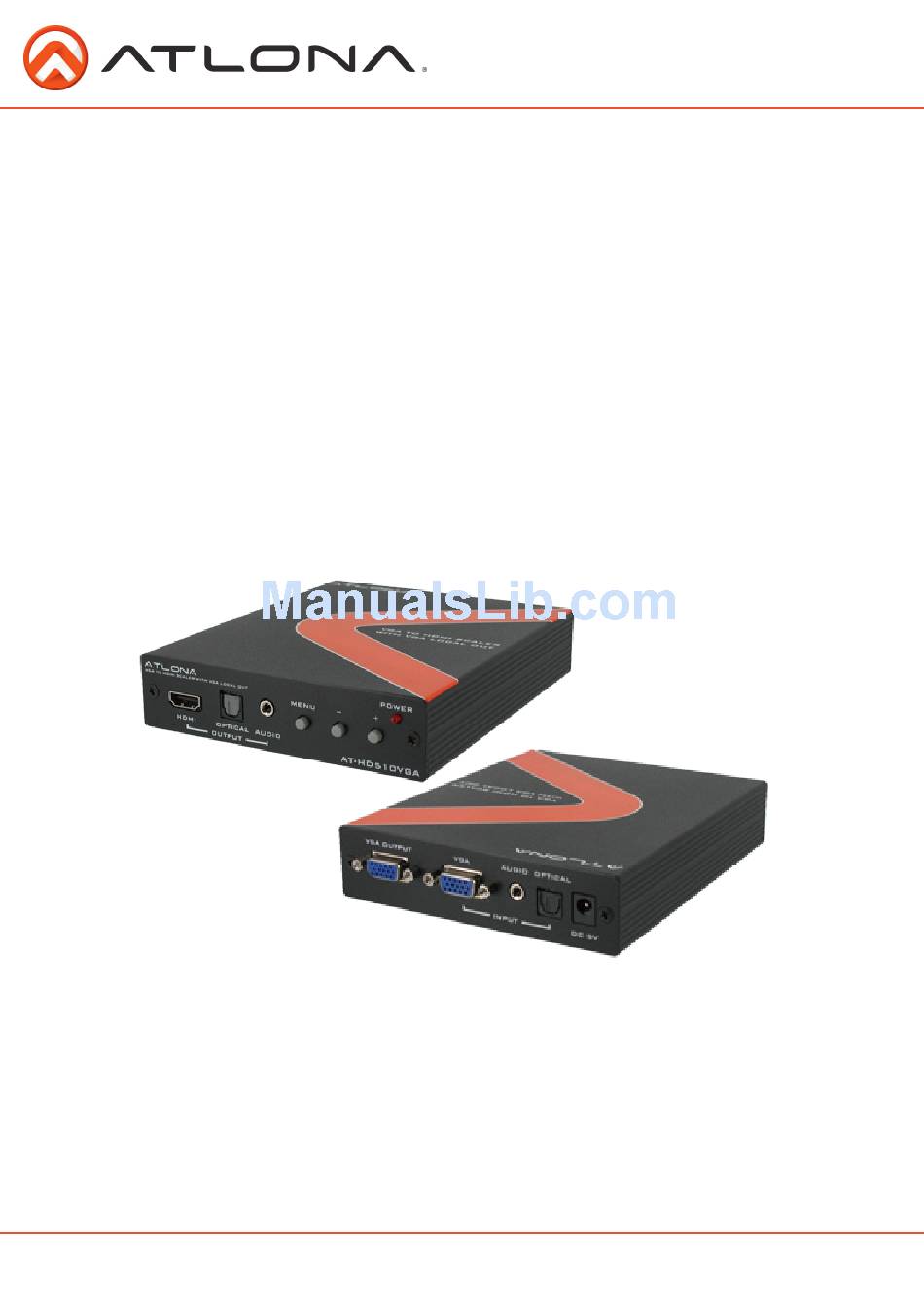

- Page 1 User Manual AtlonA PC/Component to HDMI Scaler with local PC/Component output AT-HD510VGA Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
..........8.1. PC to HDTV Connection ..........8.2. Component to HDTV Connection ..........9. Support Resolution ..........10. Resetting the Unit ..........11. Atlona Product Registration ..........12. Safety Information ..........13. Warranty ..........Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
(optical fiber), and phone jack (L/R audio) simultaneously. This unit has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality. PACKAGE CONTENTS: • AT-HD510VGA (PC/HDTV to HDMI Scaler) • 5v power supply • User manual FEATURES: •... -
Page 4: Panel Descriptions
3. Audio Output: Connect the PC 3.5mm phone jack output port to the analog audio input port of your equipment. 4. Menu Button: Press the MENU button to bring up OSD opera tion menu. (See section “6. OSD Operation” for reference.) 5. +/- Button : Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Osd Operation
OUTPUT (Output Resolution) VERSION (Firmware Version ACTIVATING A VGA OUTPUT ON A LAPTOP Most laptops have the VGA output disabled by default. In order to use Atlona converter user would have to en- able it. There are 2 x configurations: A) Mirror mode. - Page 6 Extend my Windows desktop onto this monitor check box. 3.Under Screen resolution, drag the slider to the right to change the screen resolution of Monitor 2 to 1024 by 768 pixels, and then click OK. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 7 By taking advantage of additional monitors, you can share information with others more effectively when you’re giving a presentation and also improve your productivity by extending your workspace when you’re using your mobile PC at your desk. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 8: Connection Diagram
CONNECTION AND INSTALLATION 1. PC to HDTV Connection D-SUB(VGA) cable Notebook D-SUB(VGA) cable AT-HD510VGA Amplifier HDMI cable 2. Component to HDTV Connection Local TV DVD Player VGA to Component cable VGA to Component cable AT-HD510VGA Amplifier HDMI cable Toll free: 1-877-536-3976 atlona.com... -
Page 9: Support Resolution
3. Connect the power plug back in and continue holding the “Menu” for another 5 seconds 4. Release the “Menu” and allow up to 10 seconds for the unit to connect to the display Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 10: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. - Page 11 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 12 Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
