Summary of Contents for Atlona AT-HD580

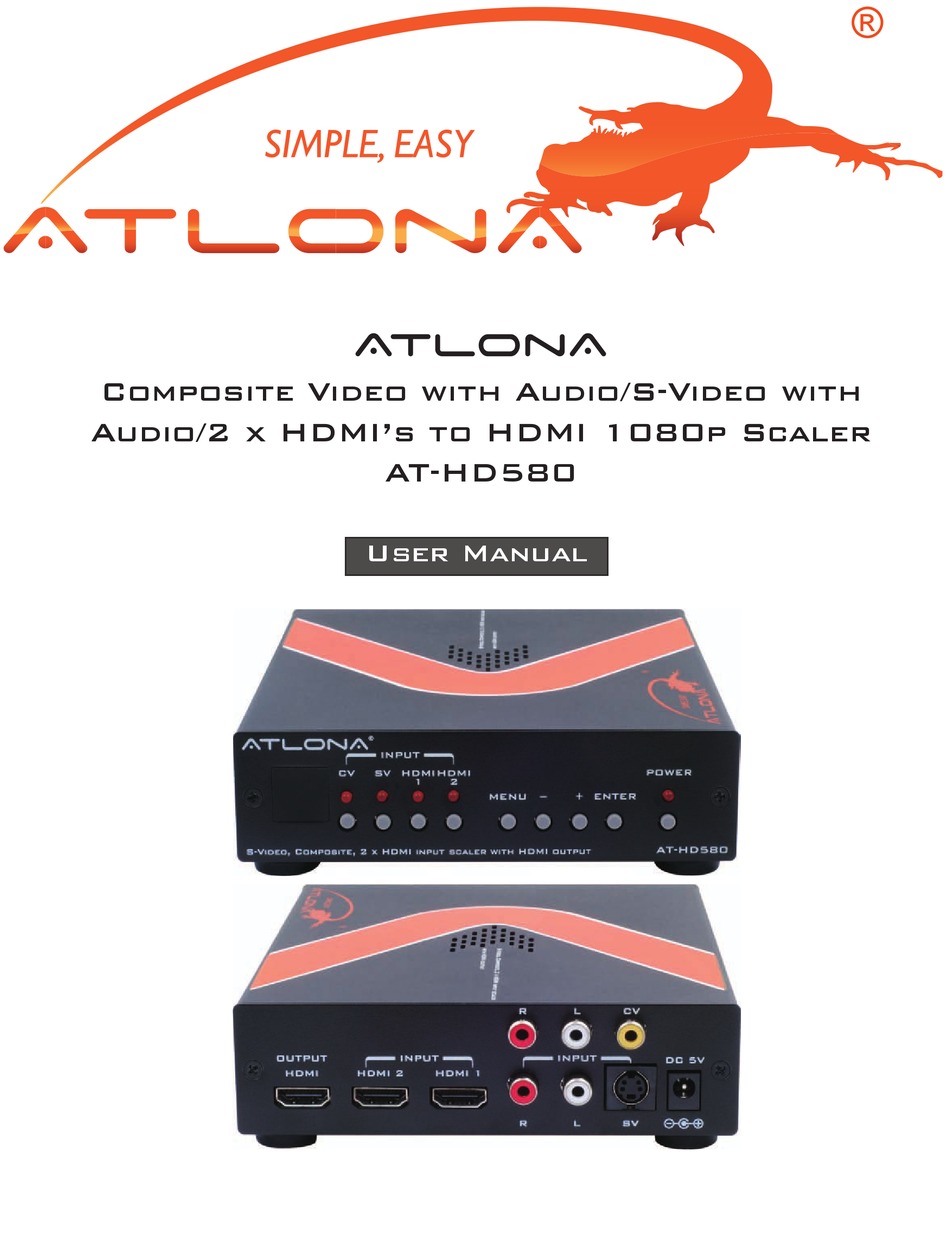

- Page 1 AtlonA Composite Video with Audio/S-Video with Audio/2 x HDMI’s to HDMI 1080p Scaler AT-HD580 User Manual...
-
Page 3: Table Of Contents
3. Package Contents ..........4. Panel Descriptions ..........4.1 Front Panel ..........4.2 Rear Panel ..........5. Remote Control ..........6. Connection and Installation ..........7. Specifications ..........8. Safety Information ..........9. Warranty ..........10. Atlona Product Registration .......... -
Page 4: Introduction
This unit features Composite with Stereo Audio, S-Video with Stereo Audio, and 2 x HDMI inputs for a variety of uses for source to display. The AT-HD580 could also be used a Pal to NTSC or NTSC to Pal converter scaler. FEATURES: •... -

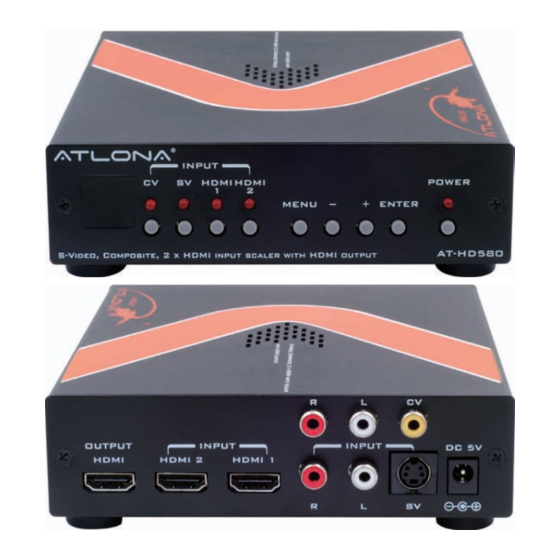

Page 5: Panel Descriptions
S-Video output of desired HD video source such as PS3, DVD player, Blu-Ray Player or Set-Top-Box. Connect the L/R audio input to the audio output of audio source. 4. Power: Plug the 5VDC power supply into the AT-HD580 and connect the adaptor to an AC wall outlet. -
Page 6: Remote Control
REMOTE CONTROL 1. POWER – Press to turn the device on and off. 2. CV – Press to switch to Composite Video mode, press ok to confirm 3. HDMI2 – Press to switch to HDMI2 mode, press ok to confirm. 4. -
Page 7: Connection And Installation
CONNECTION and INSTALLATION Cable Box AT-HD580 High Resolutions up to 1080p DVD Player DVD Player PS 3 Apple TV SPECIFICATIONS Frequency Bandwidth 1.65Gbps (single link) Input ports 2 x HDMI female ports (signal link); 1 x CV with L/R Video: 1Vp-p 75 ohm;... -
Page 8: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 9: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 10: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
