Summary of Contents for Atlona AT-HD610

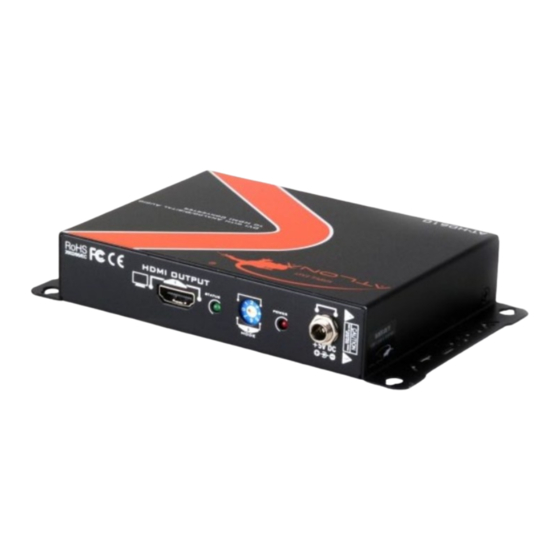

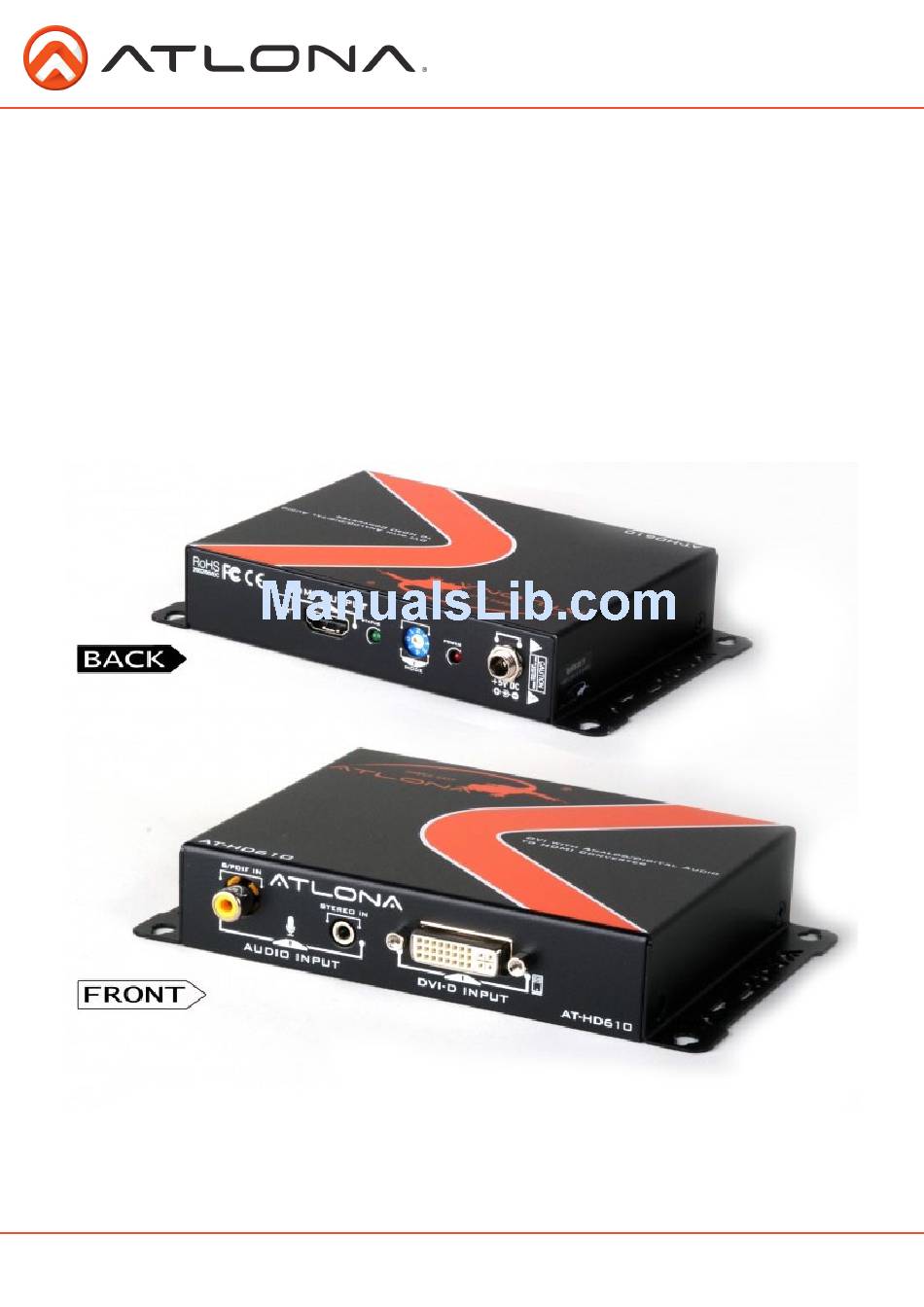

- Page 1 User Manual DVI with Stereo/Digital Audio to HDMI™ Format Converter AT-HD610 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
5. Notice ..........2 6. Specifications ..........3 7. Panel Description ..........4 8. Connection and Installation ..........5 9. Safety Information ..........6 10. Warranty ..........7 11. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION Atlona Technologies AT-HD610 DVI Stereo/Digital Audio to HDMI™ Format Converter provides an easy and instant approach for converting digital video (DVI-D) and either digital audio (S/PDIF) or analog stereo audio to digital HDMI™ signal. With this module, DVI based devices such as Computers (Mac/PC) with S/PDIF or analog stereo audio can readily connect to HDMI™... -
Page 4: Specifications
SPECIFICATIONS Model Name AT-HD610 Technical Role of usage Converter HDMI™ compliance HDMI™ DVI compliance DVI 1.1 HDCP compliance Video bandwidth Single-link 165MHz (4.95Gbps) Video support 1080p60, WUXGA 1920x1200@60Hz, UXGA 1600x1200@60Hz Audio support Stereo audio (analog and digital) PCB stack-up 4-layer board (impedance control – differential 100W; single 50W) Input TMDS signal 1.2 Volts (peak-to-peak) -
Page 5: Panel Description
3. MODE: 0 = analog audio mode; 1 = S/PDIF audio mode; 2-5 = not in use; 6 = use default EDID 7= learn EDID from connected HDMI™ display 4. POWER: Power on/off indicator 5. +5V DC: Connect to a 5V DC power supply unit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Connection And Installation
HDMI Cable HDTV 1. Connect a DVI source to the DVI input port of the AT-HD610 with a DVI cable. 2. Connect the S/PDIF or stereo audio source to RCA jack or 3.5mm earphone jack respectively. 3. Connect a HDMI™ display to the HDMI™ output port of the AT-HD610 with a HDMI™ cable. -
Page 7: Safety Information
It may also cause damage to your AT-HD620. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 8 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 9: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
