Page 1: User Manual
Atlona HDMI Audio De-Embedder and Converter AT-HD570 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
Front Panel .................. 4 b. Rear Panel .................. 4 5. Connection and Installation .................. 5 6. Specifications .................. 6 7. Safety Information .................. 7 8. Warranty .................. 8-9 9. Atlona Product Registration .................. 9 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona HDMI Audio De-embedder and Interface Format Converter includes analog and digital audio outputs, passing up to Dolby TrueHD or DTS-HD Master Audio. Along with multiple audio outputs, the HD570 provides equalized HDMI ports to extend signal up to 15 meters (50 feet). -

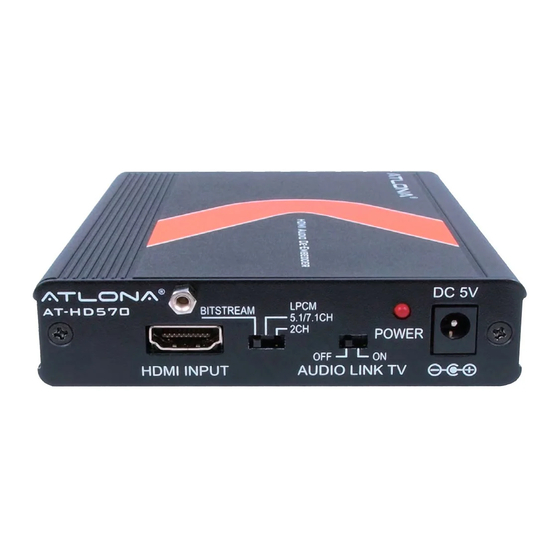

Page 4: Panel Descriptions
LFE/C LS/RS LB/RB AT-HD570 1. HDMI IN - Connect the HDMI source here (such as DVD player or Set-Top-Box) 2. Audio dip switch - Switch between bitstream (such as Dolby TrueHD or DTS-HD Master Audio), LPCM 5.1/7.1 Ch, and PCM 2Ch... -
Page 5: Connection And Installation
Connection and Installation POWER DC 5V LPCM BITSTREAM 5.1/7.1CH HDMI IN HDMI VIDEO LFE/C LS/RS LB/RB AT-HD570 HDMI OUT MULTICHANNEL OUT OPTICAL OUT Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Specifications
3D pass through, 1080p, up to Dolby TrueHD or DTS-HD Master Audio MULTICHANNEL OUT Audio Formats LPCM 7.1, LPCM 5.1, and PCM 2Ch OPTICAL OUT Digital Formats Dolby Digital, DTS 5.1, and 2Ch PCM Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 8 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 9: Atlona Product Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona, Inc Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
