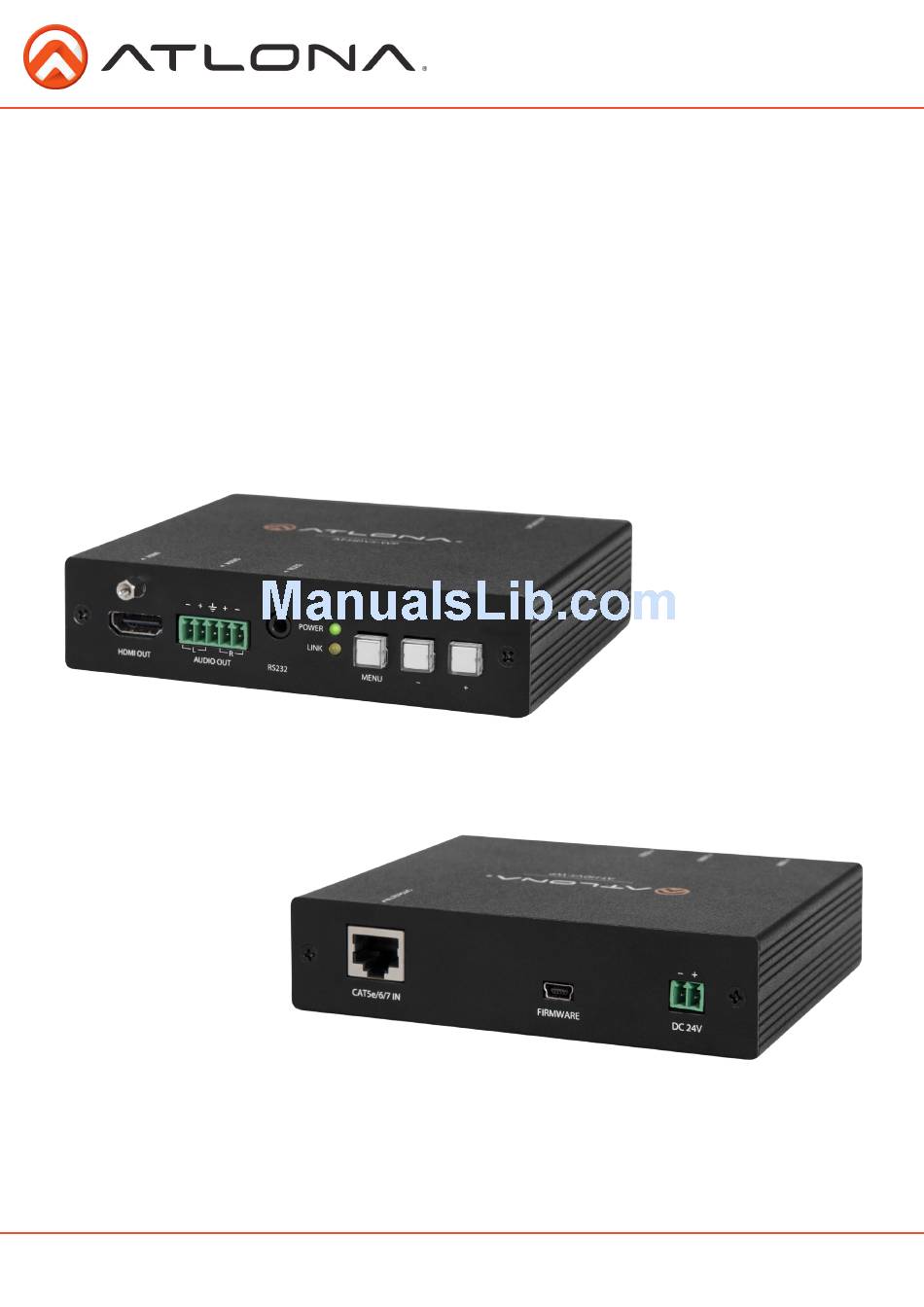

Page 1: User Manual
Atlona HDBaseT to HDMI Receiver/Scaler with Audio De-Embedding AT-HDVS-RX User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
5. OSD Menu .................. 5-6 6. RS-232 & Software .................. 7-11 7. Connection and Installation .................. 12 8. Specifications .................. 13 9. Safety Information .................. 14 10. Warranty .................. 15-16 11. Atlona Product Registration .................. 16 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Atlona HDVS recei ver box was designed to smooth the transition from analog to digital displays in schools and businesses, allowing advanced HDMI display devices to be used with the many VGA computers still in use. Many displays don’t support the resolutions and refresh rates typical of VGA sources. -
Page 4: Panel Description
2. FIRMWARE: Connect to a PC using a mini USB to USB for firmware updating 3. DC 24V: Connect included 24V DC adapter here to power HDVS-RX and compatible transmitters HDMI OUT AUDIO OUT RS232 MENU Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Osd Menu
Yes or No H Size % 0 to 50% V Size % 0 to 50% Menu Back Audio Audio On/Off On or Off (mute) HDMI Audio On or Off L/R Audio On or Off Menu Back Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 5 to 300 seconds. The LED will blink for the full amount of the delay time (ex. 40 seconds). Standby (min.): Adjusts period of time before scaler goes into standby following loss of signal. Default is 0 minutes Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 7: Rs-232 & Software
---- Not used ---- Not used Control Software Control software and instructions for ease of use can be found on the AT-HDVS-RX webpage on atlona.com. URL: http://www.atlona.com/HDVS-RX.html ( instructions/software found under the “Downloads” tab Set Up 1. Connect the receiver to a PC using a 9 pin serial to USB adapter Note: Receiver must be disconnected from the display for RS-232 set up 2. - Page 8 DispSW AVon - Display switches on/off, source audio/video signal always on DispSW AVSW - Display switches on/off, source audio/video signal switches on/off AV SW - Display is always on, source audio/video signal switches on/off Always On - Default, no function Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 9 Standby (min): Adjusts period of time before the scaler goes into standby following loss of signal. Default is 0 minutes 1. Display settings 2. Press to populate the display’s settings 3. Resets the picture to original settings Note: Factory reset will erase all the data entered into the software. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 TX, TXWP=AT-HDVS-TX-WP WP_Input[a]$ [a] ? , Hdmi1 , Hdmi2 , Vga Select input source WP_Input[a]$ [a] ? , Hdmi , Vga Select input source [a] ? , On , Off WP_Display[a]$ Display On/Off control Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 1. Each command and feedback is terminated with a carriage return. 2. Spaces aren’t allowed except in projector display on/off command strings. 3. AT-HDVS-RX RS-232 port settings: 115200 bps, 8 bit data length, No parity bit, 1 bit stop-bit, No flow control.
-
Page 12: Connection And Installation
HDMI IN INPUT VGA IN AUDIO IN SELECT AT-HDVS-TX-WP CAT5e/6/7 IN FIRMWARE DC 24V CAT5e/6/7 IN FIRMWARE DC 24V POWER POWER LINK LINK HDMI OUT AUDIO OUT RS232 MENU HDMI OUT AUDIO OUT RS232 MENU Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 13: Specifications
30 x 122 x 125 mm Weight 0.67 lbs 0.31 kg Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 40°C 20°C to 60°C Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 14: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 15: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 16: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
