4K/UHD
Scaler for HDBaseT and HDMI with Video Wall Processing
AT-HDVS-SC-RX

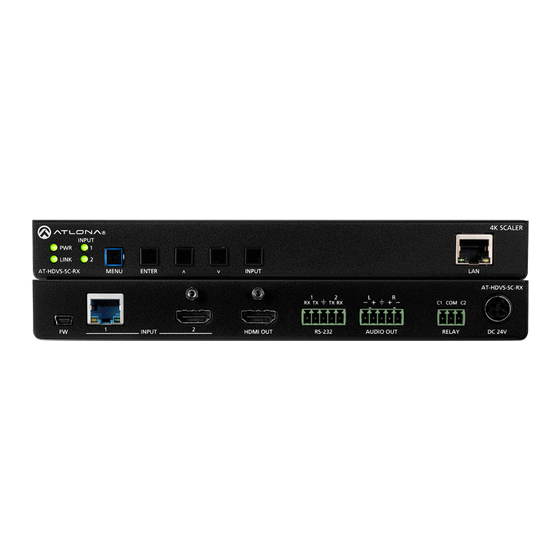

The Atlona AT-HDVS-SC-RX is an HDBaseT receiver and 4K/UHD scaler with a local HDMI
input. It receives HDBaseT for video output up to 4K/30 4:4:4, plus embedded audio, control,
and Ethernet over distances up to 330 feet (100 meters). The HDVS-SC-RX features Atlona
CrystalScale technology with high quality downscaling and upscaling, as well as a host of
advanced image optimization capabilities plus video wall processing. The HDVS-SC-RX is
ideal for 4K presentation applications with HDVS-200 Series switching transmitters, EX Series
transmitters, Atlona AV switchers with HDBaseT outputs, and local HDMI sources, plus the
Gain™ 60 amplifier. The HDVS-SC-RX and an HDVS-200 Series transmitter together serve as a
compact, fully automated AV system with the convenience of automatic input selection, display
control, remote transmitter powering through Power over Ethernet (PoE), and 4K/UHD scaling.
Package Contents
1 x AT-HDVS-SC-RX
1 x Captive screw connector, 3-pin
2 x Captive screw connector, 5-pin
1 x 24 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-HDVS-SC-RX for the latest
firmware updates and User Manual.
1
Installation Guide
AT-HDVS-SC-RX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-HDVS-SC-RX
Summary of Contents for Atlona AT-HDVS-SC-RX
-

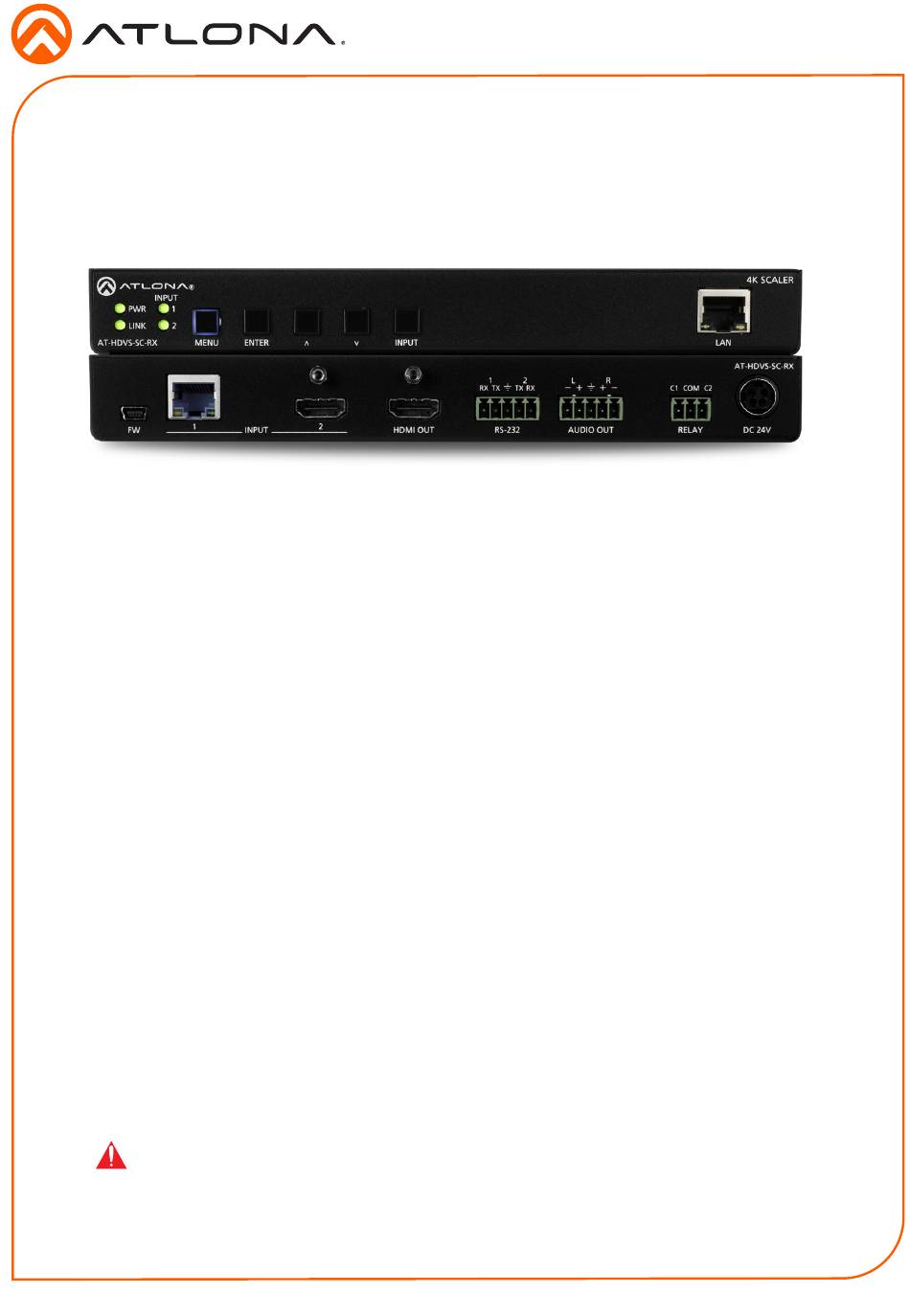

Page 1: Installation Guide
Scaler for HDBaseT and HDMI with Video Wall Processing AT-HDVS-SC-RX The Atlona AT-HDVS-SC-RX is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. It receives HDBaseT for video output up to 4K/30 4:4:4, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDVS-SC-RX features Atlona CrystalScale technology with high quality downscaling and upscaling, as well as a host of advanced image optimization capabilities plus video wall processing. -
Page 2: Audio Out
Installation Guide AT-HDVS-SC-RX Panel Description Front 4K SCALER INPUT LINK AT-HDVS-SC-RX MENU ENTER INPUT Rear AT-HDVS-SC-RX C1 COM C2 INPUT HDMI OUT RS-232 AUDIO OUT RELAY DC 24V This LED indicator glows solid green when Connect a mini USB cable to this port to the unit is powered. -
Page 3: Audio Output Connector
AT-HDVS-SC-RX Control Audio Output Connector The AUDIO OUT connector on the AT-HDVS-SC-RX provides the ability to connect either balanced or unbalanced audio inputs, using the included 5-pin captive screw block. Balanced audio connections use two signal wires and a ground to minimize interference in audio signals. -
Page 4: Installation
The AT-HDVS-SC-RX provides a RELAY port, allowing the control of screens, curtains, and other devices. Use a 48 V DC relay with no more than 1 A current draw. When the AT-HDVS-SC-RX is powered-on or rebooted, C1 and C2 are set to the Normally Open (NO) state. - Page 5 Installation Guide AT-HDVS-SC-RX Connection Diagrams Standard Application RX TX RS-232 HDMI USB-C...
- Page 6 Installation Guide AT-HDVS-SC-RX Video Wall Application...
- Page 7 AT-HDVS-SC-RX IP Configuration By default, the AT-HDVS-SC-RX is set to DHCP mode, allowing a DHCP server (if present) to assign the unit an IP address. If a DHCP server is not found within 15 seconds, then the unit will be placed in Auto IP mode and use a self-assigned IP address within the range of 169.254.xxx.
- Page 8 Highlight and select Exit to exit without returning to the main menu. AMS 2.0 For easy configuration of Atlona devices, AMS 2.0 is available from https://atlona.com/ams for free. Two options can be used for installation: The free Linux-based software download or the easy-to-install server hardware (AT-AMS-HW).
- Page 9 IP Configuration (page 7) for more information. Connect an Ethernet cable from the LAN port on the AT-HDVS-SC-RX to the Local Area Network (LAN). Use an IP scanner to determine the IP address of the AT-HDVS-SC-RX. Launch a web browser and enter the IP address of the unit.
-
Page 10: Mounting Instructions
Installation Guide AT-HDVS-SC-RX Mounting Instructions The AT-HDVS-SC-RX includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on either side of the unit, to attach the mounting brackets. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure. - Page 11 Installation Guide AT-HDVS-SC-RX Notes...
- Page 12 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
