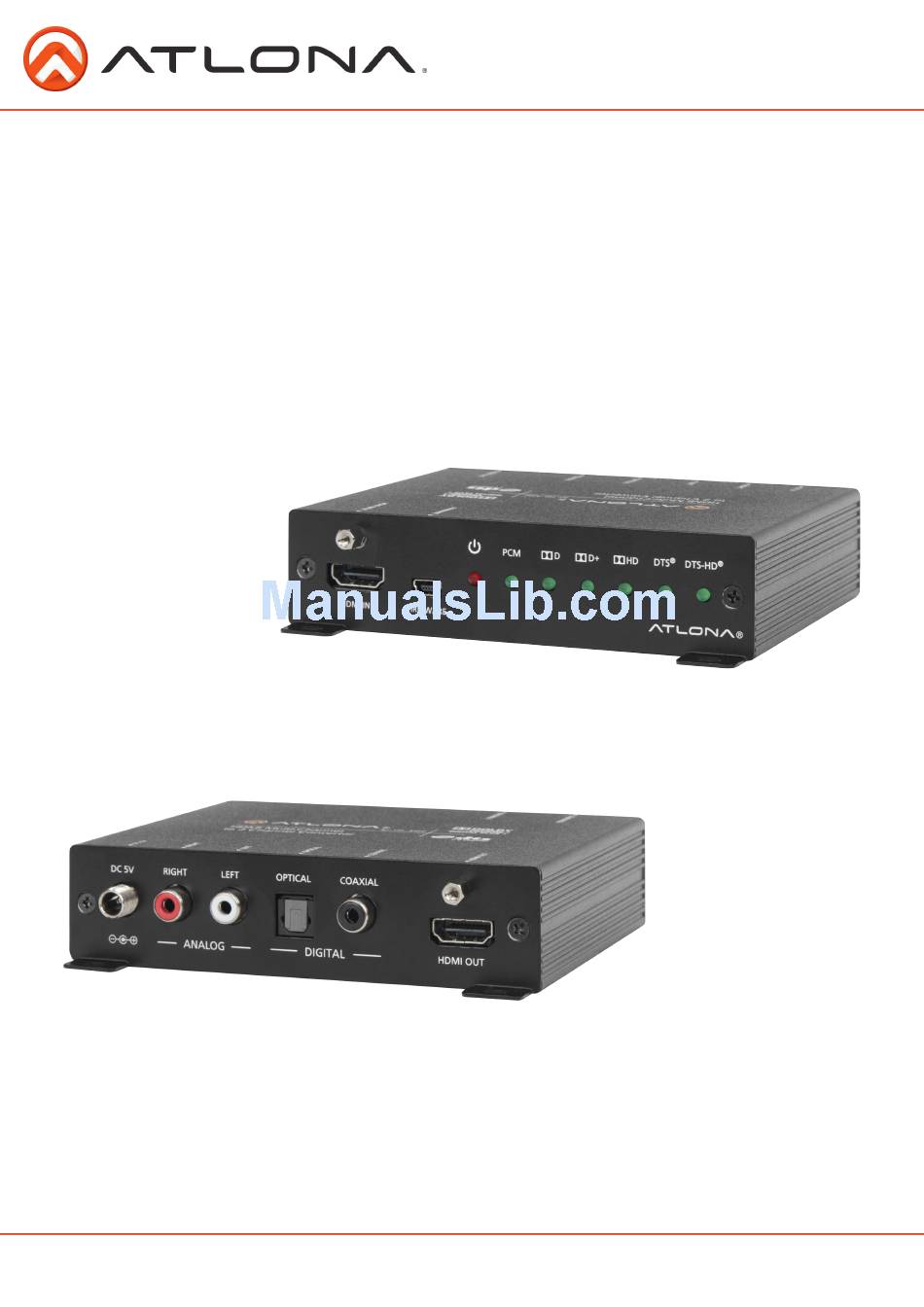

Page 1: User Manual
Atlona HDMI Multichannel to 2Channel Converter AT-HD-M2C User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
5. EDID Audio/Video ................5 6. Connection and Installation ................5 7. Specifications ................6 8. Safety Information ................7 9. Warranty ................8-9 10. Atlona Product Registration ................9 11. Trademark Acknowledgement ................9 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
(such as audio receivers). The AT-HD-M2C doesn’t stop there, it also has multiple audio output ports allowing audio to pass to amplifiers and legacy AVRs (that don’t support HDMI) while still passing video and 2Ch audio to an HDMI display. With the AT-HD-M2C, enjoy the best audio available without compromising. -
Page 4: Panel Description
3. Digital audio port: Digital Optical/Coaxial out to connect to an AVR with no HDMI support. NOTE: Audio output is 2CH only, multichannel audio is not passed through these ports. 4. HDMI out port: Connect to an HDMI display. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Edid Audio/Video
EDID Audio To ensure the highest audio signal is passed, the AT-HD-M2C has an internal multi-channel audio EDID. The ® ® ® Internal EDID supports: PCM2.0, LPCM5.1, LPCM7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround™, and DTS-HD Master Audio™. -
Page 6: Specifications
Digital DTS Digital Surround ™ ® LPCM Dolby Digital Plus DTS-HD Master Audio ™ ® LPCM Dolby TrueHD Output Signal u HDMI Optical Coaxial Analog (Left/Right) Analog *Dolby Digital Plus 7.1 is not supported Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 9: 10. Atlona Product Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
