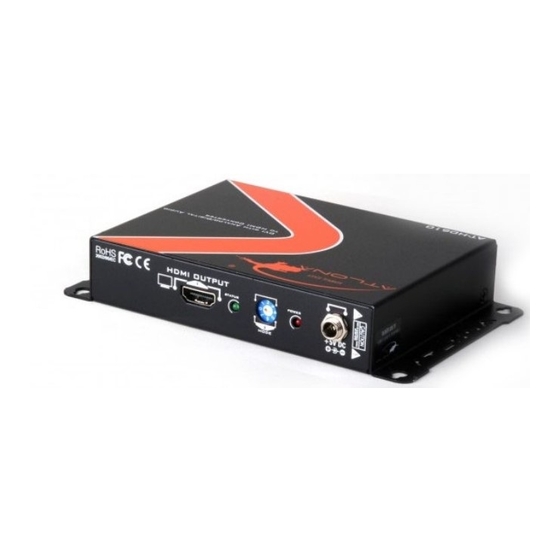

Atlona AT-HD610 User Manual

Atlona AT-HD610 User Manual

Dvi with stereo/digital audio to hdmi format converter
Hide thumbs Also See for AT-HD610:

Advertisement

Quick Links

User Manual
DVI with Stereo/Digital Audio to HDMI™ Format Converter
AT-HD610
Toll free: 1-877-536-3976
www.atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HD610 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-HD610

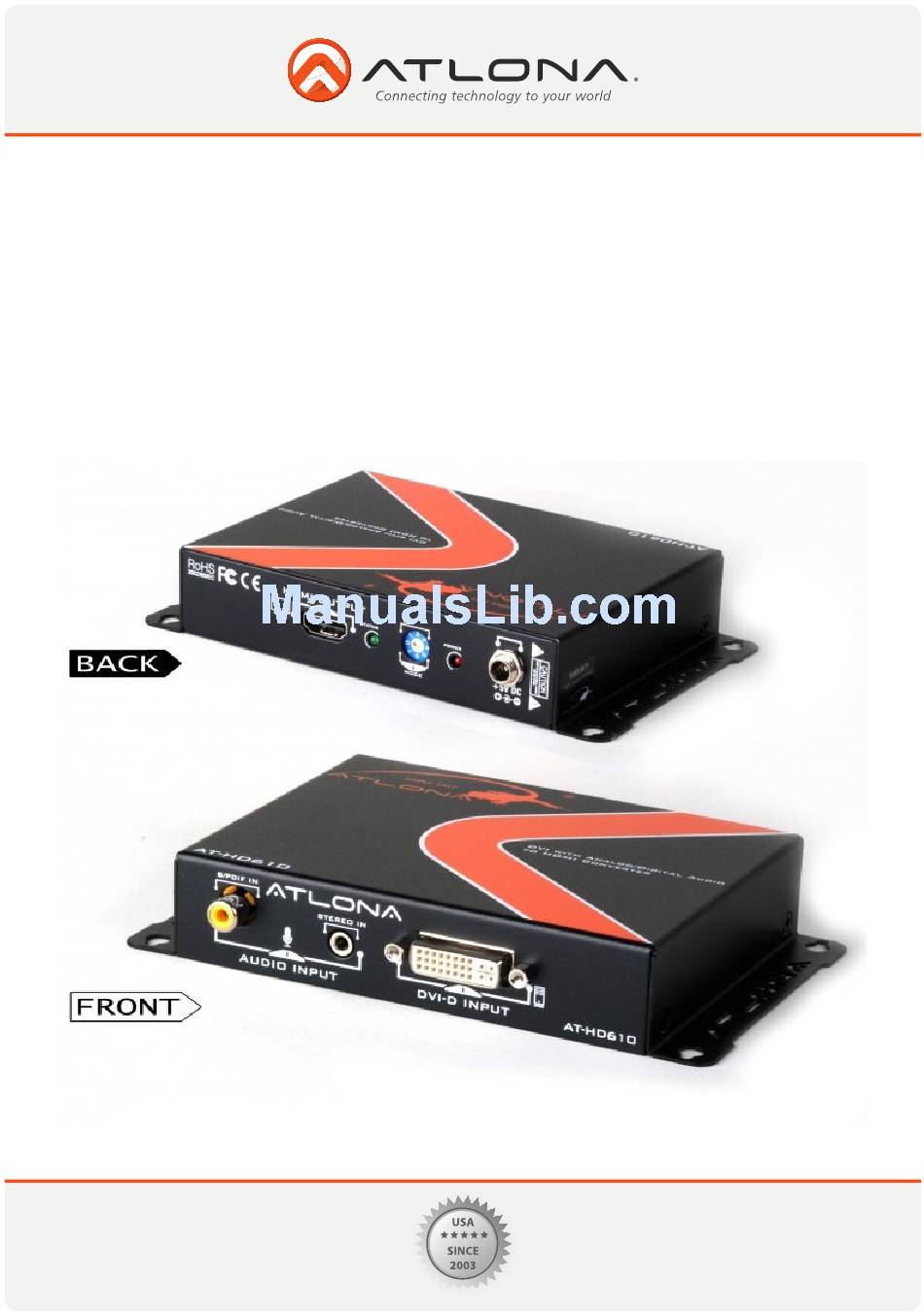

  • Page 1 User Manual DVI with Stereo/Digital Audio to HDMI™ Format Converter AT-HD610 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 2: Table Of Contents

    5. Notice ..........2 6. Specifications ..........3 7. Panel Description ..........4 8. Connection and Installation ..........5 9. Safety Information ..........6 10. Warranty ..........7 11. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 3: Introduction

    INTRODUCTION Atlona Technologies AT-HD610 DVI Stereo/Digital Audio to HDMI™ Format Converter provides an easy and instant approach for converting digital video (DVI-D) and either digital audio (S/PDIF) or analog stereo audio to digital HDMI™ signal. With this module, DVI based devices such as Computers (Mac/PC) with S/PDIF or analog stereo audio can readily connect to HDMI™...
  • Page 4: Specifications

    SPECIFICATIONS Model Name AT-HD610 Technical Role of usage Converter HDMI™ compliance HDMI™ DVI compliance DVI 1.1 HDCP compliance Video bandwidth Single-link 165MHz (4.95Gbps) Video support 1080p60, WUXGA 1920x1200@60Hz, UXGA 1600x1200@60Hz Audio support Stereo audio (analog and digital) PCB stack-up 4-layer board (impedance control – differential 100W; single 50W) Input TMDS signal 1.2 Volts (peak-to-peak)
  • Page 5: Panel Description

    3. MODE: 0 = analog audio mode; 1 = S/PDIF audio mode; 2-5 = not in use; 6 = use default EDID 7= learn EDID from connected HDMI™ display 4. POWER: Power on/off indicator 5. +5V DC: Connect to a 5V DC power supply unit Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 6: Connection And Installation

    HDMI Cable HDTV 1. Connect a DVI source to the DVI input port of the AT-HD610 with a DVI cable. 2. Connect the S/PDIF or stereo audio source to RCA jack or 3.5mm earphone jack respectively. 3. Connect a HDMI™ display to the HDMI™ output port of the AT-HD610 with a HDMI™ cable.
  • Page 7: Safety Information

    It may also cause damage to your AT-HD620. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
  • Page 8: 10. Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.
  • Page 9: 11. Atlona Product Registration

    ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
