Figure 3-5 Selecting The Windows Printer Driver - Microcom 428T Operator's Manual

Chapter 3

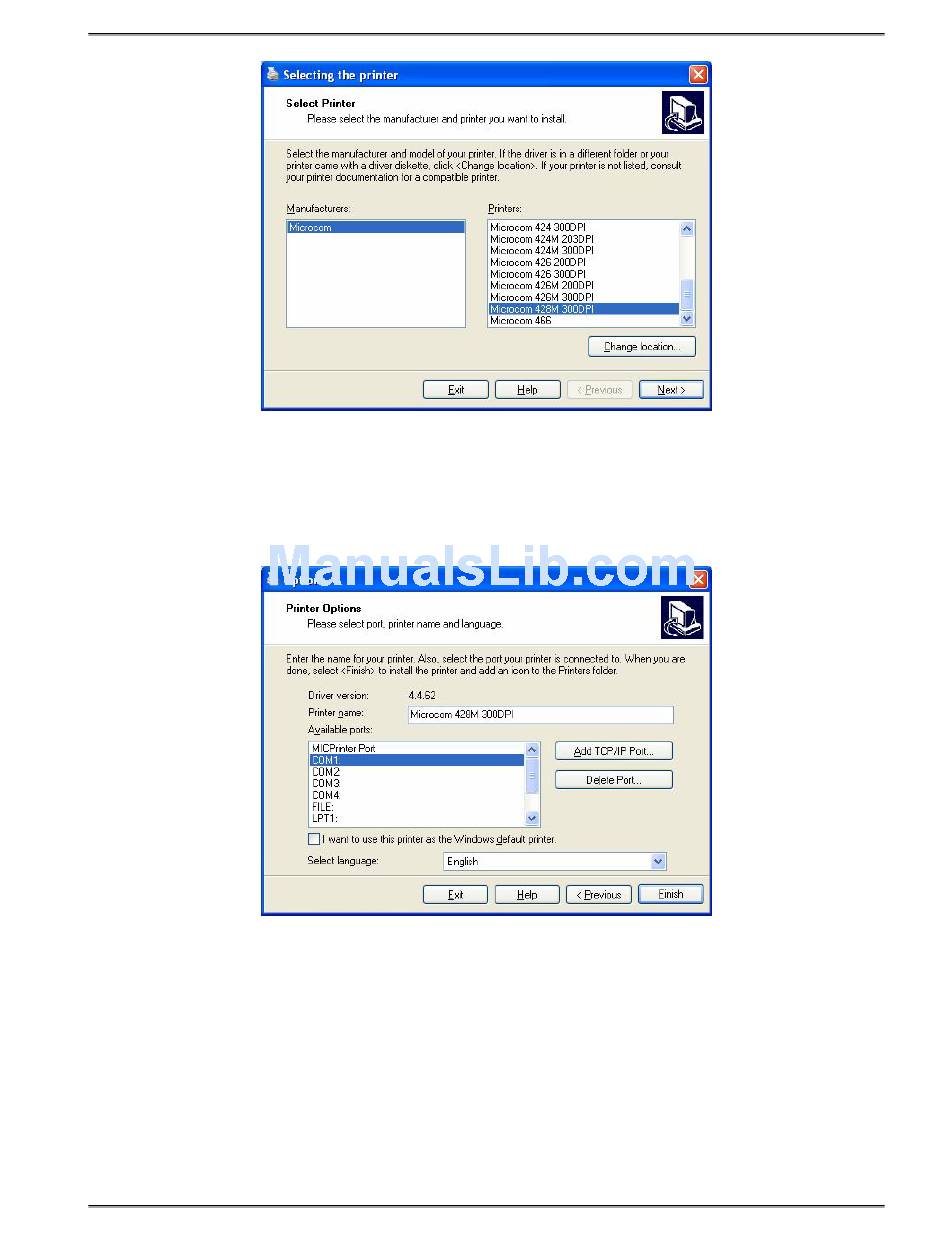

Figure 3-4
After selecting MICROCOM as the printer manufacturer, the printer Model and Printhead
resolution should be selected.
Figure 3-5
Select the printer port that will be used and then select the "Finish" button. Please note that
if you need to communicate directly to the communication port using HyperTerminal,
TeraTerm Pro, or other VT100 emulation program, you will need to first set the Windows
Driver to PRINT TO FILE before the Windows Operating System will allow communication
to occur with these types of programs.
3. After the driver has been installed, you may configure it for your applications use by
going to the "Printers and Faxes" folder. You should see the driver that was just installed.
428T Operator's Manual - 880037-0141
Selecting the Windows Printer Driver
Selecting the Windows Printer Driver
Getting Started
3-11
