2-5-4 Installing the CrossFire Bridge Card

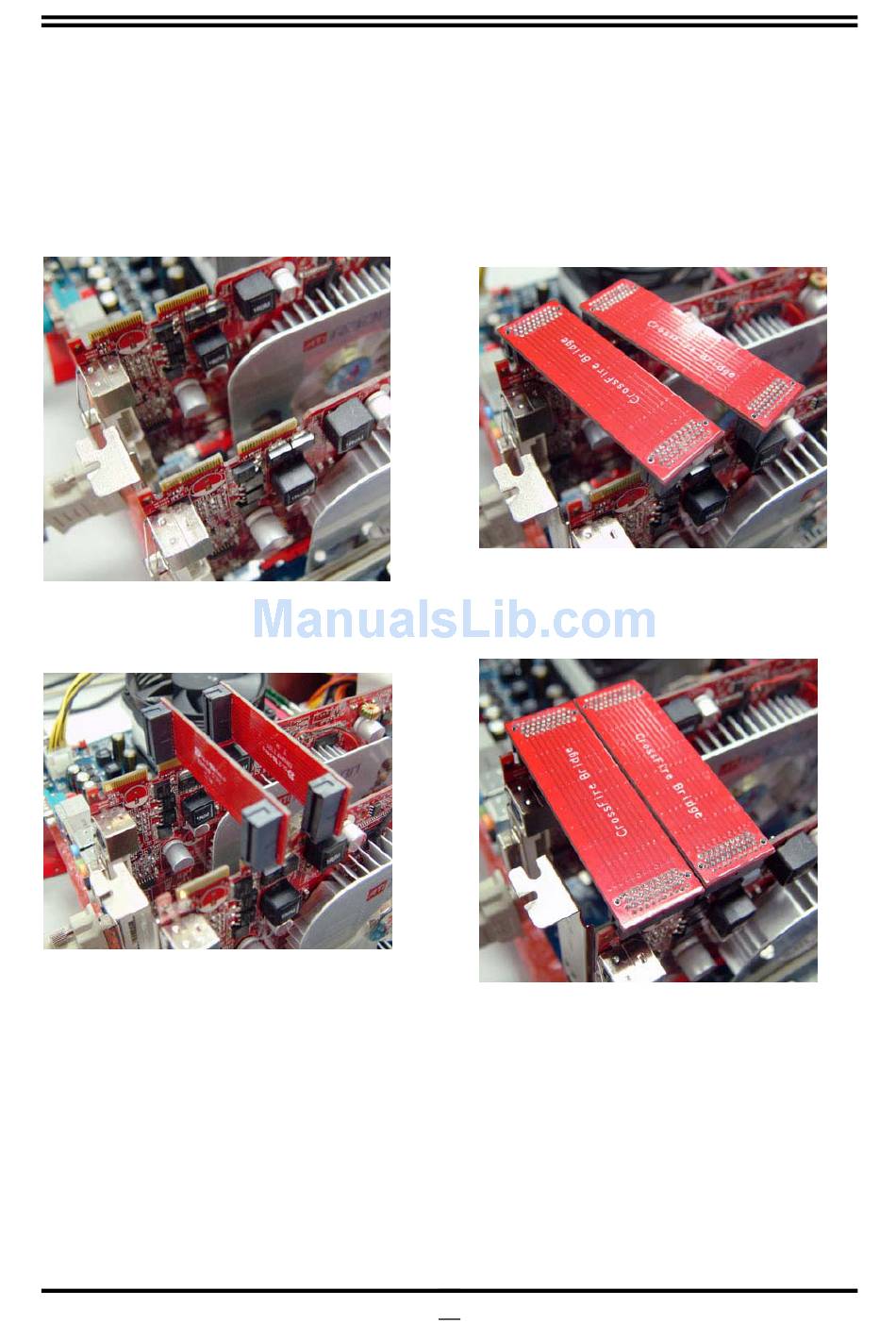

The following illustrations show you how to install the CrossFire Bridge Card.
Bridge for CrossFire Tech. Supported VGA Cards
In order to activate the CrossFire technology, you have to install the optional Bridge for your
CrossFire Tech. Supported VGA Cards before you activating the advance multi-GPUs
functions.
For CrissFire Bridge installation
1.
Install your CrossFire Tech Supported VGA
Cards in the PCI-E x16 slots.
3.
Be careful with the position for the pin you
would like to set up.
2.
Prepare with the CF Bridges with your
crossFire Tech Supported VGA Cards.
4.
Keep straight to force the CF Bridges plug
into both sides of CrossFire Tech
Supported VGA Cards.
17
