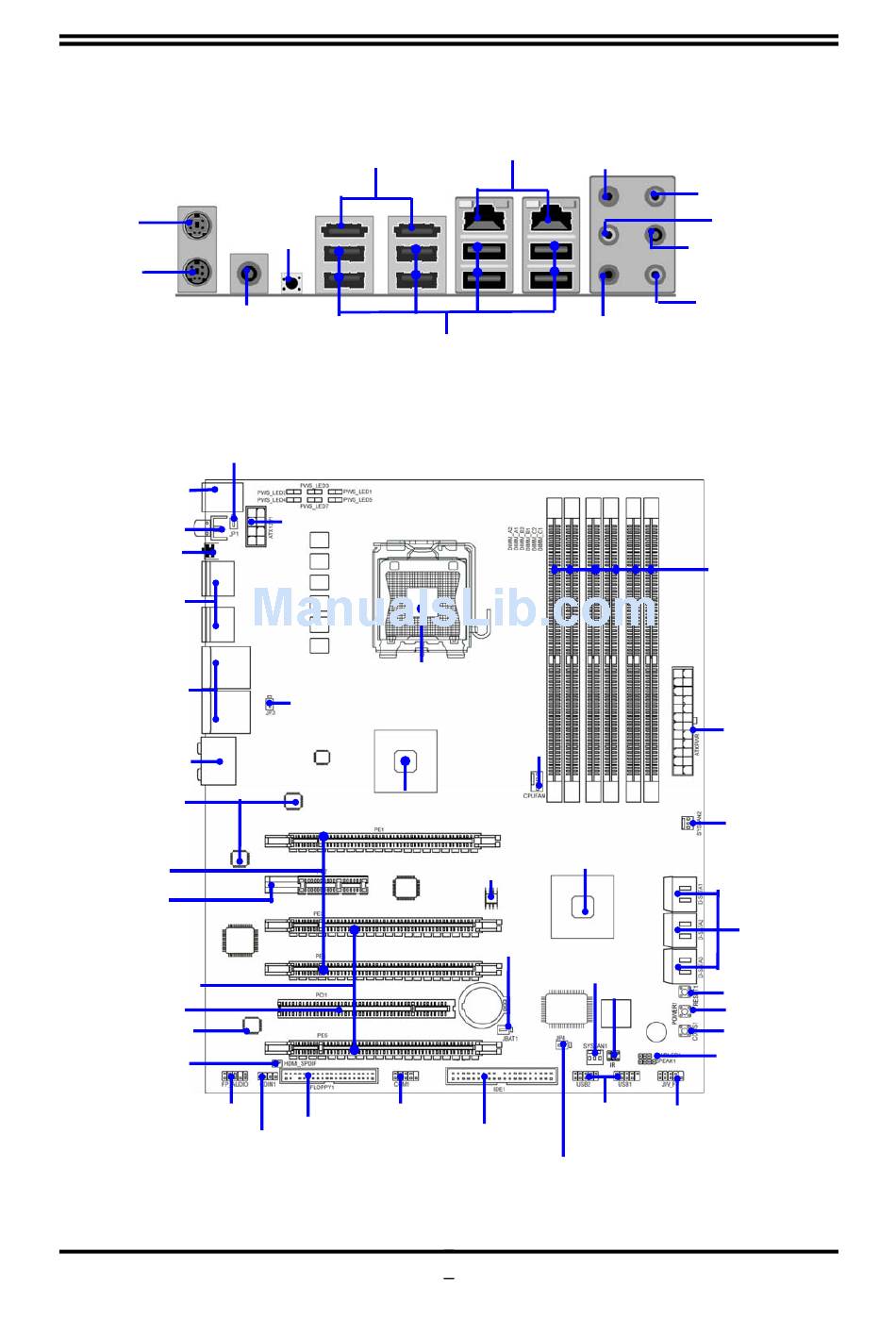

Layout Diagram

PS/2Mouse
(Green)
PS/2 Keyboard
（Purple）
KB/MS Power On Jumper (JP1)
PS2 KB/Mouse Port
Coaxial S/PDIF out.
CMOS2
E-SATA Ports
over USB Ports
RJ45 Ports
Over USB Ports
Audio Connector
RTL8111C
Gigabit LAN Chips
PCI-E 2.0 x16 @ 16 lane
(PE1, PE4)
PCI-E2.0 x4 slot
PCI-E 2.0 x16 @ 8 lane
(PE3, PE5)
32-bit PCI Slot
8-CH Azalia Audio Codec
HDMI-SPDIF
Front Panel Audio Header
ESATA Connectors
CMOS2
SPDIF-OUT1
ATX 12V Power Conn.
LGA 1366 CPU Socket
USB Power On Jumper (JP3)
Intel X58 Express
8Mbit SPI Flash ROM BIOS
Serial Port Header
Floppy Connector
CD Audio In
RJ-45 Ports
USB connectors
CPU FAN
Chipset
ICH10R
Chipset
Clear CMOS (JBAT)
ATA 133 IDE
Connector
USB Power On Jumper (JP4)
6
Line IN
(Blue)
CEN/BASS
(Black)
Line OUT (Green)
Surrback
（Orange）
Surround (Gray)
MIC-IN
（Pink）
DDR3 1600 DIMMs
Intel
SYS FAN1
IR Header
Power LED ／
Speaker Headers
USB headers
Front Panel
Header
ATX Power Connector
SYS FAN2
Serial-ATA2 Connectors
(D-SATA1, D-SATA2,
D-SATA3)
Reset Button
Power on Button
COMS1 Button
