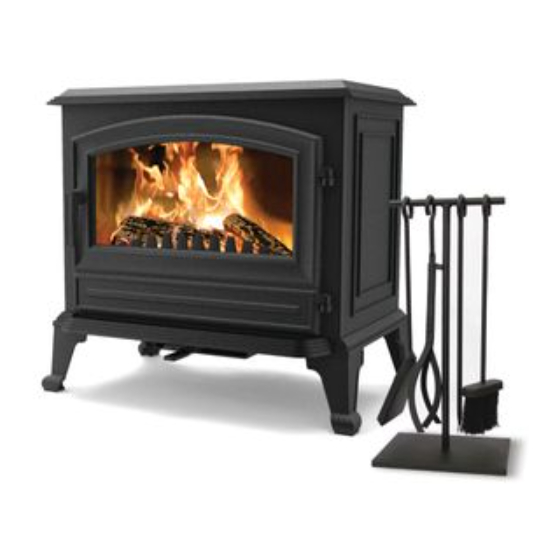

Broseley York Grande Installation And Operation Manual
Hide thumbs
Also See for York Grande:
- Installation and operation manual (20 pages) ,
- Installation and operation manual (18 pages)
Related Manuals for Broseley York Grande
Summary of Contents for Broseley York Grande

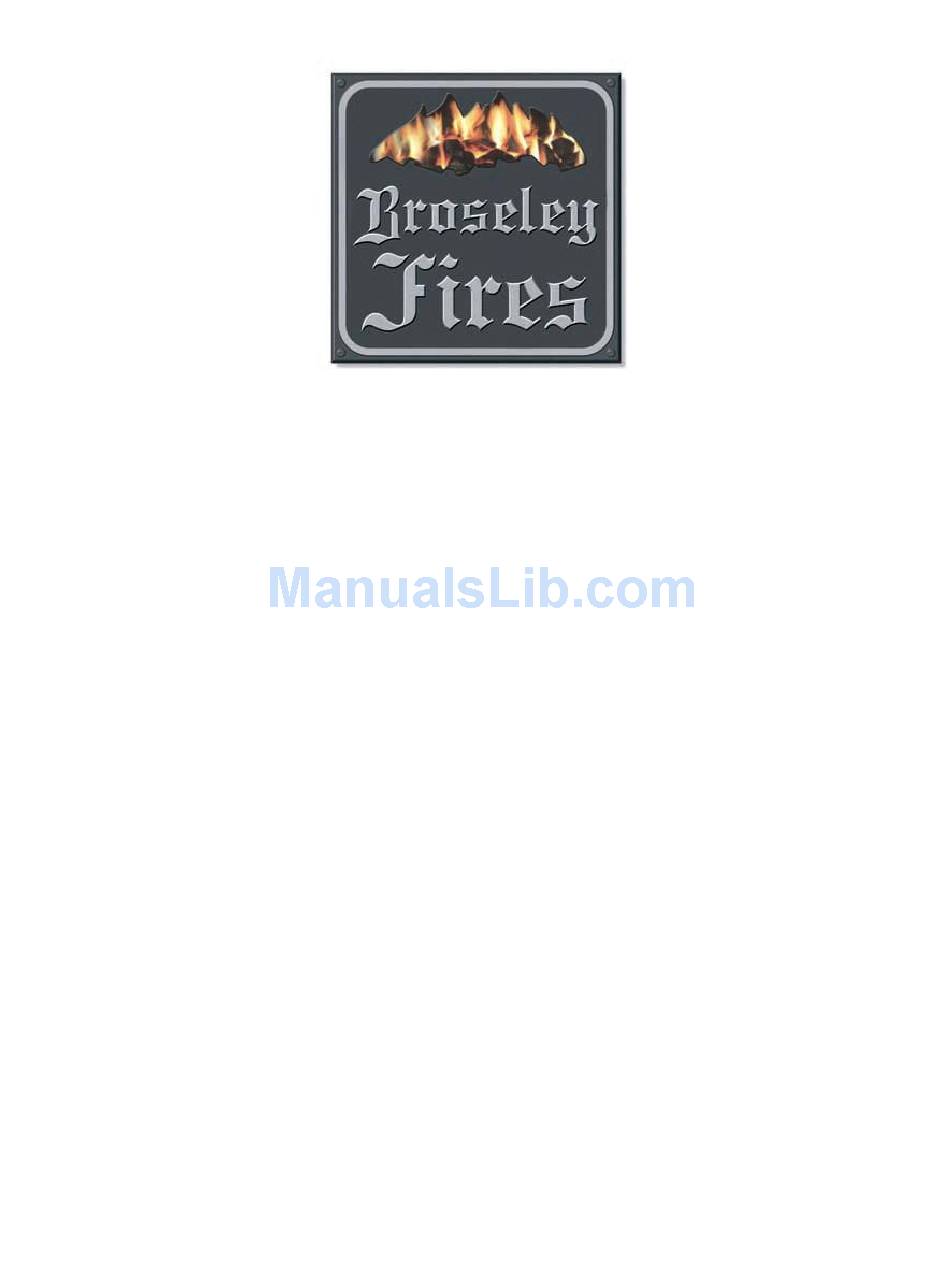

- Page 1 Installation and Operation Manual York Grande Gas Stove Grande GAS STOVE TO BE LEFT WITH THE CUSTOMER IMPORTANT NOTICE Revision: GB07a Revision: GB07a Revision: GB07a Revision: GB07a...
-
Page 2: Table Of Contents
..................…………………..Broseley Fires Ltd. -
Page 3: Dimensions & Details
2. DIMENSIONS & DETAILS A - Height ........……………...……….584mm (23") B - Height To Top Of Rear Flue Spigot . - Page 4 3. IMPORTANT INFORMATION APPLIANCE TO BE INSTALLED IN ACCORDANCE WITH NATIONAL REGULATIONS 1. The York Grande is a gas stove designed to run on either natural gas or LPG. The burner units are not interchangeable between the two types of gas. This stove is a radiant convector fuel-effect appliance.
- Page 5 4. SITING THE APPLIANCE The gas supply connection to the appliance is at the rear right hand side. The connection requires 8mm diameter semi-rigid pipe, not more than 1 metre in length. The appliance can be installed in any adequate area suitable for solid fuel fires and stoves To ensure maximum and efficient use of the stove, we recommend the following hearth specifications:...
- Page 6 Please check that the following components are included before you start on the assembly : Stove Box 1 x Cast Iron York grande Stove Body 4 x Stove Legs 4 x Sets of Nuts, Bolts and Washers, 2 burner retaining screws...
-
Page 7: Flue Connection
Gas Cowl. It is essential for the effective running of your stove that the chimney draws properly to allow the products of combustion to escape VENTILATION (GB ONLY) The York grande Gas stove is rated at less than 7 kW and therefore does not normally require additional ventilation in the room (BS5871-part II). -
Page 8: Gas Connection
Whilst arranging the coals, ensure that the pilot is not obstructed. Broseley Fires Ltd accept no responsibility for any injury sustained whilst handling hot ceramics. Before any ceramics are placed in position ensure that the burner is operating correctly. - Page 9 COAL LAYOUT Added Coals shown in white for identification only. Stage 1 Place the largest coal matrix firmly against the back of the stove & centrally about the mesh burner. Stage 2 Position the second coal matrix on top of the first coal matrix and place firmly to the back of the stove.
- Page 10 ARRANGING THE LAYOUT OF THE LOGS Take care when handling the fragile ceramic logs. Only the ceramic logs supplied with this appliance are to be used. Do not obstruct the pilot. Ensure the correct operation of the burner before positioning any of the logs. Clean the burner. The ceramic logs have location points on them that will help you locate them into the correct position.
-
Page 11: Operating The Stove
The York Grande Gas stove operates with a traditional permanent pilot light. The knob for ignition and power control is located on the lower right hand side of the stove The pilot light is located at the front middle of the coal matrix. - Page 12 (D) EXTINGUISHING THE STOVE BACK TO PERMANENT PILOT SETTING From any heat setting, depress control knob fully and turn clockwise to “Pilot” position. Release. (E) EXTINGUISHING THE STOVE FULLY From any heat setting or the permanent pilot, depress control knob and turn clockwise to “OFF”...
- Page 13 THE REMOTE CONTROL THE REMOTE CONTROL THE REMOTE CONTROL THE REMOTE CONTROL POSITIONING THE RECEIVER After fitting the batteries in the receiver and the hand set, place the receiver anywhere on the hearth. There is a long lead on the receiver to allow you to position the receiver towards the front of the hearth, if you wish to see the light come on when the handset is in use.
- Page 14 Transmitter Function Set the Display • After connecting the battery or by simultaneously pressing AUTO and TIMER, the display flashes. You are in set mode. • From set mode, press AUTO to switch from ° F (and 12 hour clock) to °...
- Page 15 • The “send“ symbol appears in the upper left corner of the display when either button is depressed. • The LED of the receiver flashes when knob B of the valve reaches its end stops. Automatic Mode (AUTO in display) for Temperature Control •...
-
Page 16: Test For Spillage
PLEASE EXPLAIN TO THE CUSTOMER THESE LIGHTING AND EXTINGUISHING PROCEDURES AND THAT IT IS NORMAL FOR THE STOVE TO GIVE OFF ODOURS WHILST THE PAINT MATURES. 11. NOTE TO THE INSTALLATION ENGINEER Please make sure the customer is familiar with the initial lighting and operating procedures before leaving the site and that this instruction booklet is left with them when the final commissioning is complete. -
Page 17: Troubleshooting
13. TROUBLESHOOTING THE GAS PILOT WILL NOT IGNITE OR STAY LIT • Ensure the gas is turned on at the alliance and the meter/cylinder. • Hold in the pilot gas button for at least twenty seconds once the pilot is alight to ensure the operation of the safety thermocouple valve. - Page 18 We hope these instructions are clear and helpful and you are able to enjoy the full benefits of your stove. Please keep this booklet handy for future reference. The manufacture and materials used in building your York Grande gas stove are guaranteed for one year provided the assembly and operation complies with these instructions.
-
Page 19: Natural Gas Propane
STOVE INSTALLATION SPECIFICATION & INFORMATION THIS SECTION TO BE COMPLETED AND SIGNED BY THE INSTALLATION ENGINEER Type gas supply (please tick) Natural (mains) Gas LPG supply in bulk LPG supply in cylinder Size of Governor setting: (i.e.) Natural Gas 20MBAR. LPG 37MBAR) Length and size of gas supply: Meter pressure. -
Page 20: Broseley Fires Ltd
The rights given in this guarantee are limited to the UK mainland and are in addition to any to which you may have a statutory entitlement. Please retain your purchase receipt. We will need to see this in the event of a claim under warranty. Broseley Fires Ltd Knights Way Battlefield Enterprise Park Shrewsbury...
