Installation & Operating Instructions
For Gas Q5 Stoves

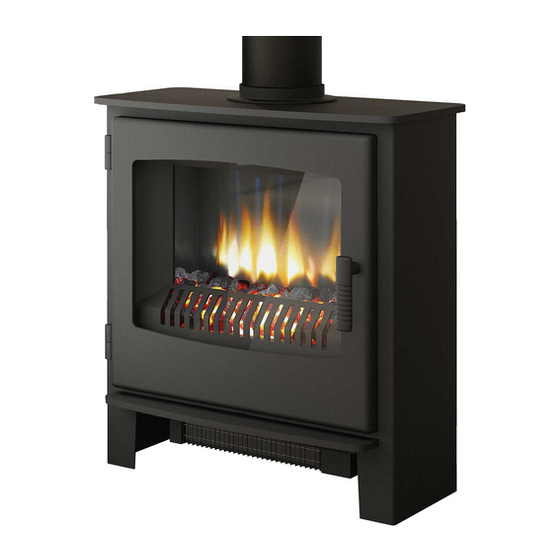

IGNITE 5 GAS STOVE – (CD1)
HEREFORD 5 GAS STOVE – (CD2)
DESIRE 5 GAS STOVE – (SD1)
Remote or Manual Control
Conventional, Top or Rear Flue, Natural Gas Stove
END USER
PLEASE LEAVE THESE INSTRUCTIONS WITH THE
Please note: Gas installations MUST only be carried out by installers who
are Gas Safe registered.
200753_1
Advertisement
Table of Contents
Related Manuals for Broseley IGNITE 5
Summary of Contents for Broseley IGNITE 5

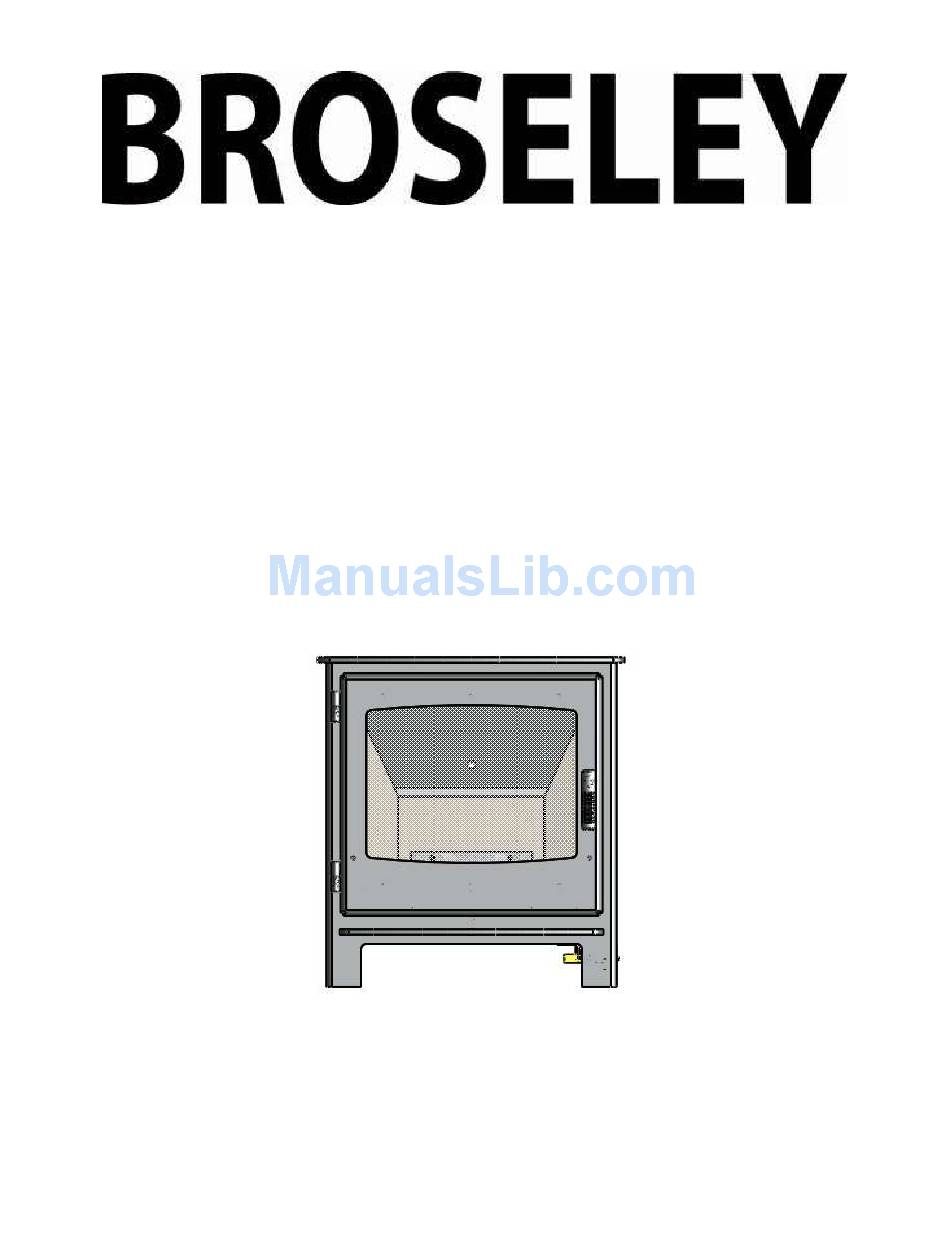

- Page 1 Installation & Operating Instructions For Gas Q5 Stoves IGNITE 5 GAS STOVE – (CD1) HEREFORD 5 GAS STOVE – (CD2) DESIRE 5 GAS STOVE – (SD1) Remote or Manual Control Conventional, Top or Rear Flue, Natural Gas Stove END USER...
-
Page 2: Table Of Contents
Contents Introduction Packing List Specification Dimensions Hearth Requirements Chimney Requirements Assembly Burner Installation Mica Board Installation Connecting the TTB Sensor Fitting the Decorative log retainer Ceramics Index 10-11 Positioning the logs 12-14 Gas Connection & Pressure Testing Spillage Testing Maintenance Operating the Stove Manual Control Version Operating the Stove Remote Control Version with Display 19-28... -
Page 3: Introduction
Introduction THANK YOU FOR PURCHASING A BROSELEY GAS STOVE Broseley Fires Ltd, a family run company, was founded as an appliance and design development company in 1975. Since then we have built up an enviable reputation for the quality, reliability and fuel efficiency of our stoves. -
Page 4: Specification
Specification Heat Input (Gross) 6.4kW Gas Category Supply Pressure 20 mbar Gas Rate 0.66 m Injector Size 7 x 0.73mm (Q5) 125mm (5”) Flue diameter Country of destination GB, IE Efficiency Class Class 2 Nominal Output 4.6kW NOx Class Please note this product is designed to only use natural gas G20. Dimensions Ignite CD1 Q5 - WEIGHT 61 Kg Hereford CD2 Q5 –... -
Page 5: Hearth Requirements
Hearth Requirements The appliance needs to be located onto a solid non-combustible hearth with a minimum thickness of 12mm. The hearth must be capable of withstanding the weight of the appliance. To ensure correct combustion the following minimum clearances must be adhered to NB Side measurements taken from the Lid of the stove (Dimension E on page 4): Rear measurement taken from the dilution box Material... -
Page 6: Chimney Requirements
Chimney Requirements Please note Broseley Fires do not provide flue pipes, closure plates or any other associated accessory. Top or Rear Flue Outlet The stove must be installed in accordance with current gas and buildings regulations BS5871: Part1. The appliance can be installed in any adequate area suitable for solid fuel fires and stoves. -
Page 7: Burner Installation
Assembly - Burner Installation The burner will come pre-fitted, however please ensure all components are present and fitted as per the information below prior to commencing installation. You will need a pozi drive screwdriver when fitting/replacing these items. 1) Remove the stove body from its packaging and stand it in position. 2) To open the door, remove the grub screw from the side of the handle then slide the handle off the hex nut. -
Page 8: Mica Board Installation
Assembly – Mica Boards First fit the rear mica board in front of the burner bracket as shown above and secure through the burner fixing points using the 2 x No.6 x 25 self -tapping screws provided. Rest the top mica board (2) onto the rear. Finally fit the remaining side mica board (4) Whilst holding the top mica in position and allow the top board to rest down onto it... -
Page 9: Connecting The Ttb Sensor
Assembly – Decorative Log Retainer Using the 2 off M5 C/Sunk Bolts provided, locate the decorative trim behind the stove opening as shown and secure in position. Assembly - Fitting TTB sensor With the burner installed, thread the wires from the interrupter to the TTB device (mounted on the rear panel of the stove). -
Page 10: Ceramics Index
Assembly - Positioning the Logs Ceramic Index 1 of 2 200753_1... -
Page 11: Positioning The Logs
Positioning the Logs Ceramic Index 2 of 2 200753_1... - Page 12 Ceramics which are placed other than in accordance with these instructions will be the sole responsibility of the fitter to rectify and Broseley Fires will not be liable for any associated costs. 1: Place the metal fuel bed against the...
- Page 13 Assembly - Positioning the Logs 4: Place log (K) with the thin end resting against logs (J) on the metal fuel bed. The large end locates into the recess provided in the front log matrixes (P). Ensure that all burner ports are clear from impingement;...
- Page 14 Assembly - Positioning the Logs 8: Place the third log (B) on top of the LHS Log (B) and resting over the short finger of log (F). Once in position the thin end of log (B) should touch the LHS mica board. 9: Now place the 3x small pine cones (S) resting on the nook in log (B) another on top of the RHS front matrix...
-
Page 15: Gas Connection & Pressure Testing
If the gas pressure is not as per above it will be the sole responsibility of the fitter to rectify and Broseley Fires will not be liable for any associated costs. -
Page 16: Spillage Testing
Spillage Testing A Spillage Test MUST be carried out before the installed fire is left with the customer. Carry out the test by first closing all doors and windows in the room containing the fire. Ensure that the fire is burning at full rate for a minimum of 10-15 minutes. Using a lighted smoke match, run it along under the rear edge of the stove. -
Page 17: Maintenance
Maintenance Door adjustment In the case of the door rope not providing an adequate seal to the room, products of combustion may enter the room (see warning notes), to ensure an adequate seal the door may need to be periodically adjusted as the rope seal wears with use. Hinge Adjustment (seal on Left hand side is not compressed): DESIRE (SD1) AND IGNITE (CD1) MODELS ONLY ... -
Page 18: Operating The Stove Manual Control Version
Operating the Stove - Manual Control Version It is important to read these instructions thoroughly before lighting the stove. The gas stove operates with a traditional permanent pilot light. The knob for ignition and power control are located on the lower right hand side of the stove, the indicator in the plate shows the knob position (Marked on knob) The pilot light is located at the front left corner of the front log matrixes. -
Page 19: Operating The Stove Remote Control Version With Display
Operating the Stove - Remote Control Version Quick start user instructions This control is situated on the lower right hand side of your fire. The drawing below shows the main features of the control. The control requires 3 AA size alkaline batteries to be inserted under the battery compartment cover. - Page 20 Operating the Stove - Remote Control Version Handset Ensure the power isolator switch on the front corner of Fire Control is in the on position I. NOTE: For safety reasons a button must be pressed and released for the command to be recognized.
- Page 21 Operating the Stove - Remote Control Version Operating instruction The handset comes already paired to work with the fire and the time set etc. Please read these instructions carefully and watch the instructional YouTube video through your internet web browser if necessary. Do not try pairing the handset thinking that it is not paired it is more likely the handset is not being pressed correctly.
- Page 22 Operating the Stove - Remote Control Version 3) Setting the time Should you have to set the time or change the time you need to enter the SETUP menu. Hold the handset to unlock the keypad and keep held throughout the following steps, (if you release too soon the menu will exit and you will have to start again).
- Page 23 Operating the Stove - Remote Control Version Setting the temperature display to Celsius or Fahrenheit Press and release the + or - button to toggle between C and F. When the display shows the desired symbol, press and releases the “SET”...
- Page 24 Operating the Stove - Remote Control Version Other Modes than Manual mode Depending upon the model of fire, your handset maybe enabled to have some automatic features, namely, Thermostat mode, timed thermostat mode and snooze mode. Snooze mode can be selected to work with in conjunction with either manual or thermostatic modes.
- Page 25 Operating the Stove - Remote Control Version Pairing Gas control with handset after handset has been made free to pair as above operation: Ensure all the batteries are fitted correctly and with the power isolator slide switch on the TESC Fire control put in the “I” position). ...
- Page 26 Operating the Stove - Remote Control Version Snooze mode in Thermostatic mode The same thing as above can be done before or during a thermostatic mode operation (see below). Thermostatic mode for closed fires The handset has within it a thermostat sensor and this can be set so the fire will heat the room to match the temperature set in the handset.
- Page 27 Operating the Stove - Remote Control Version For ease of setting there are two other modes that can be selected as stated above. Night mode (moon symbol) and frost protection setting (a snow flake). These can be selected (and adjusted if necessary) by pressing set then mode while in thermostat mode.
- Page 28 Operating the Stove - Remote Control Version Paging the handset If you have misplaced the handset you can page it by pressing the + button only on the fire control for around 5 seconds. The handset will flash and make a noise to help you to locate it.
-
Page 29: Cleaning The Stove / Curing The Paint
Maintaining the Stove Important Note: Should the glass door become broken or damaged in any way, turn your stove off and do not attempt to re-light it. Contact your dealer for a replacement to be fitted before relighting the appliance. The glass used in this appliance is a ceramic type glass suitable for operation up to 750 degrees do not use any other types of glass in this appliance. -
Page 30: Trouble-Shooting / Servicing
Trouble-shooting The gas pilot will not ignite or stay lit Ensure the gas is turned on at the appliance and the meter / cylinder. Is there a strong spark being generated, check connections if not. The pilot gas button must be held in for at least 20 seconds once the pilot is established to ensure the safety thermocouple is heated sufficiently. -
Page 31: Commissioning Form
Commissioning Form THIS SECTION MUST BE COMPLETED AND SIGNED BY THE INSTALLATION ENGINEER PLEASE LEAVE WITH THE CUSTOMER AND THE APPLIANCE. Size of Governor setting: (i.e.) Natural Gas 20mbar. Length and size of gas supply: _______________ Meter pressure Fire only on: ________________ Meter pressure with all other appliances on: __________________ Burner pressure Fire only on: _______________ Burner pressure with all other appliances on: __________________... -
Page 32: Guarantee
Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, or Be Modern, as they are unable to process any direct claim from an end user.
