- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS HERCULES These Instructions Cover the: 12, 20 & 30 RANGE OF MULTI-FUEL STOVES (WITH AND WITHOUT BOILERS) Revision: GB07c c c c Revision: GB07 Revision: GB07 Revision: GB07...

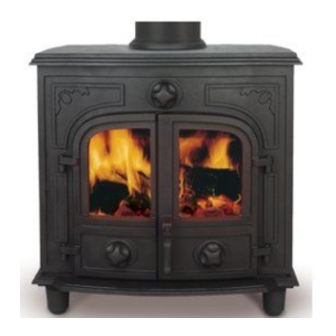

- Page 2 Thank you for choosing a Hercules cast iron multi-fuel stove. Please take time to read this manual and follow the guidelines on how to install and operate your new stove. This will help you to enjoy, for many years to come, safe and cost effective use of your stove.
- Page 3 INSTALLATION - BOILER MODELS ONLY All boiler models are fitted with four water pipe connection bosses each with a 1.5 inch BSP female tapping located on the outside rear face of the wrap-round boiler. The primary circuit supply to the hot water cylinder must be 28mm diameter pipe with the ‘flow’ pipe rising vertically from one of the top connection bosses to ensure good convectional flow and permit all air to evacuate the boiler.
- Page 4 WARNING !!! DO NOT HIT THE CASTING DIRECTLY - IF THE FRONT PLATE IS STILL NOT SECURE CHECK THE LOCATION AND SEATING OF THE FRONT PLATE AND LOCATION OF THE CATCHES AND PINS - THIS IS A SIMPLE AND STRAIGHT FORWARD OPERATION AND EXCESSIVE FORCE MUST NOT BE USED.
- Page 5 OPERATION IMPORTANT NOTICE !!! On the first occasion that a fire is lit in the stove, it must only be controlled to run at a ‘moderate’ temperature to allow the large cast iron panels to ‘cure’ through three daily cycles of even heating and cooling.
- Page 6 LIVING STYLE AND LOCAL AUTHORITY REGULATIONS MAY BE DIFFERENT TO OTHER FAMILIES IN THEIR HOMES. SO, IT IS VERY IMPORTANT THAT YOU RECEIVE GOOD QUALITY ADVICE FROM YOUR LOCAL RETAILER AND INSTALLER ABOUT WHICH HERCULES STOVE TO BUY AND HOW IT SHOULD BE INSTALLED TO SATISFY THE REQUIREMENTS FOR YOUR HOME.
- Page 7 ANNUAL SERVICE RECORD INSTALLATION DATE OF APPLIANCE: 1ST YEAR SERVICE completion date: SERVICE ENGINEER: . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: CONTACT NUMBER 2ND YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 3RD YEAR SERVICE completion date: SERVICE ENGINEER: .
-
Page 8: Limited Warranty
Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance from. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
