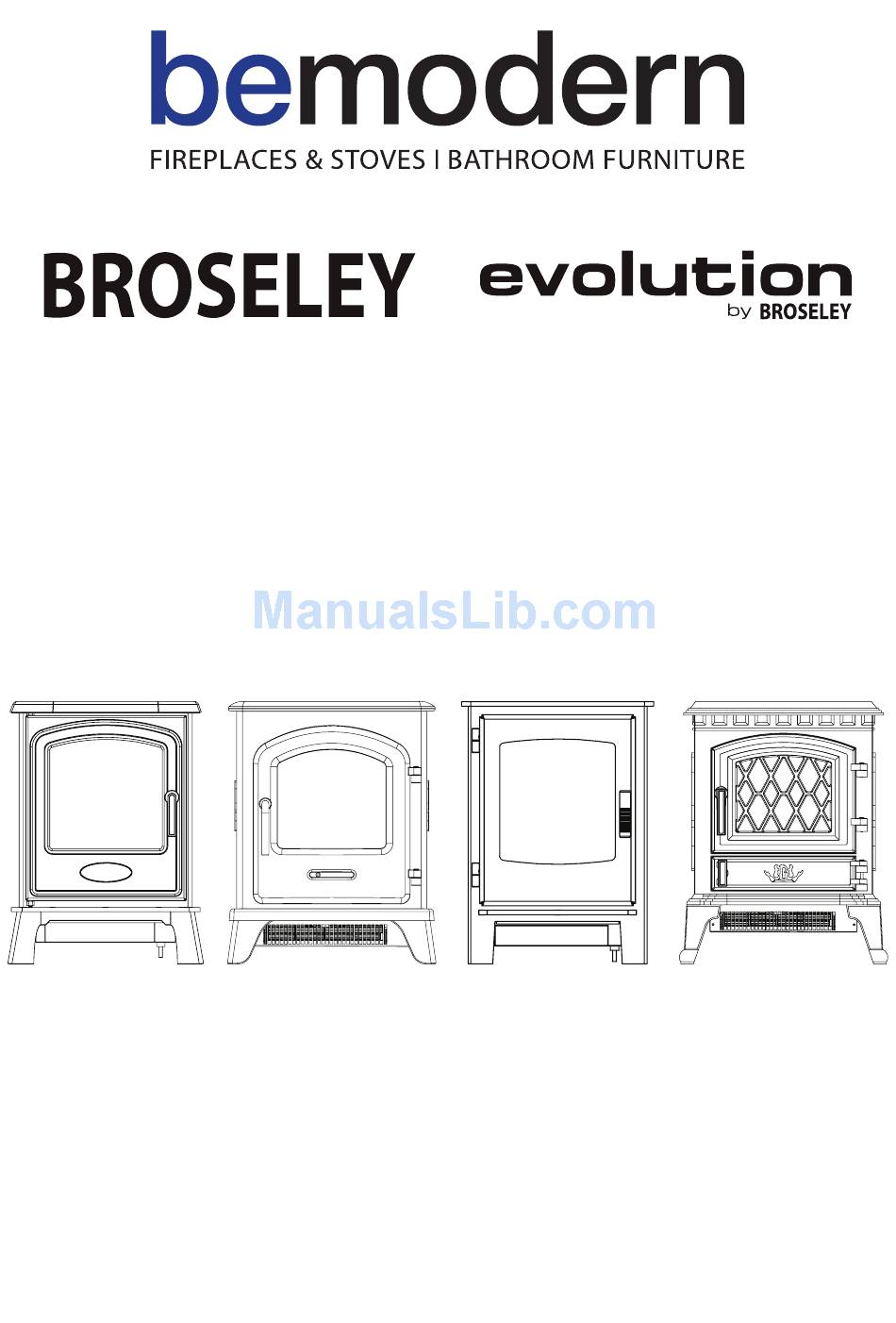

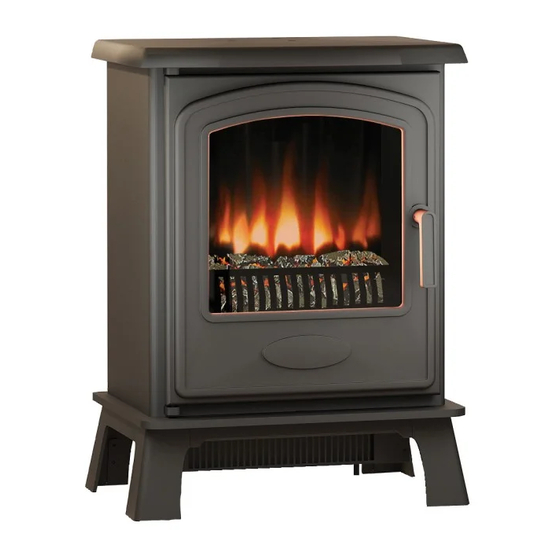

Installation & Operating Instructions
PLEASE NOTE THAT THIS APPLIANCE USES A MOTOR TO OPERATE THE
FLAME EFFECT AND THAT IT MAY BE POSSIBLE TO HEAR IT WHERE THE
BACKGROUND NOISE IS VERY LOW. THIS IS NORMAL AND SHOULD NOT
BE A CAUSE OF CONCERN.
These instructions should be read carefully and retained for future reference
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broseley Inset Ignite 6 Remote
Summary of Contents for Broseley Inset Ignite 6 Remote
- Page 1 Installation & Operating Instructions PLEASE NOTE THAT THIS APPLIANCE USES A MOTOR TO OPERATE THE FLAME EFFECT AND THAT IT MAY BE POSSIBLE TO HEAR IT WHERE THE BACKGROUND NOISE IS VERY LOW. THIS IS NORMAL AND SHOULD NOT BE A CAUSE OF CONCERN. These instructions should be read carefully and retained for future reference...
- Page 2 Contents Please see the relevant pages in the Assembly section for specific information on how to assemble your electric stove: Models Covered Page 2 Important Safety Advice Page 3 Technical Speciation Page 6 Assembly – York Midi and Serrano Free-Standing Page 6 Flame Effect Unit –...
-
Page 3: Important Safety Advice
Important Safety Advice Warning: this appliance must be earthed. The wires in the main lead to this appliance are coloured in accordance with the following code: GREEN and YELLOW Earth BLUE Neutral BROWN Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:... - Page 4 Important Safety Advice WARNING: In order to avoid overheating do not cover the heater. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to circuit that is regularly switched on and off by utility.
- Page 5 • Cleaning and user maintenance shall not be made by children without supervision. • Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...
-
Page 6: Assembly – York Midi And Serrano Free-Standing
TECHNICAL SPECIFICATION Supply Voltage: AC220V-240V 50Hz Maximum power consumption: 2KW Heat output: Nominal heat output (Pnom): 2KW Minimum heat output (indicative) (Pmin): 1KW Maximum continuous heat output (Pmax): 2KW Auxiliary Electricity Consumption: At nominal heat output (elmax): 12.5W At minimum heat output (elmin): 12W In standby mode (elSB): 0.36W Type of heat output / room temperature control Two or more manual stages, no room temperature control... - Page 7 Assembly Sequence: Assembly Sequence: 1. Carefully remove all packaging and protective materials from the stove body. Remove and discard the „transit bar‟ from stove body. This item stops the sides of the stove body from moving in transit. It has been positioned into the vertical channels where the Flame Effect Unit is to be slotted into place.
-
Page 8: Flame Effect Unit – Position Within Stove Body
Flame Effect Unit – Position within stove body Side View Top View 11. Finally place the cast iron lid back on the stove. Assembly – York Midi and Serrano Free-Standing Ignite 5/Desire5 Freestanding Remote Ignite 5/Desire 5 Freestanding Manual Ignite 6/Desire 6 Freestanding Remote Ignite 6/Desire6 Freestanding Manual Ignite 7/Desire7 Freestanding Remote Ignite 7/Desire7 Freestanding Manual Hereford 5 Freestanding Remote... -
Page 9: Assembly – Inset Desire, Ignite & Hereford
The floor fixing points also provide adjustment to level up the product when placed on an un-even surface. Front Adjustment is provided by two concealed bolts (under the base). The wall cable will need to be passed through the hook fixing on the wall. It can then be adjusted to length and locked using the fixing on the left hand side (rear of stove body). - Page 10 Please unpack carefully ensuring that any loose parts and all packing items are removed. Read any warning labels carefully (see Maintenance Section). Place waste packaging back into box and dispose of RESPONSIBLY. The appliance must be positioned so that plug (fused spur) is accessible. Only when you are certain that you have completed the following installation instructions should you plug in and switch on at the wall socket.
-
Page 11: Assembly – Desire, Ignite And Hereford Inset
Assembly – Desire, Ignite and Hereford Inset Inset Ignite 6/Desire6 Remote Inset Ignite 6/Desire6 Manual Inset Hereford 5 Remote Inset Hereford 5 Manual Fitting to a Fire Surround Back Panel Measure the thickness of your back panel that the fire is to be fixed to, for panels 18mm –... - Page 12 Re-attach the main body to the engine unit using the four fixings and slide the assembled unit into the fireplace opening. Mark the two wall fixing points and remove the fire from the opening to enable drilling/wall fixing. Re-position the fire and make any necessary electrical connections.
- Page 13 Door Fitting. Desire & Ignite Inset: The Door assembly supplied should be ready to fit, once the fire is installed then hang the Door onto the hinges fixed on the main body by locating the hinges on the door over the top of the hinges on the main body, move the door open and closed a few times so that the hinge mates correctly.
-
Page 14: Operating Your Stove
Operating Your Stove The appliance can be operated by both remote control and the manual controls on the appliance. NOTE: To use both remote and manual functions the manual on/off switch must be in ‘-’ position. In order to prevent the product becoming too hot, there is 10s delay when turning on the heater and a 10s delay when turning off the heater. - Page 15 Remote Controls NOTE: This is thermostatic remote control. The remote should be in the same room as fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect thermostatic reading. The communication frequency between the fire and remote has already been set up. If you cannot use the remote with the fire, please follow instructions Step R31 to initiate this connection in point.
- Page 16 Standby for Remote Handset The screen shown to the right is when the remote handset is in standby mode. Turn on/off Press to turn on the flame effect, turn off Before Day/Time set flame effect and heater when in normal mode Press to turn on/off the flame effect under daily and weekly timer mode.
- Page 17 Count Down Timer NOTE: This setting is only for normal mode. It allows the appliance to go into standby after a set period of time. R10 Press to cycle through the settings from Off and 0.5 hours to 9 hours. The timer logo and time will show on the screen.
- Page 18 R16 Hold the button for 6 seconds to enter the daily timer setting. Max 3 timed heating periods for a day. • Press ‘←’ or ‘→’ to choose hour or minute, press ‘+’ or ‘-’ to set the number. • Minute will increase/decrease by 15 minutes per press.
- Page 19 R21 Press until shows at the upper right corner of the screen, then enter the week timer heating mode. R22 Hold button for 6 seconds to enter the week timer setting. Press ‘←’ or ‘→’ to move the cursor (a flashing underline), press the button in the corresponding week position to select (the character is highlighted) or cancel (the...
- Page 20 Adaptive Start Control R28 According to room temperature and set temperature, the heater will automatically come on in time to heat the room to the set temperature at the set time. For example, if your timer is set to start at 18:00 and temperature is set to 23°C, the fire will come on at 17:30 to ensure the room is 23°C at 18:00.
- Page 21 Resetting the Thermal Cut Out R33 The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device, which switches off the fire if, for any reason, the appliance overheats, e.g. when covered. If the heater stops operating while the flame effect continues working normally, this indicates that the E.S.
-
Page 22: Maintenance
Maintenance WARNING: Before undertaking any maintenance or cleaning disconnect your appliance from main supply and ensure it is completely cool. Only competent persons should service / repair these appliance. Remote Handset Battery Replacement • When the batteries are at full power, the battery symbol will show •... -
Page 23: Guarantee
Please note your point of contact with regards to any warranty claims is the retailer from whom you purchased the appliance. Broseley Fires Ltd. (the ‘Company’) provides a Twelve month guarantee in respect to electric stoves (the ‘Product’) ranges. 1. The Twelve month Guarantee applies to: A. - Page 24 Maximum transmit power: 20171110 10mW Hardware: RF290A-TX-V1.3 Software: RF290A_C_V0.6.0.hex Broseley Fires Ltd. Be Modern Ltd. First Floor Unit B, Knights Court 19/34 Bedesway Archers Way, Battlefield Enterprise Park Bede Industrial Estate Shrewsbury SY1 3GA Jarrow, Tyne and Wear NE32 3BE...
