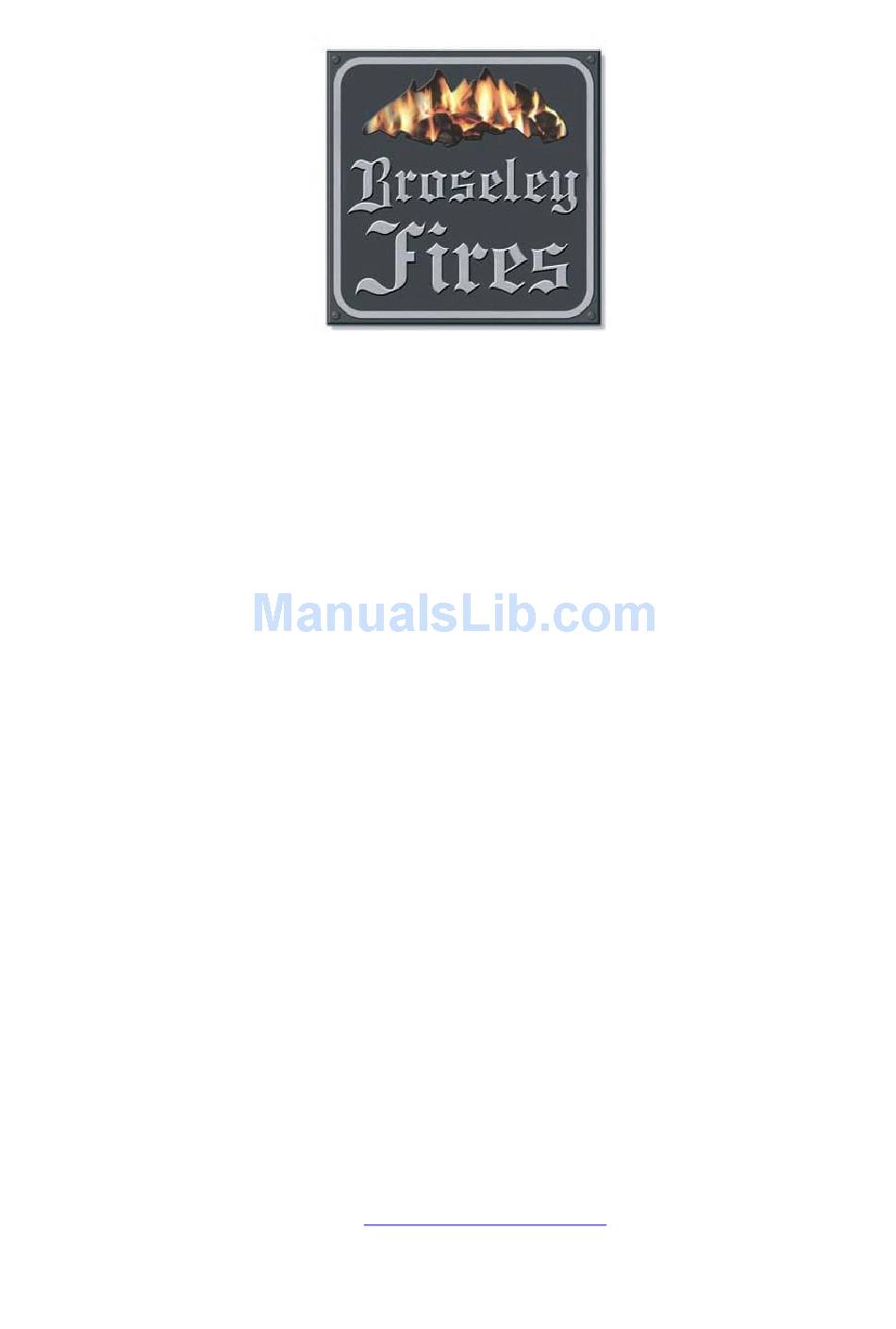

Installation and Operation Manual
MULTI FUEL STOVE
(THESE INSTRUCTIONS COVER ALL 'YORK' MODELS)
TEL: 01743-461444
KNIGHTS WAY, BATTLEFIELD INDUSTRIAL ESTATE, SHREWSBURY,
Revision: GB07c c c c
Revision: GB07
Revision: GB07
Revision: GB07
YORK
BROSELEY FIRES LTD.
SHROPSHIRE. SY1-3AB
e-mail:
www.broseleyfires.com
FAX: 01743-461446

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YORK and is the answer not in the manual?

Questions and answers

Related Manuals for Broseley YORK

Summary of Contents for Broseley YORK

  • Page 1 Installation and Operation Manual YORK MULTI FUEL STOVE (THESE INSTRUCTIONS COVER ALL ‘YORK’ MODELS) BROSELEY FIRES LTD. TEL: 01743-461444 FAX: 01743-461446 KNIGHTS WAY, BATTLEFIELD INDUSTRIAL ESTATE, SHREWSBURY, SHROPSHIRE. SY1-3AB e-mail: www.broseleyfires.com Revision: GB07c c c c Revision: GB07 Revision: GB07...

  • Page 2: Installation

    This is not possible with a multi-fuel stove. For the York Midi there is no requirement for additional ventilation (output 5kW). For the York Grande (8kW) the requirement is for a vent measuring 16.5 square centimetres.
  • Page 3 5. A properly built masonry or factory installed chimney, preferably with a height of 4 metres (15 feet) or more, should ensure a consistent draught (draw) under a variety of weather conditions. This stove requires a chimney (not the flue pipe) with a minimum diameter of 150mm (6”). If the chimney and cavity are larger, this may result in less than optimum performance to an extent where it may require a liner to improve the draw and performance of the stove.

  • Page 4: Operation

    Operation Curing the Stove Your stove is made of a number of cast iron components and we recommended that the first burn should be a small fire for about 30 minutes. This enables the stresses and strains at the joints to be taken up and settle gradually. The second burn can be a larger fire for an hour.

  • Page 5: Burning Coal

    BURNING COAL Coal needs a flow of air for combustion though the bottom of the grate. This air also cools the grate reducing the likelihood of it burning out. Control a coal fire with the spinners in the ash door. Wood does not require this under grate air and will readily burn on a bed of ash with a flow of air over the top.

  • Page 6: Troubleshooting

    Trouble-Shooting 1. Smoke comes out of the stove when the loading door is opened. • The chimney cavity into which the 125mm flue pipe has been installed may be less than the minimum 150mm requirement. • Deposits (soot) may have built up in the chimney and be restricting the flow of waste products.

  • Page 7: Annual Service Record

    ANNUAL SERVICE RECORD INSTALLATION DATE OF APPLIANCE: 1ST YEAR SERVICE completion date: SERVICE ENGINEER: . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: CONTACT NUMBER 2ND YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 3RD YEAR SERVICE completion date: SERVICE ENGINEER: .

  • Page 8: Limited Warranty

    Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance from. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
