Installation and Operation Manual
Tested to EN 13240
THIS APPLIANCE MUST BE INSTALLED AND COMMISSIONED BY A FULLY QUALIFIED,
REGISTERED ENGINEER.
A "Declaration of Completion" Certificate must be obtained for the installation and retained by the
end user. Failure to comply with these requirements may void the warranty.
York M/F 1
York
Petite, Midi & Grande
Multi Fuel Stoves
TJ08A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broseley York Petite
Summary of Contents for Broseley York Petite
- Page 1 Installation and Operation Manual York Petite, Midi & Grande Multi Fuel Stoves Tested to EN 13240 TJ08A THIS APPLIANCE MUST BE INSTALLED AND COMMISSIONED BY A FULLY QUALIFIED, REGISTERED ENGINEER. A “Declaration of Completion” Certificate must be obtained for the installation and retained by the end user.

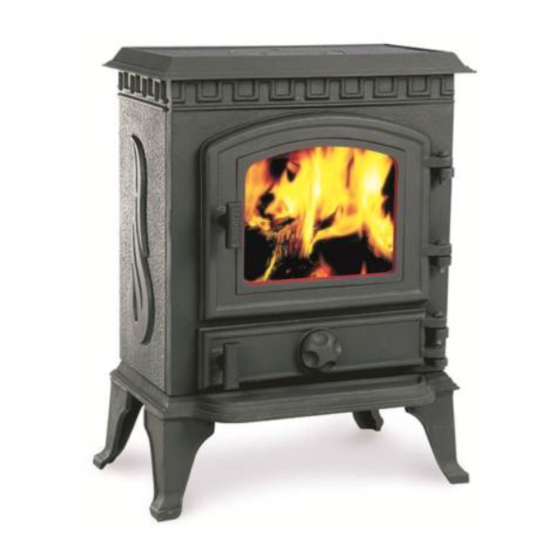

- Page 2 YORK MULTIFUEL STOVES INSTALLATION AND OPERATION MANUAL Thank You May we take this opportunity to thank you for choosing a York, cast iron Multi-fuel stove. Please take time to read this manual and follow the guidelines on how to install and operate your new stove, as we feel sure it will enable you to use it to its best advantage for many years.
-
Page 3: Installation Of Stove
It should be noted that it is an offence to burn wood logs in this stove if it is installed within a Smoke Control Area in the UK. The nominal heat outputs for the stove are as follows: York Petite York Midi York Grande Heat Output 4.4 kW... - Page 4 Hearth Your stove must be installed on a solid, level non-combustible hearth and with a gap of at least 600mm from any combustible material such as beams or skirting. The hearth protrusion in front of the stove to carpets or wooden floors must be at least 300mm. As it is possible, that on opening the door of the stove for fuel to fall out, a fender must be fitted if the hearth is flush with the carpet.
- Page 5 If there is no existing chimney then either a prefabricated block chimney in accordance with Building Regulations Approved Document J or a twin walled insulated stainless steel flue to BS 4543 can be used. These chimneys must be fitted in accordance with the manufacturer’s instructions and Building Regulations.
-
Page 6: Combustion Air Supply
must be paid to any build up of deposits in the flue and regular cleaning undertaken. Fuels such a bituminous coal, untreated wood or compressed paper are not smokeless or low volatiles fuel. To get the best transfer of heat from the stove into the room there are two factors to consider when installing into a fireplace recess. - Page 7 STEP BY STEP GUIDE FOR FITTING NEW YORK FIREBRICK SETS Please remove Grate and Ash pan before fitting fire bricks STEP 1. STEP 2. Fit Left Side Brick first with angle facing rear Insert Right Side Brick same as step 1. of stove.
- Page 8 Commission/Handover Ensure loose parts are fitted in accordance with the instructions for “Assembly” given above. On completion of the installation allow a suitable period of time for any fire cement and mortar to dry out, when a small fire may be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere.
-
Page 9: Operation Of Stove
OPERATION OF STOVE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE STOVE Controls Layout York Grande Secondary Air Control (spinner control) Primary Air Control (push/pull lever) York Midi Secondary Air Control (spinner control) Primary Air Control (push/pull lever) Ash Pan The ash pan can be removed using the double end of the poker which fits under the top lip of the ash pan. -
Page 10: Air-Wash System
Air-wash System This is a system where secondary air is drawn into the stove (by combustion) through the air control under the ash lip and deflected down the back face of the glass, thus preventing the smoke coming into contact with the glass. It does not mean that you will never have to clean the glass, but substantially lengthens the periods between having to do so. - Page 11 Curing the Stove Before lighting the stove check with the installer that the installation work and commissioning checks described in the installation instructions have been carried out correctly and that the chimney has been swept clean, is sound and free from any obstructions.
-
Page 12: Burning Solid Fuel
Under NO circumstances burn ‘petroleum coke’ as it will burn out the internal grate and baffle plates in a very short period of time and may damage the stove beyond repair. Only burn dry, seasoned wood. This will give a good heat yield and help to keep the glass clean. -
Page 13: Burning Wood Logs
BURNING WOOD LOGS If you are only burning wood logs, you may allow a bed of ash to build up on top of the grate to a level of about 20mm forming a flat surface on which the wood may burn. -
Page 14: Chimney Fires
Use of operating tools Always use the operating tools provided when handling parts likely to be hot when the stove is in use. Chimney Fires If the chimney is thoroughly and regularly swept, chimney fires should not occur. However, if a chimney fire does occur turn the air control setting to the minimum, and tightly close the doors of the stove. -
Page 15: Troubleshooting
Trouble-Shooting 1. Smoke comes out of the stove when the loading door is opened. • The chimney cavity into which the 125mm flue pipe has been installed may be less than the minimum requirement. • Deposits (soot) may have built up in the chimney and be restricting the flow of waste products. - Page 16 ANNUAL SERVICE RECORD INSTALLATION DATE OF APPLIANCE: 1ST YEAR SERVICE completion date: SERVICE ENGINEER: . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: CONTACT NUMBER 2ND YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 3RD YEAR SERVICE completion date: SERVICE ENGINEER: .
- Page 17 Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
