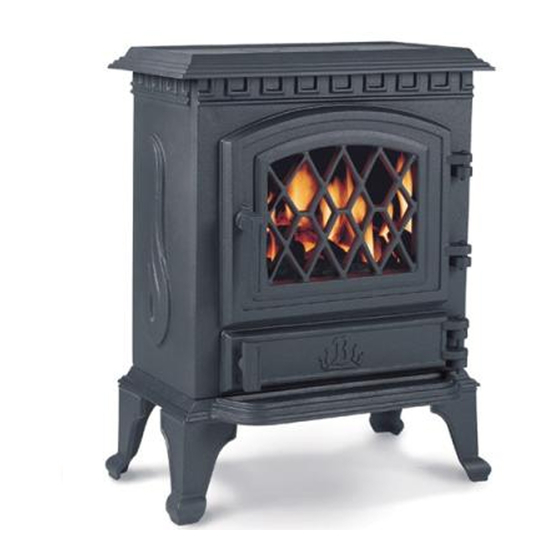

Broseley York Midi Operation Manual
Gas stove
Hide thumbs
Also See for York Midi:
- Installation & operating instructions manual (20 pages) ,
- Installation and operation manual (19 pages) ,
- Installation manual (12 pages)
Related Manuals for Broseley York Midi
Summary of Contents for Broseley York Midi

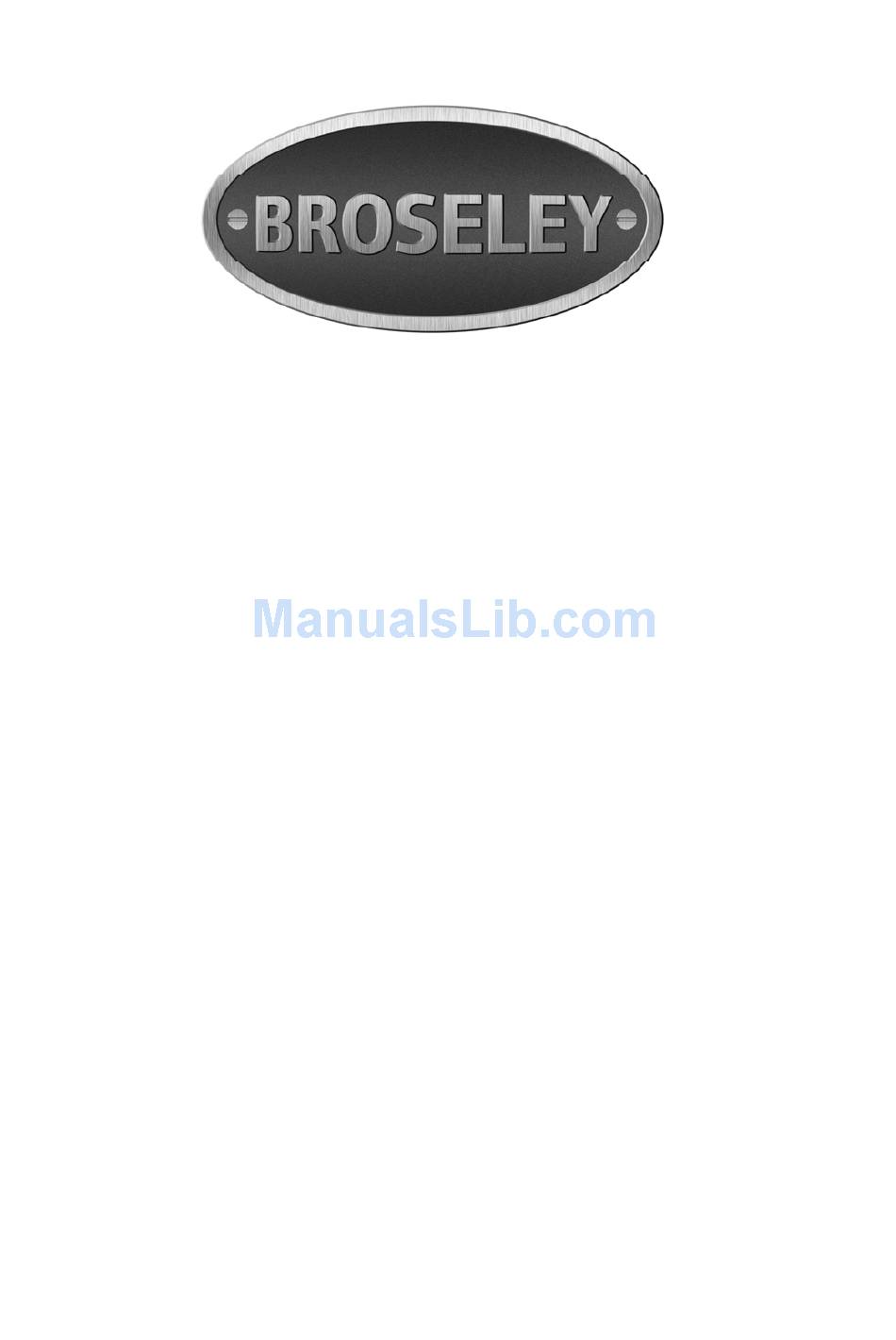

- Page 1 Installation and Operation Manual York Midi Gas Stove Revision: TJ09b © 2007-2008 Broseley Fires Ltd...
-
Page 2: Technical Information
..................………………..Broseley Fires Ltd. Knights Way, Battlefield Enterprise Park, Shrewsbury, Shropshire SY1 3AB Tel: 01743 461444 Fax: 01743 461446 © 2007-2008 Broseley Fires Ltd... - Page 3 Weight Excluding Optional Canopy .....65kg (143 lbs) Maximum Heat Output (approx) ..... . 4.6 kilowatts © 2007-2008 Broseley Fires Ltd...
- Page 4 APPLIANCE TO BE INSTALLED IN ACCORDANCE WITH NATIONAL REGULATIONS 1. The York Midi is a gas stove designed to run on either natural gas or LPG. The burner units are not interchangeable between the two types of gas. This stove is a radiant convector fuel-effect appliance.
- Page 5 If the appliance has to be located in an opening, there must be a clearance of a minimum of 100mm each side of the stove to any non-combustible materials. The rear of the appliance should have a minimum 75mm air gap between the stove and the back wall. © 2007-2008 Broseley Fires Ltd...
- Page 6 Finally, locate the self-tapping screw through the bracket provided on the rear of the burner to prevent any small movement when making adjustments to the gas control. © 2007-2008 Broseley Fires Ltd...
- Page 7 CORGI registered installer and passed as suitable/sound. The York Midi Gas Stove is suitable for both Class I & II flues (The Building Regulations 1984).The appliance is also suitable for pre-cast flues, pre-cast chimney block, pre-cast...
- Page 8 Whilst arranging the coals, ensure that the pilot is not obstructed Broseley Fires Ltd accept no responsibility for any injury sustained whilst handling hot Ceramics Before any ceramics are placed in position ensure that the burner is operating correctly.
- Page 9 There should be no loose coals on top of the matrix that is positioned over the pilot. IMPORTANT Please follow these instructions carefully. Ceramics that are positioned incorrectly could seriously alter the performance of your appliance. © 2007-2008 Broseley Fires Ltd...
- Page 10 EXTINGUISHING PROCEDURES AND THAT IT IS NORMAL FOR THE STOVE TO GIVE OFF ODOURS WHILST THE PAINT MATURES. The York Midi Gas Stove operates with a traditional permanent pilot light. The knob for ignition and power control is located on the lower right hand side of the stove.
- Page 11 “OFF” Position. Should the Glass door become broken or damaged in any way, turn your stove off and do not attempt to re-light it. Contact your dealer to organise for a replacement to be fitted before re-lighting the appliance. © 2007-2008 Broseley Fires Ltd...
- Page 12 The G30-ZRPTT is intended for use only with motorized gas combination controls models GV34 (or GV36 retrofitted with a motor). The receiver cable must be firmly plugged onto the flat blade connectors (motor: 6,3 and 4,8mm; micro switch: both 2,8mm, see llustration 2). © 2007-2008 Broseley Fires Ltd...
- Page 13 • To incrementally increase or decrease the flame height lightly tap either the (p) or (q) button. • The “send“ symbol appears in the upper left corner of the display when either button is depressed. © 2007-2008 Broseley Fires Ltd...
- Page 14 If a low flame is sufficient to provide enough warmth to the room, then the appliance will cycle between low fire and off. This allows longer periods with the flame on and provides a more uniform room temperature. © 2007-2008 Broseley Fires Ltd...
- Page 15 Should the appliance turn itself off, wait for a minimum of 3 minutes before attempting to re-light the appliance. In the event of your stove tripping out, consult your installation engineer to have the flue/chimney checked. © 2007-2008 Broseley Fires Ltd...
- Page 16 • See that the burner is burning evenly across the whole of the mesh surface without any coals in place © 2007-2008 Broseley Fires Ltd...
- Page 17 We hope these instructions are clear and helpful and you are able to enjoy the full benefits of your stove. Please keep this booklet handy for future reference. The manufacture and materials used in building your York Midi gas stove are guaranteed for one year provided the assembly and operation complies with these instructions.Accidental damage and all consumables including the glass door seals are...
- Page 18 Is the aeration of the pilot correct: Is the FFD Phial in the correct position in the pilot flame: Does the flame encircle the FFD: Installation Engineers Name: Address Post Code Telephone: Fax: Mobile: Corgi Registered: Yes Number Signed: Date: © 2007-2008 Broseley Fires Ltd...
- Page 19 Please retain your purchase receipt. We will need to see this in the event of a claim under warranty. Broseley Fires Ltd Knights Way Battlefield Enterprise Park Shrewsbury SY1 3AB Telephone + 44 (0) 1743 461 444 Fax + 44 (0) 1743 461 446 © 2007-2008 Broseley Fires Ltd...
