Broseley York Installation And Operation Manual
Multi fuel stoves
Hide thumbs
Also See for York:
- Operation manual (5 pages) ,
- Installation and operation manual (9 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Operating Manual
Installation and Operation Manual
Tested to EN 13240
THIS APPLIANCE MUST BE INSTALLED AND COMMISSIONED BY A FULLY QUALIFIED,
REGISTERED ENGINEER.
A "Declaration of Completion" Certificate must be obtained for the installation and retained by the
end user. Failure to comply with these requirements may void the warranty.

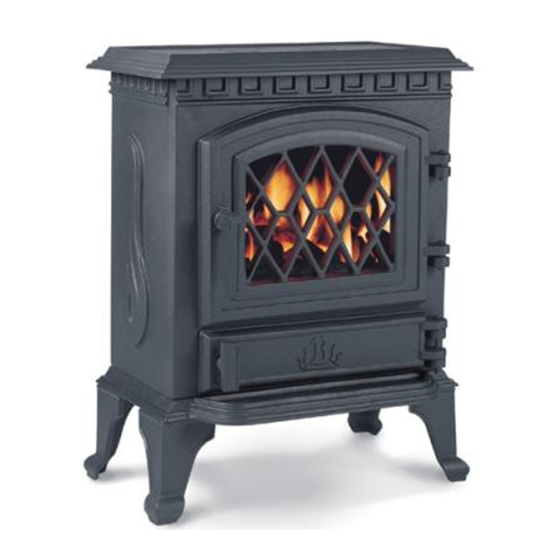

York
Petite, Midi & Grande
Multi Fuel Stoves
TJ09C
© 2007-2008 Broseley Fires Ltd
Advertisement
Table of Contents
Related Manuals for Broseley York
Summary of Contents for Broseley York

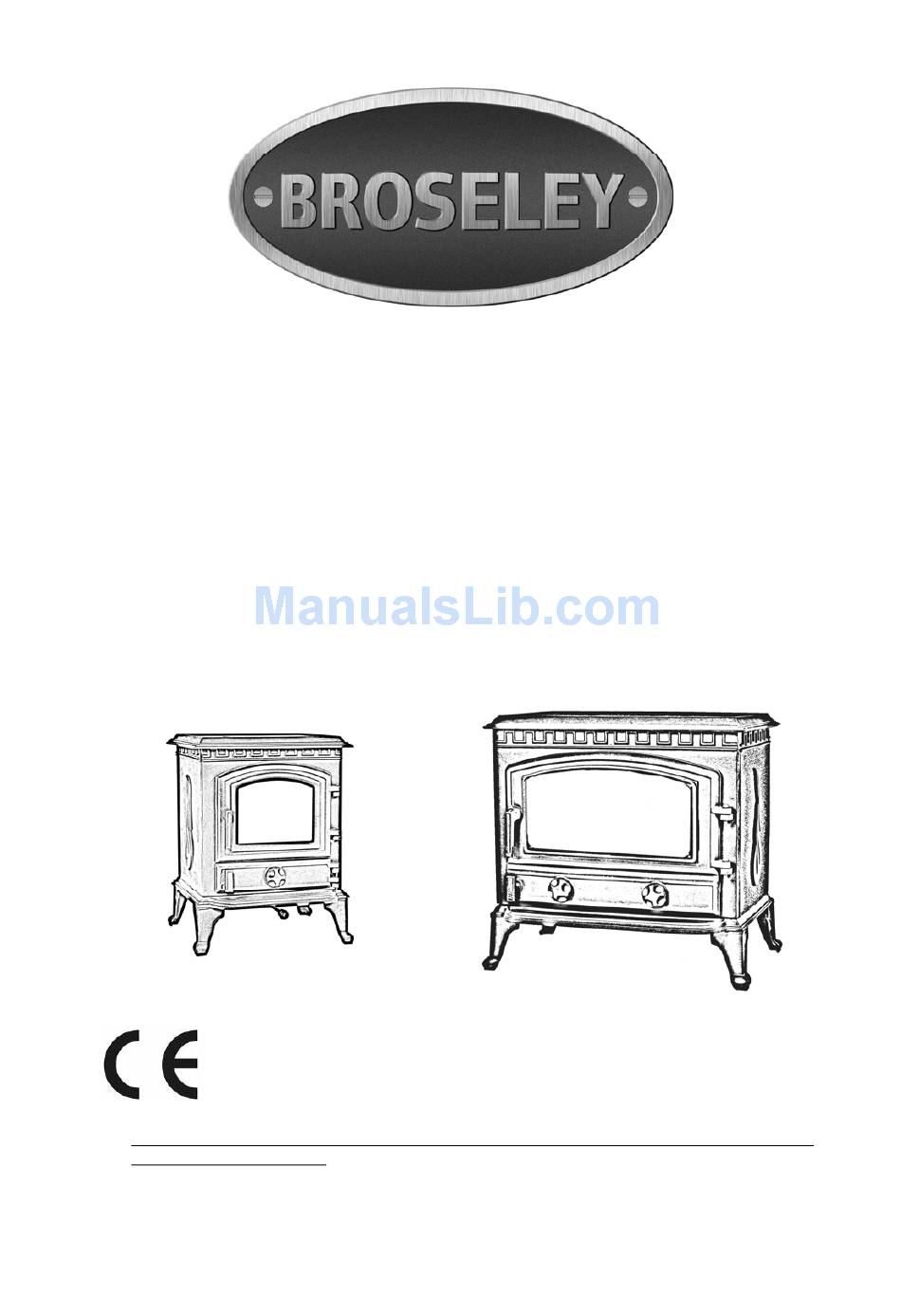

- Page 1 THIS APPLIANCE MUST BE INSTALLED AND COMMISSIONED BY A FULLY QUALIFIED, REGISTERED ENGINEER. A “Declaration of Completion” Certificate must be obtained for the installation and retained by the end user. Failure to comply with these requirements may void the warranty. © 2007-2008 Broseley Fires Ltd...
- Page 2 INSTALLATION AND OPERATION MANUAL Thank You May we take this opportunity to thank you for choosing a York, cast iron Multi-fuel stove. Please take time to read this manual and follow the guidelines on how to install and operate your new stove, as we feel sure it will enable you to use it to its best advantage for many years.
- Page 3 Fireplace shops. These shops can offer an after sales service and will be able to offer advice when necessary. Please note that it is a requirement under the Broseley Fires Ltd’s warranty system that the installation of the stove is carried out under by a Competent Person registered with a Government approved Competent Persons Scheme.
- Page 4 Remedial action should be taken, if required, seeking expert advice, if necessary. If it is found necessary to line the chimney then a flue liner suitable for solid fuel must be used in accordance with Building Regulations Approved Document J. © 2007-2008 Broseley Fires Ltd...
- Page 5 If you obtain this independently, make sure the adapter is compatible with the flue pipe as not all manufacturers pipes are cross compatible. A 5” (125mm) flue pipe is sufficient if you are only burning smokeless or low volatiles fuel but attention © 2007-2008 Broseley Fires Ltd...
-
Page 6: Combustion Air Supply
There is also the fire grate that sits on the base of the stove. If these parts are removed re-install these parts in use the instructions below to refit the firebricks: © 2007-2008 Broseley Fires Ltd... - Page 7 STEP BY STEP GUIDE FOR FITTING NEW YORK FIREBRICK SETS Please remove Grate and Ash pan before fitting fire bricks STEP 1. STEP 2. Fit Left Side Brick first with angle facing rear Insert Right Side Brick same as step 1.
- Page 8 BS 6539 in the presence of children, aged and/or infirm persons. Advise the user not to fit an extract fan in the same room as the stove as this can cause the stove to emit fumes into the room. © 2007-2008 Broseley Fires Ltd...
-
Page 9: Air Controls
The stove is fitted with a primary air control and a secondary air control (air wash) which together control the rate at which the fuel is burned. The sections “Air-wash system” and “Starting and maintaining the fire” give more detail of their operation and usage. © 2007-2008 Broseley Fires Ltd... -
Page 10: Air-Wash System
In the morning, open the air controls fully to re-establish the fire. Then de-ash and refuel in the normal way adjusting the air controls accordingly. © 2007-2008 Broseley Fires Ltd... - Page 11 Ask your local fuel merchant for more details on these fuels. Only authorised smokeless fuels may be used in smoke control areas. © 2007-2008 Broseley Fires Ltd...
- Page 12 Once the fire is running, you may find that opening the secondary air a little, will help to keep the glass clean. This is good practice but remember to control the fire using the primary air. © 2007-2008 Broseley Fires Ltd...
- Page 13 Do not use an aerosol spray on or near the stove when it is alight. Use of operating tools Always use the operating tools provided when handling parts likely to be hot when the stove is in use. © 2007-2008 Broseley Fires Ltd...
-
Page 14: Chimney Fires
Repeat with the other side. The rear plate will lift out. The throat plate baffles are held in a cradle and will slide out for inspection and cleaning. Remove them to sweep the chimney. Replace all removed parts before using the stove. © 2007-2008 Broseley Fires Ltd... -
Page 15: Troubleshooting
• The glass is not sealed, gently tighten glass retaining clips. Do not over tighten as this will stress or break the glass. • The fibre rope on doors and glass has worn out. Replace. © 2007-2008 Broseley Fires Ltd... - Page 16 COMPANY ADDRESS: POSTCODE: 5TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 6TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: © 2007-2008 Broseley Fires Ltd...
- Page 17 Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
- Page 18 York Petite Dimensions © 2007-2008 Broseley Fires Ltd...
- Page 19 York Midi Dimensions © 2007-2008 Broseley Fires Ltd...
- Page 20 York Grande Dimensions © 2007-2008 Broseley Fires Ltd...
