200694_1
2kW Electric Stove Heater c/w Thermostat Control
These instructions should be read carefully and retained for future reference

Important Safety Advice:

This heater must not be located immediately below a fixed socket outlet or connection box.
Do not cover this heater, or obstruct the air inlet or outlet, otherwise there is a risk of overheating.
During normal operation this appliance will emit noise from the internal fan unit.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
The guard used on this appliance conforms to BS1495: 1991 and satisfies the heating appliance fireguards and safety regulations 1991.
The guard is to prevent the risk of fire or injury from burns and should not be permanently removed as the appliance would then not give full protection for
the young and infirm.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off
the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
Warning: this appliance must be earthed.
The wires in the main lead to this appliance are coloured in accordance with the following code:
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as
follows:
The wire, which is coloured green and yellow, must be connected to the terminal in the plug with the letter E or by the earth symbol
green and yellow.
The wire, which is coloured blue, must be connected to the terminal, which is marked with the letter N or coloured black.
The wire, which is coloured brown, must be connected to the terminal, which is marked with the letter L or coloured red.

SETTING UP AND POSITIONING YOUR ELECTRIC STOVE

The stove will be received in two separate boxes. The first contains the cast iron stove body and the second the
Flame Effect with Heating Unit Check that the specified components are included before you start setting up your
stove.
Box 1

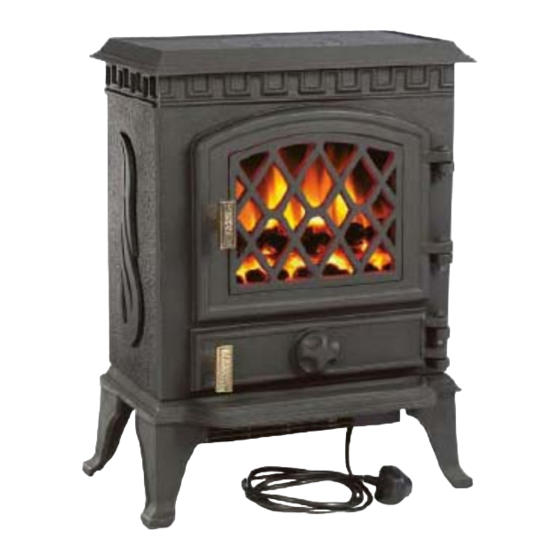

1 x Cast Iron Electric Stove main body
(with transit bar fitted)
1 x Cast Iron Stove Lid
1 x Set of Four Legs.
1 x Set of Four Bolts and Washers (for
fixing the legs to the stove.

Proceed as follows:

Carefully remove all packaging and protective materials. Remove and discard the 'transit bar' from stove body. This item stops the
sides of the stove body from moving in transit. It has been positioned into the vertical channels where the Flame Effect with Heating
instructions: Models: York Midi / Serrano
User instruction for fan heater model:
GREEN and YELLOW
BLUE
BROWN
Earth
Neutral
Live
Box 2
1 x Flame Effect Unit complete with 2KW
Fan Heater attached.
1 x Instruction booklet.
1 x Coal Pack
1 x Glove
1 x Mains Plug & lead Assembly
1
or coloured green or
