4.5

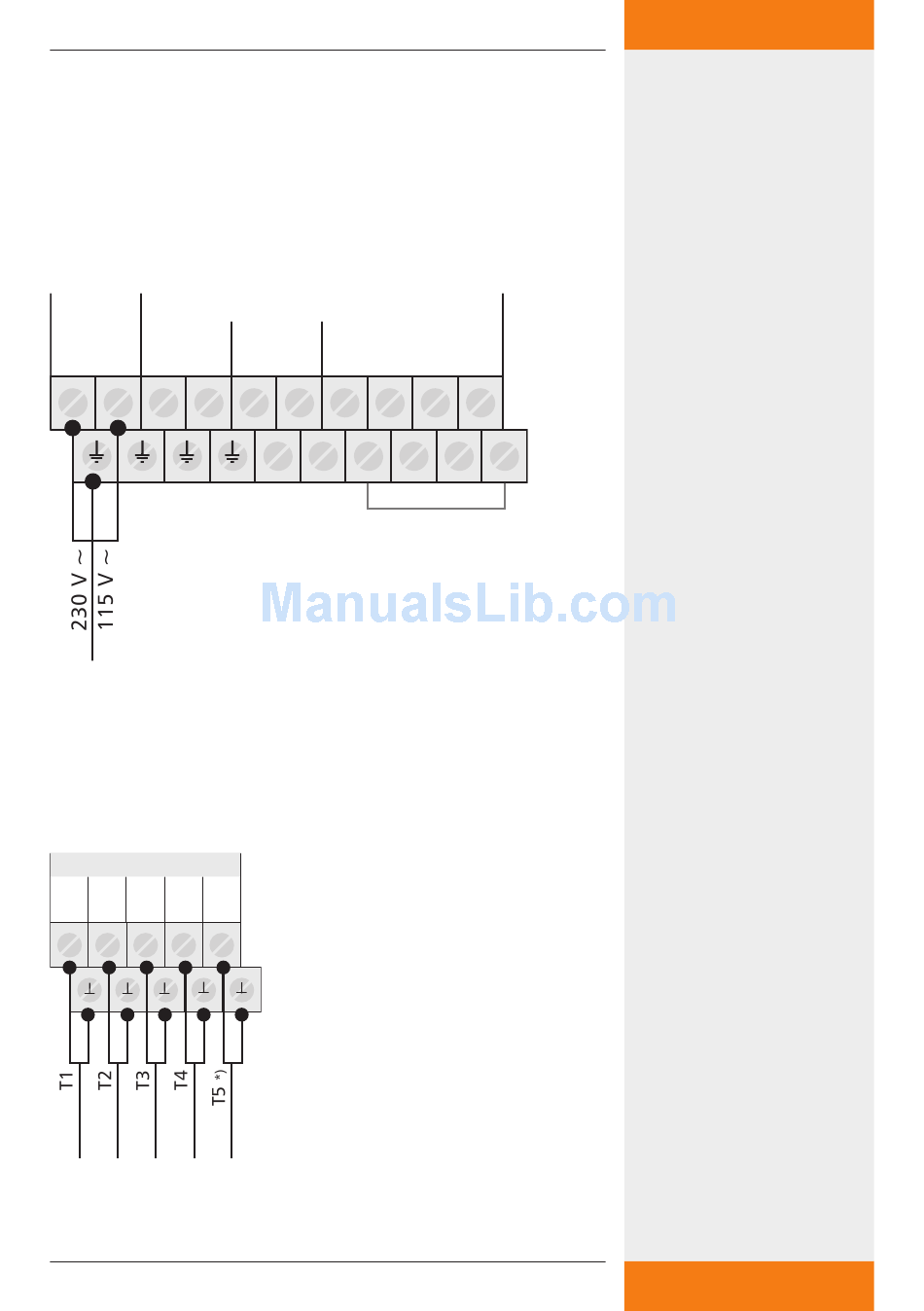

Terminal plan

4.5.1 Power connection
• Please refer to the type plate on the case to determine the type of
power supply required.
• The protective conductor must be connected.
• Cables conforming to at least type H05 VV-.... (NYM...) must be
used.
G1
N L N R1 n.c n.c N
4.5.2 Connection of the inputs
• Inputs 1 - 4: for Pt1000 temperature sensor
• Input 5: for Pt1000 temperature sensor or pulse generator for
recording volume flow (measuring heat quantities).
E2 E2 E3 E4 E5
E1
1 2 3 4 5
1
n.c n.c. R2
n.c. L L n.c. n.c. X
D1
EN
G1: grid
D1: wire bridge
E1: input 1
E: input
E3: input 3
E4: input 4
E5: input 5
T5 *): T5 or pulse generator
