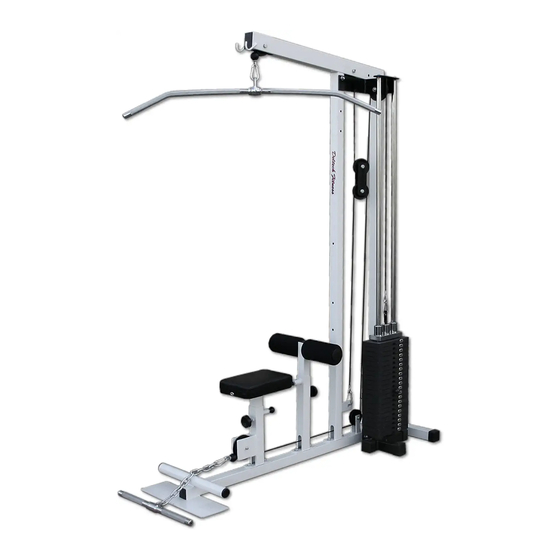

Lat pulldown machine with 200 lb weight stack
Hide thumbs Also See for DF910:

Advertisement

Quick Links

Download this manual
DF908

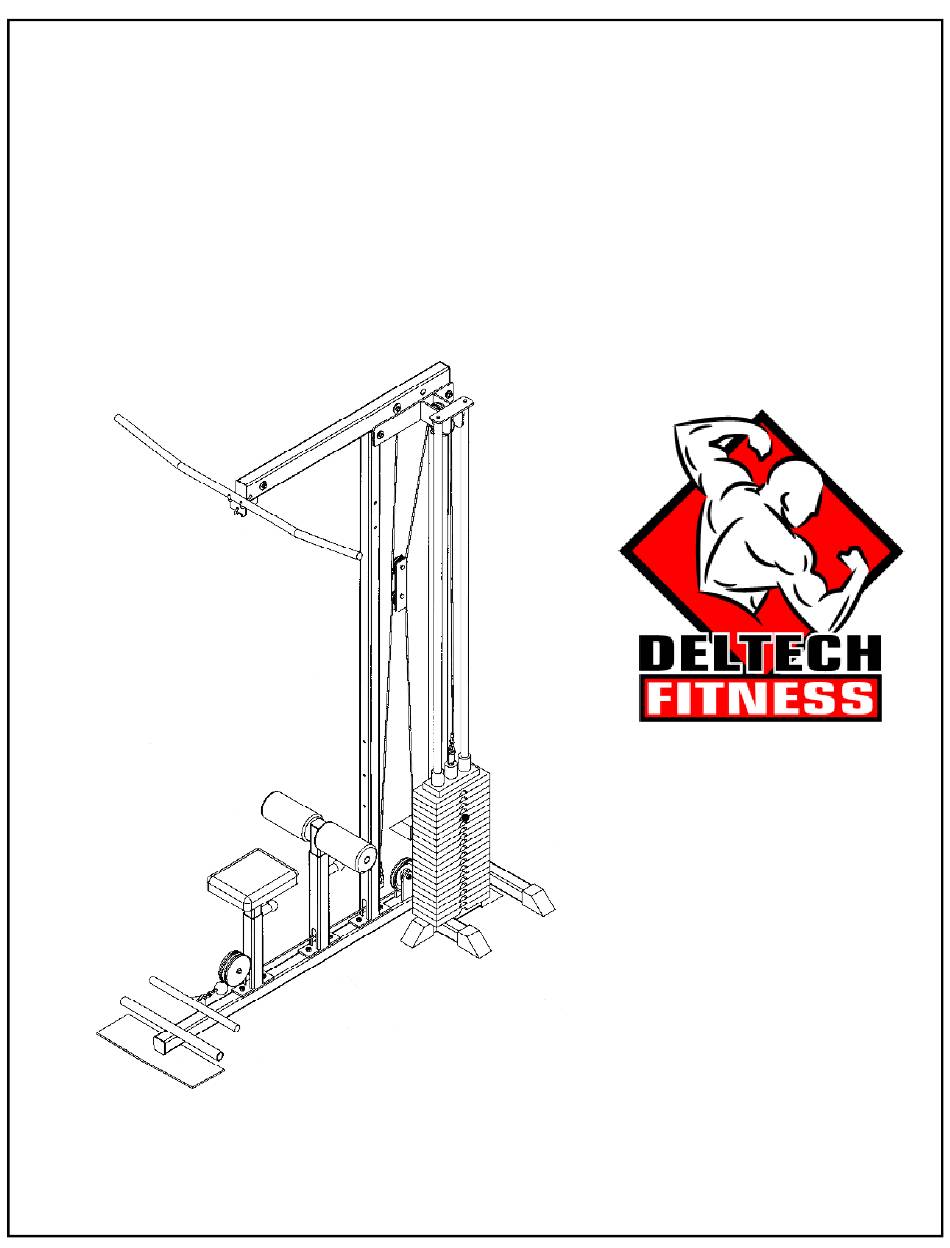

LAT PULLDOWN MACHINE
WITH 200 LB WEIGHT STACK
Assembly Manual
The DF908 consists of the DF910 Lat
Machine and the DF935 Stack Kit
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF910

Summary of Contents for Deltech Fitness DF910

  • Page 1 The DF908 consists of the DF910 Lat Machine and the DF935 Stack Kit (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 2 QTY 1 FOOT PLATE QTY 1 LAT CABLE REVOLVING CHROME FOOT REST QTY 2 ROW BAR QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 QTY 1 TUBE QTY 1 FLANGE BOTTOM PULLEY ROLLER PAD REAR CROSSMEMBER QTY 2 FRAME QTY 2 QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 CARRIAGE BOLT FLAT HEAD BOLT QTY 2 QTY 9 QTY 3 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 5 HARDWARE M12 LOCKNUT M10 LOCKNUT M10 WASHER M12 WASHER QTY 4 QTY 19 QTY 20 QTY 8...
  • Page 6 BOTTOM FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET Some components may be pre-installed from the factory (SEE INSET) ASSEMBLE THE 4 ½” PULLEY (U) INTO THE BOTTOM PULLEY FRAME (R) USING THE M10 x 45MM BOLT (DD), M10 WASHERS (II), AND M10 LOCKNUT (KK).
  • Page 7 SEAT FRAME ASSEMBLY ATTACH THE SEAT PAD (H) TO THE SEAT BRACKET (I) USING THE M10 x 20MM BOLTS (EE) AND M10 FLAT WASHERS (II). THEN SLIDE THE SEAT BRACKET (I) INTO THE SEAT SUPPORT (J). (WAIT TO COMPLETE THE FOLLOWING STEP UNTIL THE CABLES ARE INSTALLED) INSTALL THE 4 ½”...
  • Page 8 LEG HOLD DOWN ASSEMBLY SLIDE THE HOLD-DOWN TUBE (L) INTO THE HOLD-DOWN SUPPORT (M) . LOCK INTO PLACE WITH PULL-PIN. SLIDE THE ROLLER PADS (P) OVER THE LEG PAD TUBE AND INSERT THE MUSH- ROOM CAPS (S). TAP INTO PLACE WITH A RUBBER HAMMER.
  • Page 9 FLOATING PULLEY ASSEMBLY ASSEMBLE THE FLOATING PULLEY ASSEMBLY BY USING 4-1/2” PULLEYS (U), FLANGES (Q), M10 x 45MM BOLTS (DD), M10 WASHERS (II), AND M10 LOCKNUTS (KK).
  • Page 10 UPPER PULLEY FRAME ASSEMBLY INSTALL THE FRONT 3-1/2” PULLY (V) USING THE M10 x 70MM BOLT (CC), PULLEY BUSHINGS (W), AND M10 LOCKNUT (KK). REPEAT FOR REAR PULLEYS.
  • Page 11 MAIN FRAME ASSEMBLY NEXT ASSEMBLE THE UPPER PULLEY FRAME ASSEMBLY ONTO THE FRONT AND BACK SUPPORTS (A,B) USING THE M12 x 65MM BOLTS(BB), M12 WASHERS (HH), AND M12 LOCKNUTS (JJ).
  • Page 12 FINAL ASSEMBLY MAIN FRAME ASSY LEG HOLDDOWN ASSY SEAT FRAME ASSY BOTTOM FRAME ASSY LAY THE BOTTOM FRAME ASSEMBLY ON ITS SIDE. ATTACH THE MAIN FRAME ASSEMBLY, THE LEG HOLDDOWN ASSEMBLY, AND THE SEAT FRAME ASSEMBLY USING THE M10 x 65MM CARRIAGE BOLTS (GG), M10 WASHERS (II), AND M10 LOCKNUTS (KK).
  • Page 13 ASSEMBLY INSTRUCTIONS FOR THE DF935 STACK KIT (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 14 (19) 10 LB. PLATES QTY 1 FRAME QTY 2 QTY 1 QTY 1 WEIGHT STACK SELECTOR ROD TOP PLATE QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 15 PULLEY PULLEY BUSHING SPRING PIN QTY 1 QTY 2 QTY 1 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 16 PULLEY BUSHING PULLEY SPRING PIN QTY 2 QTY 1 QTY 1 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 17 UPPER PULLEY ASSEMBLY INSTALL THE PULLEY (P) INTO THE UPPER PULLEY FRAME (B), USING M10 x 75MM BOLT (H), PULLEY BUSHINGS (Q), AND M10 LOCKNUT (J).
  • Page 18 WEIGHT STACK ASSEMBLY INSERT WEIGHT STACK ROD (E) INTO CENTER HOLE OF TOP PLATE (F) ALIGNING TOP HOLE OF WEIGHT STACK ROD WITH SPRING PIN HOLE. INSERT SPRING PIN (O) AND TAP WITH HAMMER UNTIL FLUSH WITH SURFACE. SCREW WEIGHT STACK CONNECTOR (N) INTO TOP OF WEIGHT STACK ROD AND TIGHTEN WITH WRENCH.
  • Page 19 LOWER FRAME ASSEMBLY INSTALL THE RUBBER CAPS (G) ONTO THE BOTTOM SUPPORT (B). ATTACH THE BOTTOM SUPPORT (B) TO THE LAT MACHINE USING THE M10 x 75MM BOLTS (H), M10 WASHERS (I), AND M10 LOCKNUTS (J).
  • Page 20 WEIGHT STACK ASSEMBLY INSTALL THE RUBBER DOUGHNUTS (L) ONTO THE BOTTOM OF THE CHROME RODS (C) , LEAVING APPROXIMATELY 2” PROTRUDING. INSERT THE CHROME RODS INTO THE TWO OUTER HOLES IN THE BOTTOM SUPPORT. ASSEMBLE THE WEIGHT STACK (E) BY SLIDING EACH PLATE OVER THE CHROME RODS (C) AND ON TO THE BOTTOM SUPPORT.
  • Page 21 WEIGHT STACK ASSEMBLY WEIGHT STACK ASSEMBLY REMOVE THE M10 x 75MM BOLTS, WASHERS, AND NUTS FROM THE FRONT AND REAR SUPPORT. INSTALL THE UPPER SUPPORT ASSEMBLY (B) TO THE LAT MACHINE USING THE M10 x 75MM BOLTS, WASHERS, AND NUTS YOU REMOVED IN THE PREVIOUS STEP. ATTACH THE UPPER SUPPORT FRAME ASSEMBLY TO THE CHROME RODS USING M10 x 25MM BOLTS (M).
  • Page 22 UPPER CABLE INSTALLATION UPPER PULLEY FRAME REMOVED FOR CLARITY NOTE: UPPER CABLE IS SHORTER THAN THE BOTTOM CABLE FLOATING PULLEY ASSEMBLY INSTALL UPPER CABLE OVER FRONT PULLEY, BACK TO REAR PULLEY, DOWN TO TOP PULLEY OF FLOATING PULLEY ASSEMBLY, UP TO STACK ASSEMBLY PULLEY AND DOWN TO SELECTOR ROD ASSEMBLY.
  • Page 23 LOWER CABLE INSTALLATION FLOATING PULLEY ASSEMBLY INSTALL LOWER CABLE UNDER FRONT PULLEY, THROUGH SEAT FRAME, LEG HOLD DOWN FRAME, FRAME POLE, AND BACK TO REAR PULLEY. CONTINUE UP AND OVER LOWER PULLEY OF FLOATING PULLEY ASSEMBLY. ATTACH SNAP HOOK TO END OF CABLE AND THEN TO CHAIN. ATTACH SNAP HOOK TO THE OTHER END OF THE CHAIN AND THEN TO FRAME POLE BRACKET.
  • Page 24 ADJUSTING THE WEIGHT STACK: MAKE SURE LAT BAR IS RESTING IN CATCH BEFORE CHANGING WEIGHT STACK PIN LOCATION.
  • Page 25 SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
