Procom MN180TPH Installation & Operation Instructions page 9

WARNING: Never install the heater
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects
are less than 36 inches from the front, top, or sides of the heater
• in high traffic areas
• in windy or drafty areas
WARNING: Maintain the minimum clearances shown in Figure
4. If you can, provide greater clearances from floor, ceiling, and
joining wall.
CAUTION: This heater creates warm air currents. These currents
move heat to wall surfaces next to heater. Installing heater next to
vinyl or cloth wall coverings or operating heater where impurities
oil or kerosene lamps, etc.) in the air exist may discolor walls.
(such as tobacco smoke, aromatic candles, cleaning fluids,
Check Gas Type
Be sure your gas supply is right for your heater. Otherwise, call dealer where you bought the heater for proper
type heater.
Clearances To Combustibles
Carefully follow the instructions below. This heater is a freestanding unit designed to be mounted on a wall or set
directly on the floor.
WARNING: Maintain the minimum clearances shown in Figure 4. If you can, provide greater clearances from
floor, ceiling, and joining wall.
LOCATING HEATER
This heater is designed to be mounted on a wall. For convenience and efficiency, install heater:
• where there is easy access for operation, inspection, and service.
• in the coldest part of room.
INSTALLING THERMOSTAT SENSING BULB
( ONLY FOR MN180TPH, MN300TPH, ML150TPH, ML250TPH )
1. Pull out the sensing bulb from the two clips located in the shipping
position. There is no need to take out the two bulb clips.
2. Take out the bulb clip from the hardware package and insert it into
the square hole. Then insert the sensing bulb into the bulb clip
(see Figure 5).
FASTENING HEATER TO WALL
Mounting Bracket
The mounting bracket is located on back panel of heater (see Figure 6). It
has been taped there for shipping. Remove mounting bracket from back
panel.
Removing Front Panel of Heater
1. Remove 4 screws - 2 screws on each side of the front panel.
2. Pull front panel forward.
3. Replace front panel when completed, using the screws removed.

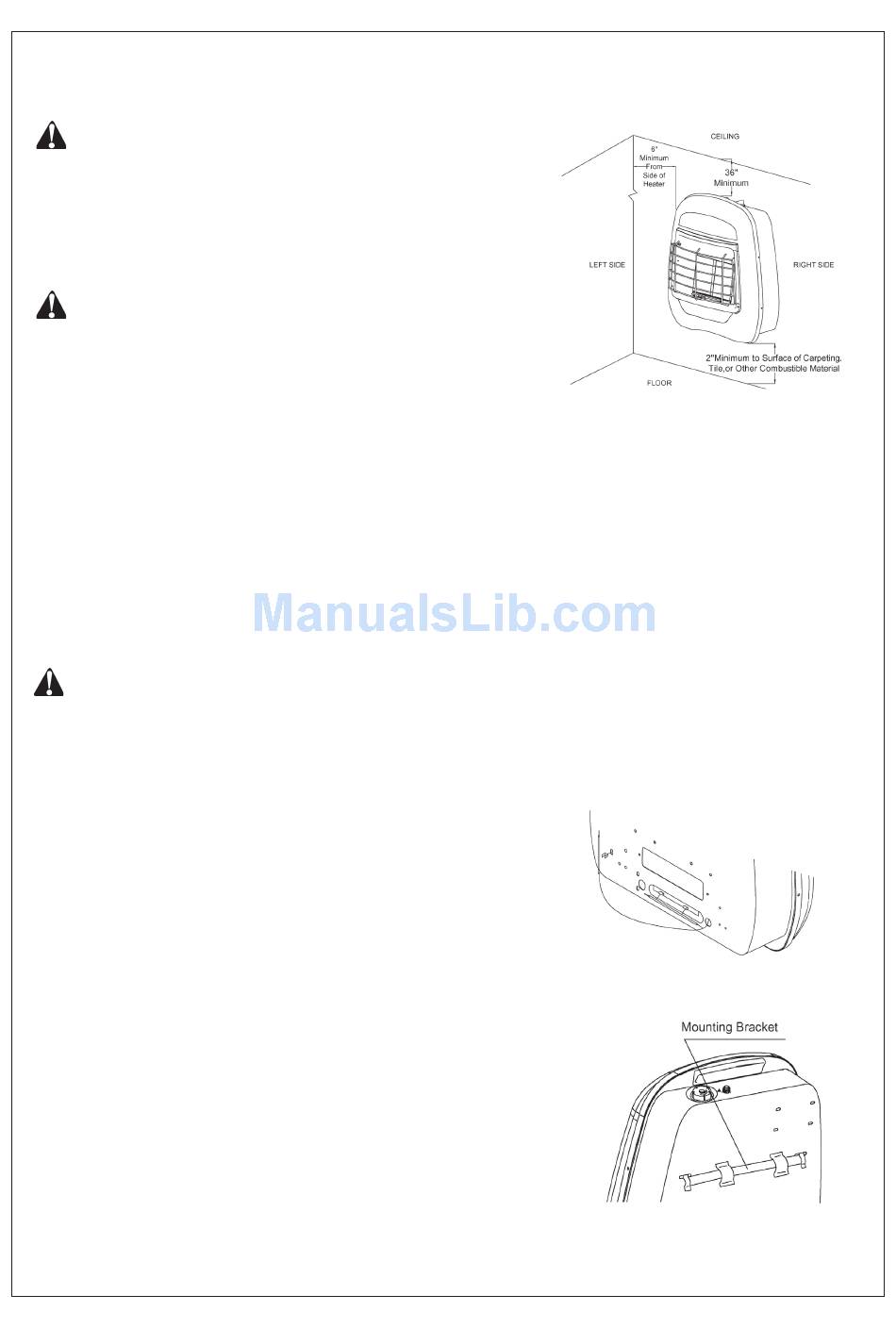

Figure 4 - Mouting clearances as
viewed from front of heater (inches)
Figure 6 - Mounting Bracket Location

Figure 5 - Moving Thermo-
stat Sensing Bulb
