Procom MN180TPH Installation & Operation Instructions page 10

Methods For Attaching Mounting Bracket To Wall
Use only the last hole on each end of mounting bracket to attach bracket to wall. Attach mounting bracket to a
wall only in one of two ways:
1. Attaching to wall stud: This method provides the strongest hold. Insert mounting screws through mounting
bracket and into wall studs.
2. Attaching to wall anchor: This method allows you to attach mounting bracket to hollow walls (wall areas
between studs) or to solid walls (concrete or masonry).
3. Decide which method better suits your needs. Either method will provide a secure hold for the mounting bracket.
Marking Screw Locations
1. Tape mounting bracket to wall where heater will be located. Make sure
mounting bracket is level.
WARNING: Maintain minimum clearances shown in Figure 4. If you
can, provide greater clearances from floor and joining wall.
2. Mark screw locations on wall (see Figure 7).
Note: Mark only last hole on each end of mounting bracket. Insert
mounting screws through these holes only.
3. Remove tape and mounting bracket from wall.
Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and spacers are in hardware pack-
age. The hardware package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to wall studs:
1. Drill holes at marked locations using 9/64-inch drill bit.
2. Place mounting bracket onto wall. Line up last hole on each end of
bracket with holes drilled in wall.
3. Insert mounting screws through bracket and into wall studs.
4. Tighten screws until mounting bracket is firmly fastened to wall studs.
Attaching to Wall Anchor Method
For attaching mounting bracket to hollow walls (wall areas between studs) or
solid walls (concrete or masonry):
1. Drill holes at marked locations using 5/16-inch drill bit. For solid walls
(concrete or masonry), drill at least 1 inch deep.
2. Fold wall anchor as shown in Figure 8.
3. Insert wall anchor (wings first) into hole. Tap anchor flush to wall.
4. For thin walls (1/2 inch or less), insert red key into wall anchor. Push
red key to "pop" open anchor wings (see Figure 9).
IMPORTANT: Do not hammer anchor key! For thick walls (over 1/2 inch
thick) or solid walls, do not pop open wings.
5. Place mounting bracket onto wall. Line up last hole on each end of
bracket with wall anchors.
6. Insert mounting screws through bracket and into wall anchors.
7. Tighten screws until mounting bracket is firmly fastened to wall.
0 0
MN180TPH, ML150TPH,
MN180HPH, ML150HPH
MN300TPH, ML250TPH,
MN300HPH, ML250HPH

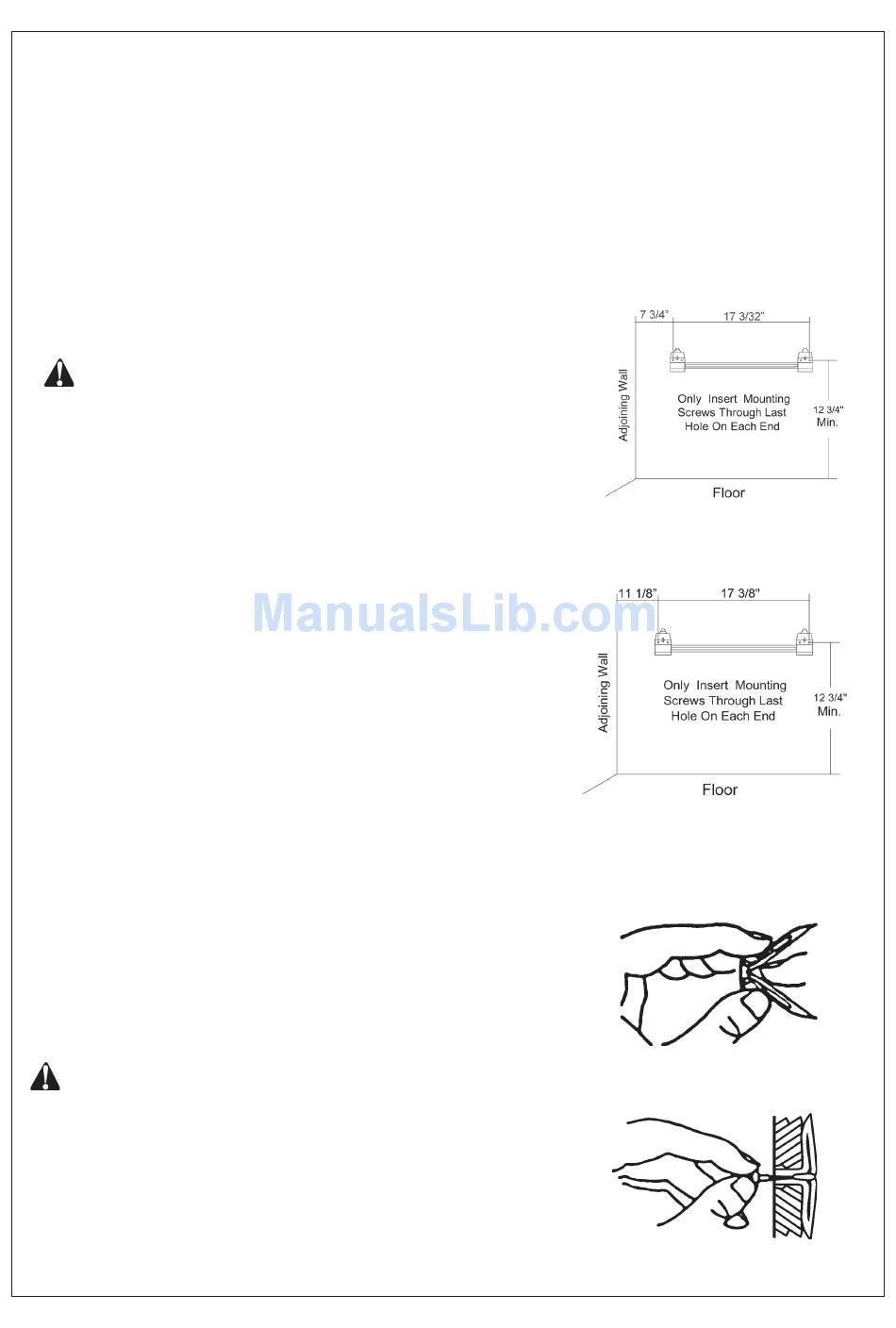

Figure 7 - Mounting Bracket
Clearances (inches)
Figure 8 - Folding Anchor
Figure 9 - Popping Open Anchor
Wing For Thin Walls
