1

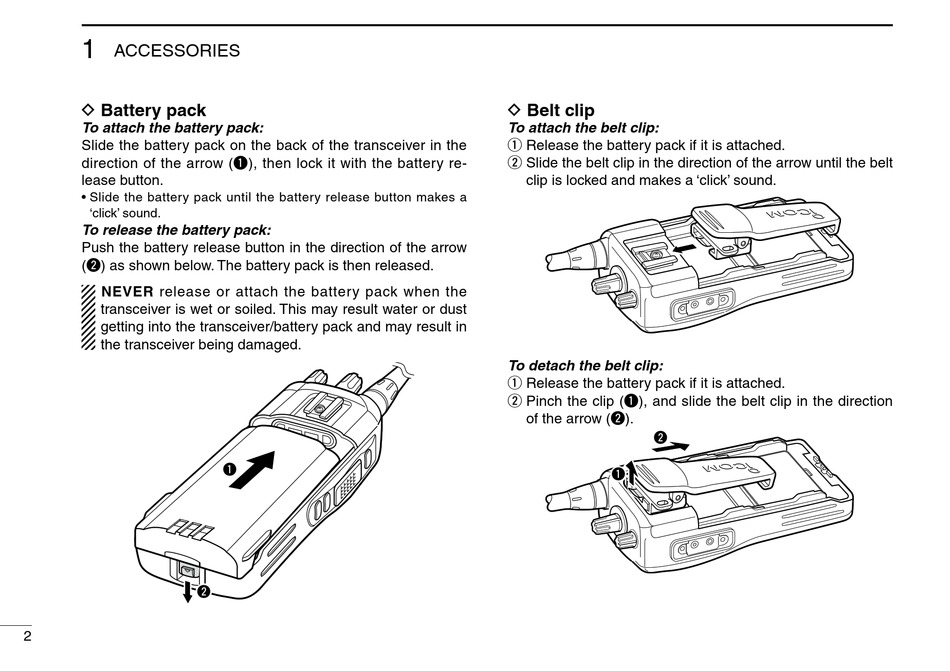

ACCESSORIES

D Battery pack

To attach the battery pack:
Slide the battery pack on the back of the transceiver in the
direction of the arrow (q), then lock it with the battery re-
lease button.
• Slide the battery pack until the battery release button makes a
'click' sound.
To release the battery pack:
Push the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
NEVER release or attach the battery pack when the
transceiver is wet or soiled. This may result water or dust
getting into the transceiver/battery pack and may result in
the transceiver being damaged.
w
2
q
D Belt clip
To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction
of the arrow (w).
w
q
