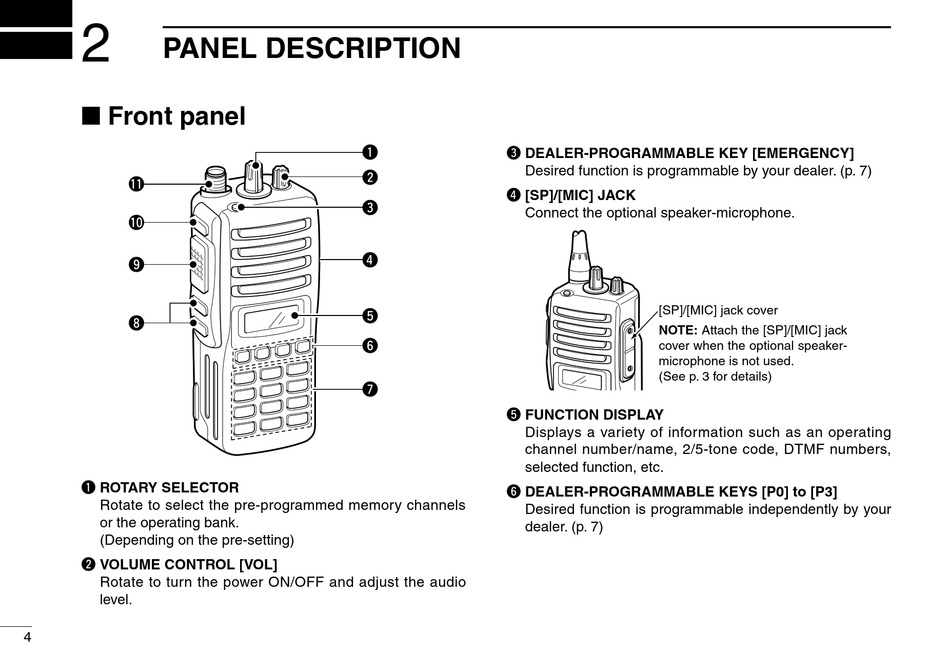

PANEL DESCRIPTION

■ Front panel

!1
!0
o
i
q ROTARY SELECTOR
Rotate to select the pre-programmed memory channels
or the operating bank.
(Depending on the pre-setting)
w VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjust the audio
level.
4
q e DEALER-PROGRAMMABLE KEY [EMERGENCY]
Desired function is programmable by your dealer. (p. 7)
w
r [SP]/[MIC] JACK
e
Connect the optional speaker-microphone.
r
t
y
u
t FUNCTION DISPLAY
Displays a variety of information such as an operating
channel number/name, 2/5-tone code, DTMF numbers,
selected function, etc.
y DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired function is programmable independently by your
dealer. (p. 7)
[SP]/[MIC] jack cover
NOTE: Attach the [SP]/[MIC] jack
cover when the optional speaker-
microphone is not used.
(See p. 3 for details)
