Accessories; Caution - Icom iF34GT Instruction Manual

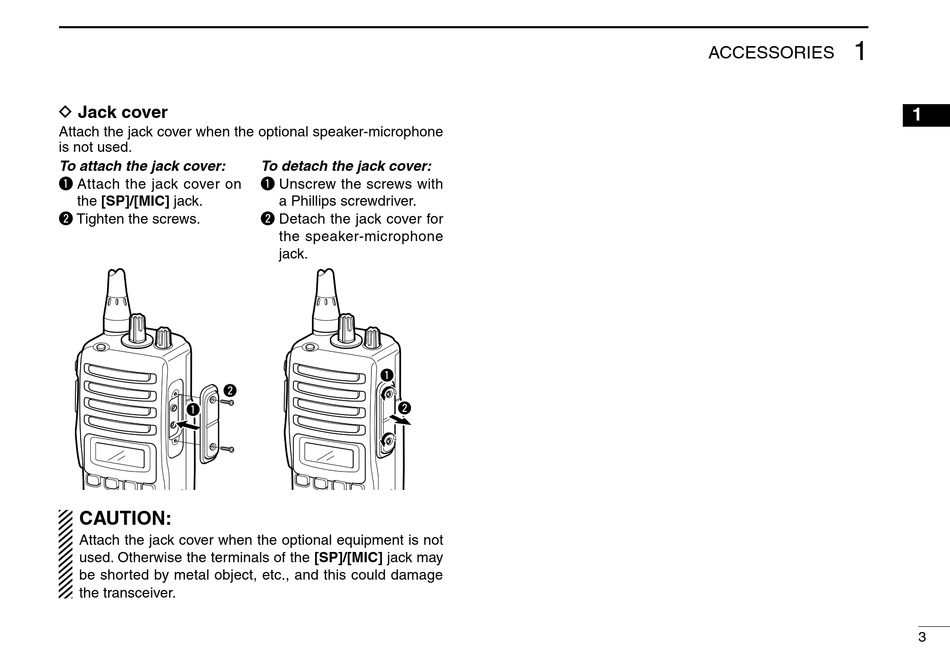

D Jack cover
Attach the jack cover when the optional speaker-microphone
is not used.
To attach the jack cover:
q Attach the jack cover on
the [SP]/[MIC] jack.
w Tighten the screws.
w
q

CAUTION:

Attach the jack cover when the optional equipment is not
used. Otherwise the terminals of the [SP]/[MIC] jack may
be shorted by metal object, etc., and this could damage
the transceiver.
To detach the jack cover:
q Unscrew the screws with
a Phillips screwdriver.
w Detach the jack cover for
the speaker-microphone
jack.
q
w
1

ACCESSORIES
