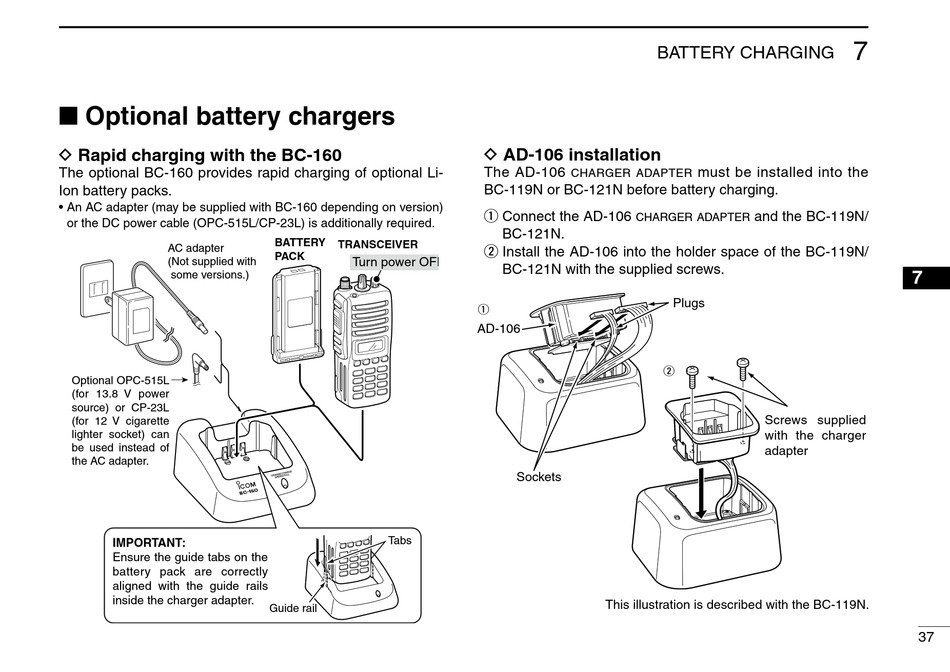

■ Optional battery chargers

D Rapid charging with the BC-160
The optional BC-160 provides rapid charging of optional Li-
Ion battery packs.
• An AC adapter (may be supplied with BC-160 depending on version)
or the DC power cable (OPC-515L/CP-23L) is additionally required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
IMPORTANT:
Ensure the guide tabs on the
battery pack are correctly
aligned with the guide rails
inside the charger adapter.
BATTERY
TRANSCEIVER
PACK
Turn power OFF
Tabs
Guide rail
D AD-106 installation
The AD-106
charger adapter
BC-119N or BC-121N before battery charging.
q Connect the AD-106
charger adapter
BC-121N.
w Install the AD-106 into the holder space of the BC-119N/
BC-121N with the supplied screws.
q
AD-106
Sockets
This illustration is described with the BC-119N.
BATTERY CHARGING
must be installed into the
and the BC-119N/
Plugs
w
Screws supplied
with the charger
adapter
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
