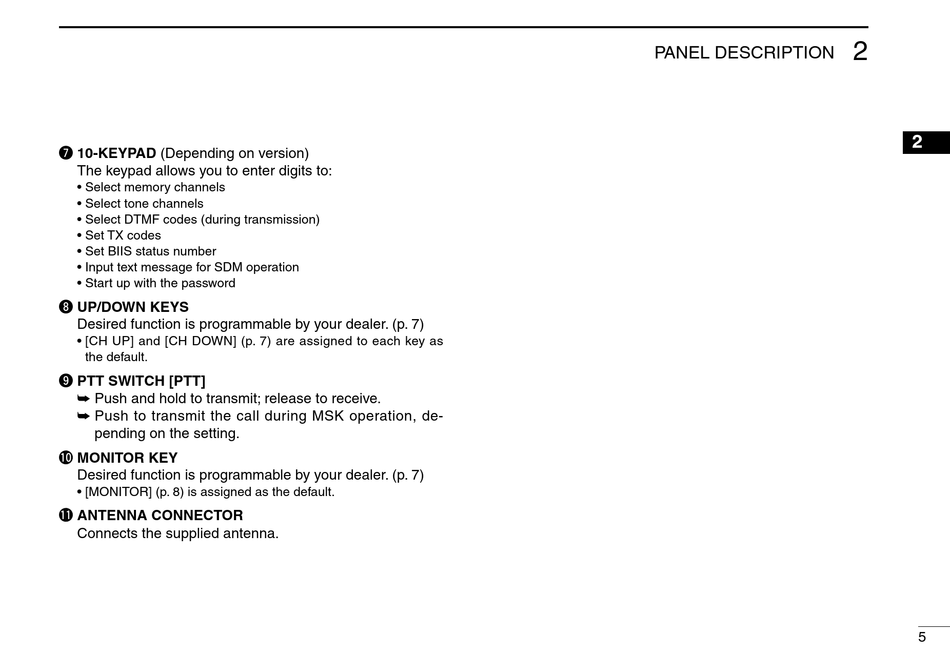

Icom iF34GT Instruction Manual page 9

u 10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmission)
• Set TX codes
• Set BIIS status number
• Input text message for SDM operation
• Start up with the password
i UP/DOWN KEYS
Desired function is programmable by your dealer. (p. 7)
• [CH UP] and [CH DOWN] (p. 7) are assigned to each key as
the default.
o PTT SWITCH [PTT]
➥ Push and hold to transmit; release to receive.
➥ Push to transmit the call during MSK operation, de-
pending on the setting.
!0 MONITOR KEY
Desired function is programmable by your dealer. (p. 7)
• [MONITOR] (p. 8) is assigned as the default.
!1 ANTENNA CONNECTOR
Connects the supplied antenna.
PANEL DESCRIPTION
