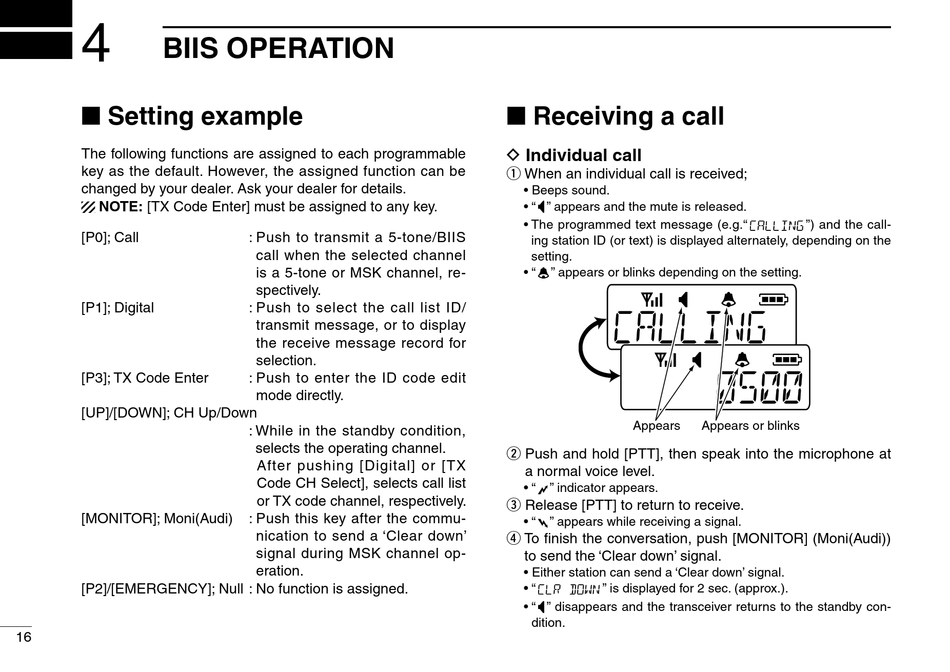

Biis Operation; Setting Example; Receiving A Call - Icom iF34GT Instruction Manual

4

BIIS OPERATION

■ Setting example

The following functions are assigned to each programmable
key as the default. However, the assigned function can be
changed by your dealer. Ask your dealer for details.
NOTE: [TX Code Enter] must be assigned to any key.
[P0]; Call
[P1]; Digital
[P3]; TX Code Enter
[UP]/[DOWN]; CH Up/Down
[MONITOR]; Moni(Audi)
[P2]/[EMERGENCY]; Null : No function is assigned.
16
: Push to transmit a 5-tone/BIIS
call when the selected channel
is a 5-tone or MSK channel, re-
spectively.
: Push to select the call list ID/
transmit message, or to display
the receive message record for
selection.
: Push to enter the ID code edit
mode directly.
: While in the standby condition,
selects the operating channel.
After pushing [Digital] or [TX
Code CH Select], selects call list
or TX code channel, respectively.
: Push this key after the commu-
nication to send a 'Clear down'
signal during MSK channel op-
eration.

■ Receiving a call

D Individual call
q When an individual call is received;
• Beeps sound.
• " " appears and the mute is released.
• The programmed text message (e.g."
ing station ID (or text) is displayed alternately, depending on the
setting.
• " " appears or blinks depending on the setting.
Appears
w Push and hold [PTT], then speak into the microphone at
a normal voice level.
• " " indicator appears.
e Release [PTT] to return to receive.
• " " appears while receiving a signal.
r To finish the conversation, push [MONITOR] (Moni(Audi))
to send the 'Clear down' signal.
• Either station can send a 'Clear down' signal.
• " " is displayed for 2 sec. (approx.).
• " " disappears and the transceiver returns to the standby con-
dition.
") and the call-
Appears or blinks
