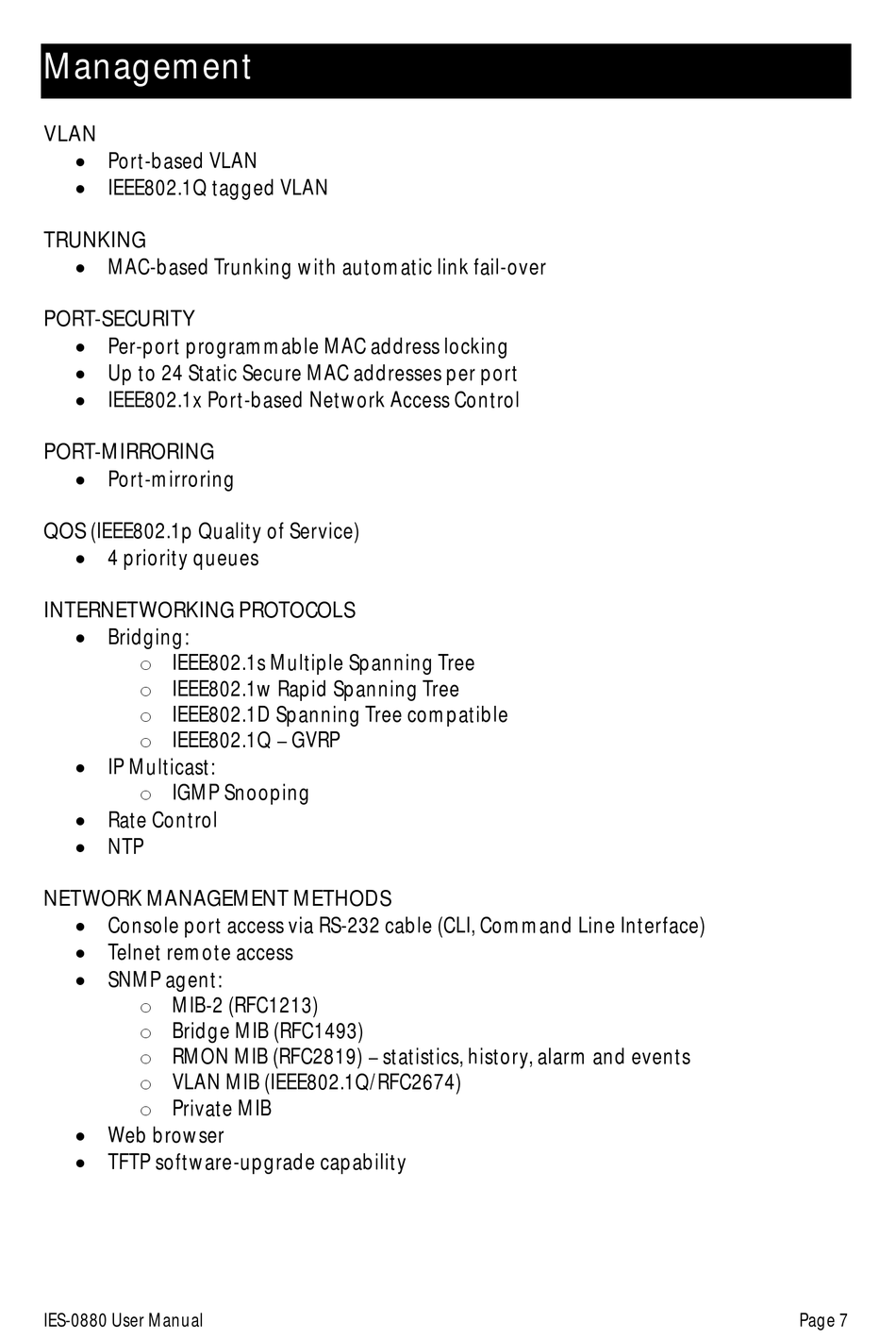

Management

VLAN
 Port-based VLAN
 IEEE802.1Q tagged VLAN
TRUNKING
 MAC-based Trunking with automatic link fail-over
PORT-SECURITY
 Per-port programmable MAC address locking
 Up to 24 Static Secure MAC addresses per port
 IEEE802.1x Port-based Network Access Control
PORT-MIRRORING
 Port-mirroring
QOS (IEEE802.1p Quality of Service)
 4 priority queues
INTERNETWORKING PROTOCOLS
 Bridging:
o IEEE802.1s Multiple Spanning Tree
o IEEE802.1w Rapid Spanning Tree
o IEEE802.1D Spanning Tree compatible
o IEEE802.1Q GVRP
 IP Multicast:
o IGMP Snooping
 Rate Control
 NTP
NETWORK MANAGEMENT METHODS
 Console port access via RS-232 cable (CLI, Command Line Interface)
 Telnet remote access
 SNMP agent:
o MIB-2 (RFC1213)
o Bridge MIB (RFC1493)
o RMON MIB (RFC2819) statistics, history, alarm and events
o VLAN MIB (IEEE802.1Q/RFC2674)
o Private MIB
 Web browser
 TFTP software-upgrade capability
IES-0880 User Manual Page 7
