LevelOne Infinity IES-0822 Quick Installation Manual

IES-0822
4 x 802.3af + 3 FE+ 1 MM SC Unmanaged Switch -40 to 75C, DIN 4 x 802.3af + 3 FE+ 1 MM SC Unmanaged Switch
Quick Installation Guide Quick Installation Guide Quick Installation Guide
Features
• Meets NEMA TS1 & TS2 environmental requirements for traffic control
equipment.
• Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial
environment.
• Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
• Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps,
Full/Half-duplex, Auto-Negotiation, Auto MDI/MDIX.
• 100Base-FX: Multi/Single mode SC or ST type, WDM Single mode SC
type.
• Supports 1024 MAC addresses. Provides 1M bits buffer memory.
• Alarms for power and port link failure by relay output.
• Power Supplies: Redundant 48VDC Terminal Block power inputs and
48VDC DC JACK with 100-240VAC external power supply.
• Operating voltage and Max. current consumption: 1.5A @ 48VDC. Power
consumption: 72W Max.
• -40℃ to 75℃ (-40℉ to 167℉) operating temperature range
• Tested for functional operation @ -40℃ to 85℃ (-40℉ to 185℉)
•
Supports DIN-Rail, Panel, or Rack Mounting installation

Package Contents

IES-0822
Quick Installation Guide
CD User Manual
IES-0822
40 to 75C, DIN-
rail
v1.00 - 1206
Page 2
Overview
LevelOne IES-0822 Industry Ethernet Switch provides 44 PoE
ports of 10/100Base-TX plus 3 ports of 10/100Base-TX
Ethernet plus 1 port 100FX Multimode SC fiber to enable high
speed network at mission-critical environment. This device is
designed to be mounted on an industry standard DIN-rail, plus
the clearly visible status LEDs provide simple monitoring of port
link activity.

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully
complied with IEEE 802.3af PoE standard at maximum 15.4W
power budget per port. It helps to save infrastructure wiring
costs dramatically by eliminating electric wiring and less UPS
needed.
High Reliability
All components are built to withstand harsh environment
applications without compromise where humidity, temperature
variation and even shock vibration are concerns, including
Electric & Utility, Critical Infrastructure, Transportation and
Surveillance Security. This device operates under -40 to 75
Celsius (-40 to 167 Fahrenheit) temperature.

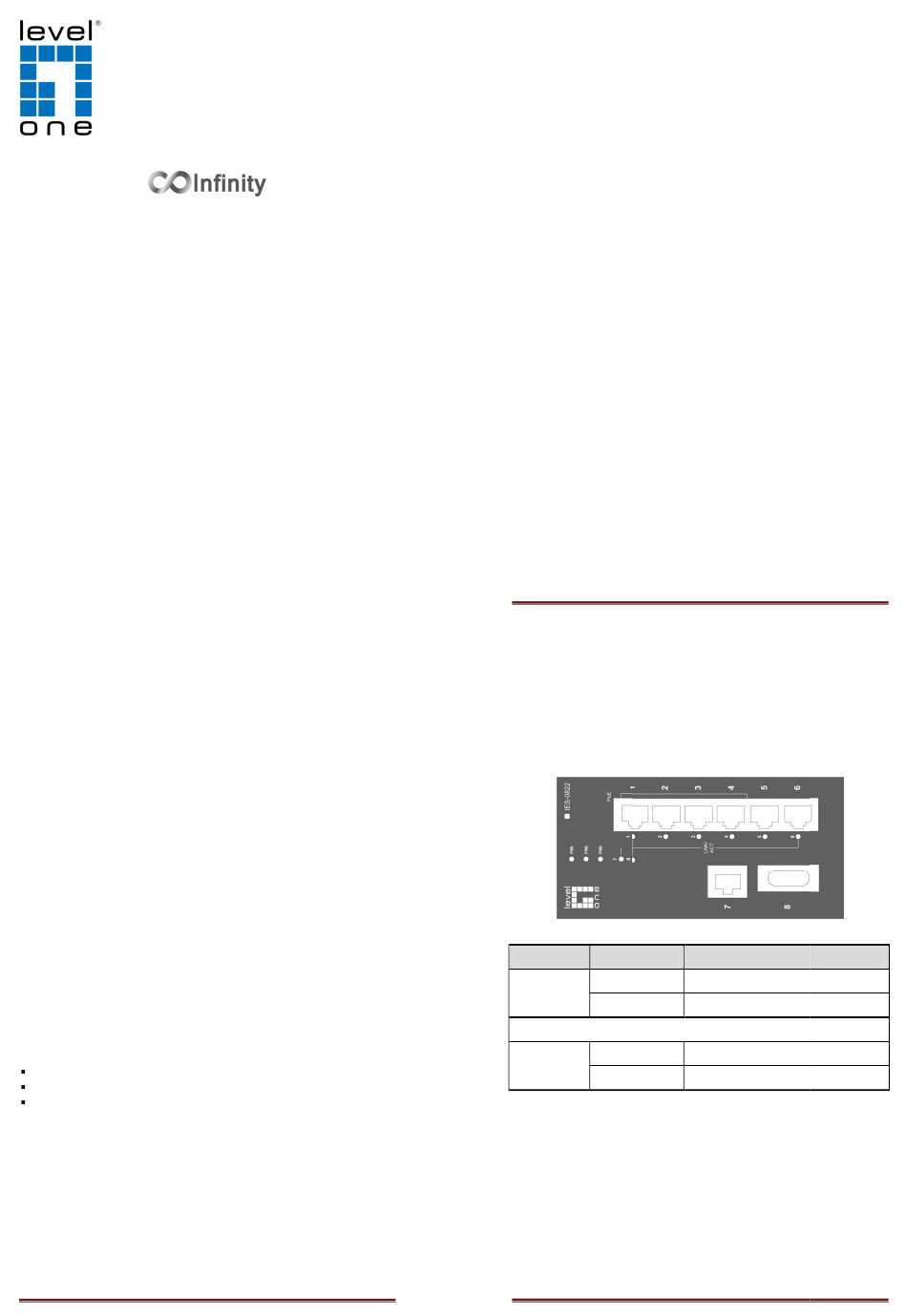

IES-0822
LED Status LED Status
LED Status Status
Steady
PW 1,2,3
Off
10/100Base-TX or 100Base TX or 100Base-FX/BX
Steady
LNK/ACT
(Green)
Flashing Flashing
IES-0822
Page 1
Description Description
Power On
Power Off
Network connection is established Network connection is established
Transmitting or Receiving data Transmitting or Receiving data
Page 3
