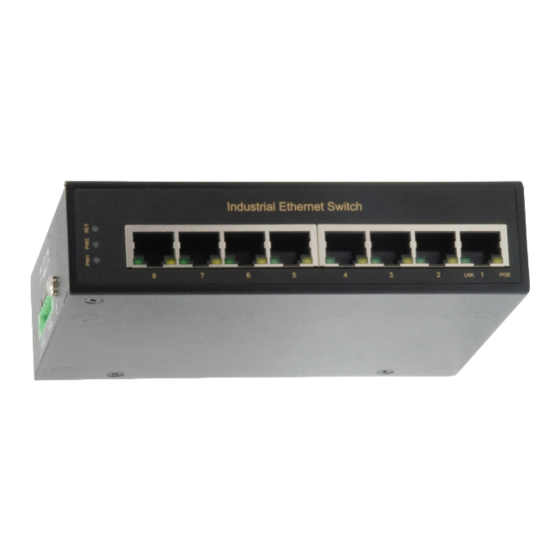

8-port fast ethernet industrial switch
Hide thumbs Also See for IES-0820:

Advertisement

Quick Links

H/W: 2
IES-0820
User Manual
8-Port Fast Ethernet Industrial Switch
FCC MARKING
This Equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received;
including interference that may cause undesired operation.
CE MARKING
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class A for ITE, the essential
protection requirement of Council Directive 2004/108/EC on the
approximation of the laws of the Member States relating to
electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may
be possible that information in this document is not up-to-date. Please
check with your local distributors for the latest information. No part of
this document can be copied or reproduced in any form without written
consent from the company.
Trademarks:
All trade names and trademarks are the properti es of their
respective companies.
Copyright © 2013, All Rights Reserved.
1

Advertisement

loading

Summary of Contents for LevelOne IES-0820

  • Page 1 H/W: 2 IES-0820 User Manual 8-Port Fast Ethernet Industrial Switch FCC MARKING This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2: Power Connection

    6 pin Terminal Block x1 Power connection This IES-0820 switch comes with a 6 pin terminal block. It can be operated from 12-56VDC power source. Always Make sure your input voltage is within this supported voltage range for each model.
  • Page 3 H/W: 2 ON -- when V1+, V1- is connected This unit has no POE feature. the POE amber LED will always stays in OFF status. ON -- when V2+, V2- is connected Green LED --- ON =Link Relay LED Amber Flash = TX/RX.
  • Page 4: Specification

    H/W: 2 Specification: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE Standard IEEE802.3x Flow Control and Back Pressure Switch Architecture Back-plane (Switching Fabric): 1.6Gbps Data Processing Store and Forward IEEE 802.3x Flow Control and Back Pressure Flow Control: MAC address Table Size Packet Buffer Size 8xRJ-45 10/100BaseT(X) auto negotiation,...
  • Page 5 H/W: 2 Relay outputs with current carrying capacity of 1 A @24VDC, Alarm Relay Contact Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected POE power Provide 2 Redundant power , Alarm relay contact ,6 Wire range: 0.34mm^2 to 2.5mm^2 Removable Terminal Block Solid wire (AWG):12-24/14-22...
  • Page 6: Housing Dimension

    H/W: 2 Housing Dimension...
