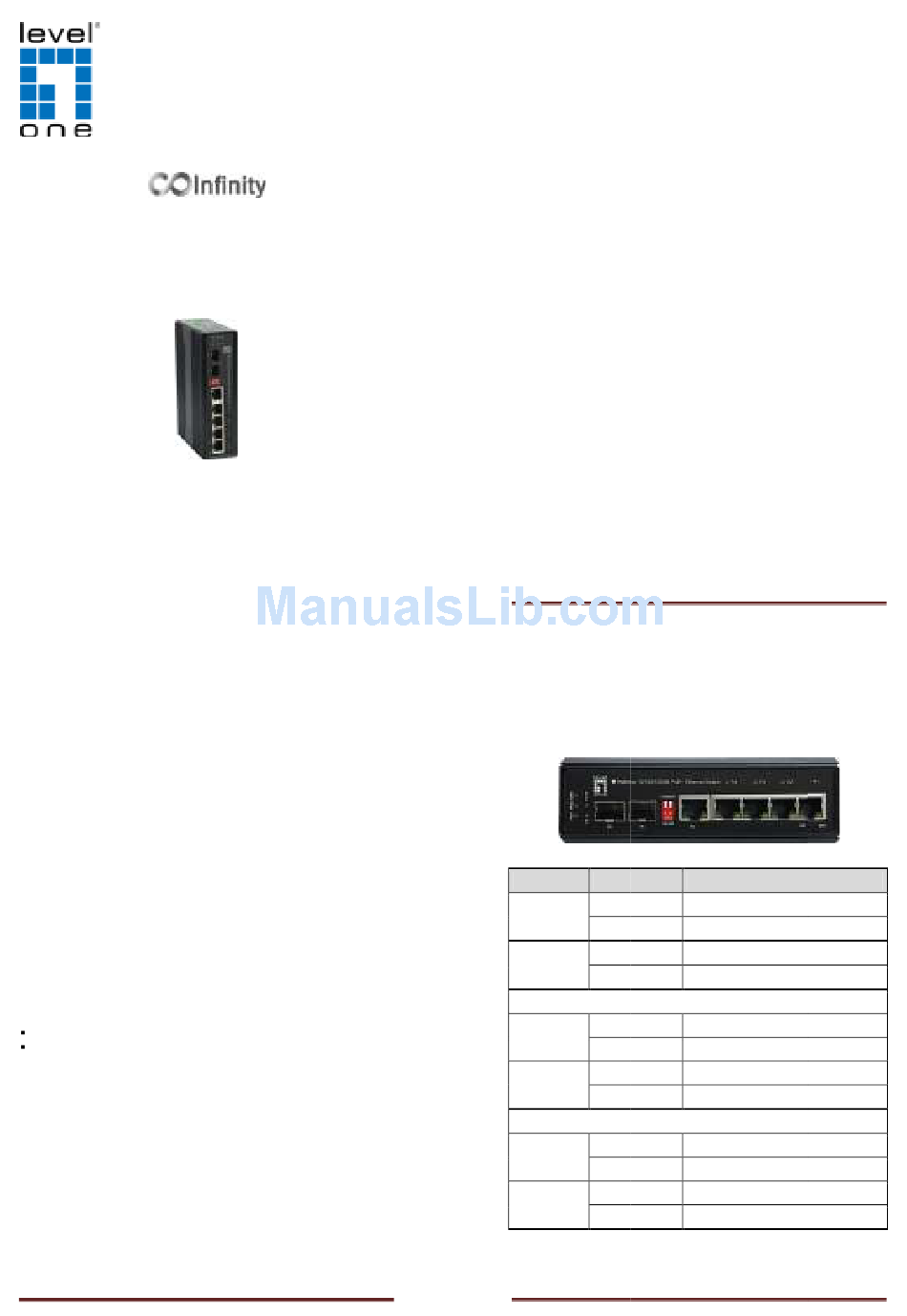

LevelOne IES-0600 Quick Installation Manual

IES-0600
4 TX + 1 Switch SFP + 1Combo TX + 1 Switch SFP + 1Combo -40 to 75C
Quick Installation Guide Quick Installation Guide Quick Installation Guide
Features
• Meets NEMA TS1/TS2 Environmental requirements such as temperature,
shock, and vibration for traffic control equipment
• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for
industrial environment
• Supports 1024 MAC addresses. Provides 1M bits memory buffer
• Provides one combo Gigabit ports. SFP socket for Gigabit fibre optic
expansion.
• Store-and-forward mechanism. Full wire-speed forwarding rate.
• Power Supply: 12~55VDC Terminal Block power input.
• 5.52W power consumption 48VDC @ 0.12A (unit only)
• -40℃ to 75℃ (-40℉ to 167℉) operating temperature range.
• Tested for functional operation @ -40℃ to 85℃ (-40℉ to 185℉).
• Hardened metal case

Package Contents

IES-0600
Quick Installation Guide
IES-0600
40 to 75C
v1.00 - 1401
Page 2
Overview
LevelOne IES-0600 Industry Ethernet Switch provides 4 ports
of 10/100/1000Base-T Ethernet plus 2 ports of Gigabit SFP to
enable high speed network at mission-critical environment. The
compact metal housing is designed for desktop space saving,
plus the clearly visible status LEDs provide simple monitoring of
port link activity. Moreover, the SFP slots support pluggable
modules that enabling you to choose from a variety of
transceivers.
High Reliability
All components are built to withstand harsh environment
applications without compromise where humidity, temperature
variation and even shock vibration are concerns, including
Electric & Utility, Critical Infrastructure, Transportation and
Surveillance Security. This device operates under -40 to 75
Celsius (-40 to 167 Fahrenheit) temperature.
Plug & Play
This unmanaged Industrial Ethernet Switch is designed for the
demanding industrial environments at businesses in need of
instant connectivity with no setup or configure required, truly
plug and play.
IES-0600
LED Status LED Status
LED Status Status
Steady
PWR 1, 2
Off
Steady
P1 ~ P4
Off
10/100/1000Base-TX (T1 ~ T5) (T1 ~ T5)
Steady
LNK
Flashing Flashing
Steady
SPD
Off
1000Base-SFP
Steady
F5
Flashing Flashing
Steady
F6
Off
IES-0600
Page 1
Description Description
Power On
Power Off
PD is connected
No PD is connected
Network connection established Network connection established
Transmitting or Receiving data Transmitting or Receiving data
1000M speed is established 1000M speed is established
10M or 100M speed is established 10M or 100M speed is established
Network connection established Network connection established
Transmitting or Receiving data Transmitting or Receiving data
A valid connection established connection established
No connection is being established No connection is being established
Page 3
