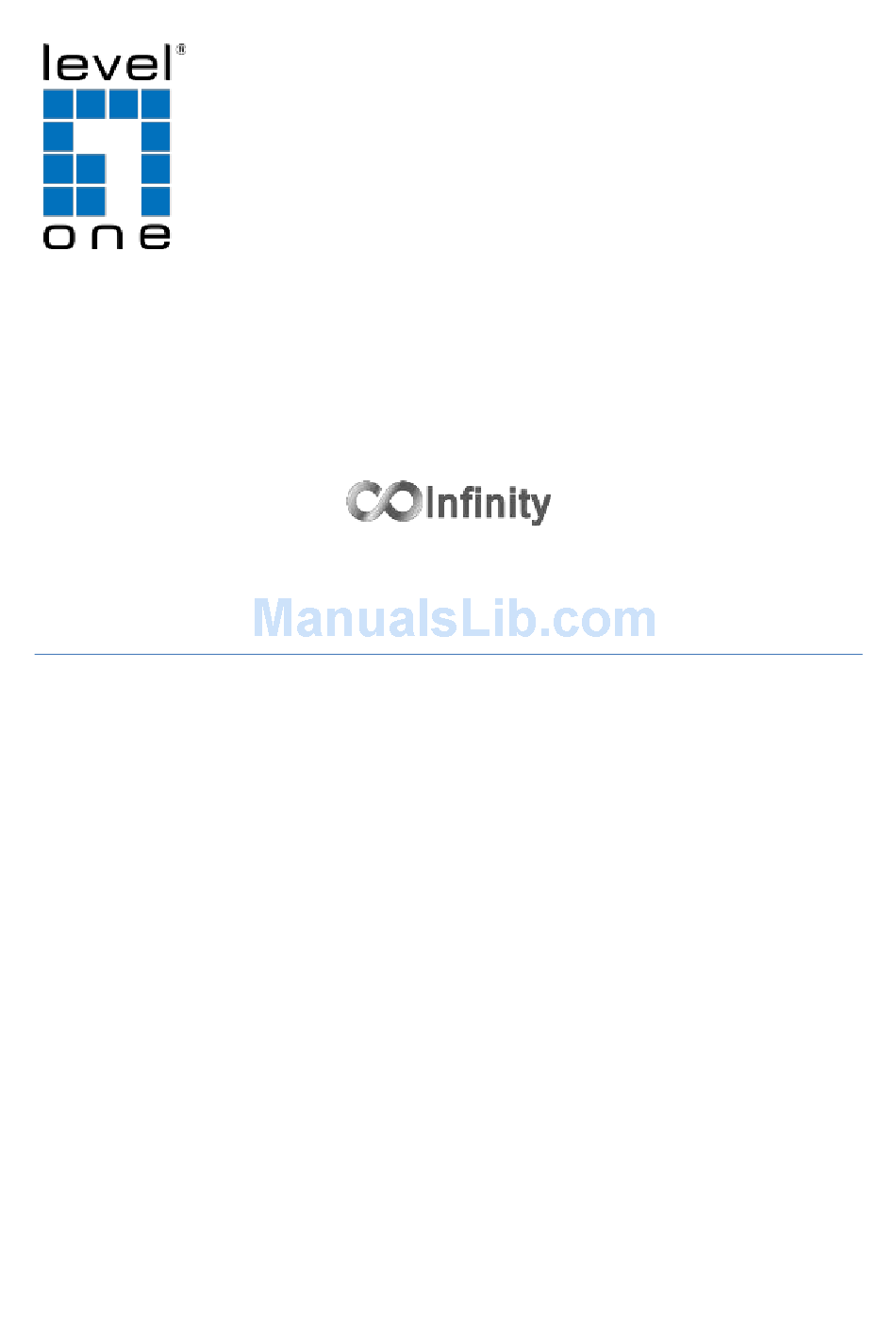

Page 1: User Manual
IES-0851 4 x 802.3af PoE + 3 FE+ 1 MM SC Web Smart Switch -40 to 75C, DIN-rail User Manual v1.00 - 1206... - Page 2 To get the most out of this manual, you should have an understanding of Ethernet networking concepts. In this manual, you will find: Features on the Hardened Web-Smart PoE Ethernet Switch Illustrative LED functions Installation instructions Management Configuration Specifications IES-0851 User Manual Page 2...
-
Page 3: Table Of Contents
Table of Contents OVERVIEW ........................... 4 ....................4 ARDENED MART THERNET WITCH ................................5 EATURES ............................. 5 ACKAGE ONTENTS ............................6 RONT ANEL ISPLAY ................................ 7 OWER NPUT ..............................8 RAIN OUNT 10/100B -TX C ..........................9 ONNECTOR ........................10 ONNECTING TO ETWORK Cable Type &... -
Page 4: Overview
Overview Hardened Web-Smart PoE Ethernet Switch LevelOne IES-0851 Industry Ethernet Switch provides 4 PoE ports of 10/100Base-TX plus 3 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity. -
Page 5: Features
When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. IES-0851 Hardened Web-Smart PoE Ethernet Switch Quick Installation Guide ... -
Page 6: Front Panel Display
Front Panel Display Status Description Steady Power On PW 1,2,3 Power Off 10/100Base-TX or 100Base-FX/BX Steady Network connection is established LNK/ACT Flashing Transmitting or Receiving data Steady Power Device (PD) is connected Power Device (PD) is disconnected IES-0851 User Manual Page 6... -
Page 7: Power Input
Power Input 48VDC Power Ground 48VDC Power Ground DC Jack 48VDC Earth Ground Relay Output 0.1A @ 24VDC *Warning signal disable for following: 1. The relay contact closes if Power1 and Power2 are both failed but Power3 2. The relay contact closes if Power3 is failed but Power1 and Power2 are both on. -
Page 8: Din Rain Mount
Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the switch from the DIN rail. IES-0851 User Manual Page 8... -
Page 9: 10/100Base-Tx Connector
10/100Base-TX Connector The following lists the pin-out of 10/100Base-TX ports. PoE Port (1 to 4) Standard Port (5) Output Transmit Data + Input Receive Data + Output Transmit Data - Input Receive Data - Input Receive Data + Output Transmit Data + Positive (VCC+) Positive (VCC+) Input Receive Data -... -
Page 10: Connecting To Your Network
Step 4: Connect one end of the cable to the switch and the other end to a desired device. Step 5: Once the connections between two end devices are made successfully, turn on the power and the switch is operational. IES-0851 User Manual Page 10... -
Page 11: Web Management
Web Management The switch provides a browser interface that lets you configure and manage the switch remotely. applications directly in your web browser by entering the IP address of the switch. You can then use your web browser to list and manage switch configuration parameters from one Web-Based Browser Management The switch provides a web-based browser interface for configuring and managing the switch. -
Page 12: Logging On To The Switch
Enter the factory default user name: admin. PASSWORD Enter the factory default password (no password). Or enter a user-defined password if you followed the instructions later and changed the factory default password. on to the switch. IES-0851 User Manual Page 12... -
Page 13: Browser Interface
Browser Interface The web browser interface provides groups of point-and-click buttons at the left field of the screen for configuring and managing the switch. Port Based VLAN Priority Diff Serv Code Point Bit 0 ~ 31, Bit 32 ~ 63 System Setup Firmware Upgrade IES-0850 User Manual... -
Page 14: Poe
6. Power priority: C Power priority drop-down menu to choose Low , Middle , or High Power priority drop-down list to determine power priority of Port 1 ~ Port 4. 7. OK: OK button to update your settings. IES-0851 User Manual Page 14... -
Page 15: Port Based Vlan
Port Based VLAN Port Based VLAN 1. VLAN.1 ~ VLAN.7: Click and choose Port 1 ~ Port 8 to be added into VLAN.1 ~ VLAN.7. 2. Cancel: Cancel button to cancel your settings. 3. OK: OK button to update your settings. IES-0850 User Manual Page 15... -
Page 16: Priority
3. 802.1p Level 7 ~ Level 0: Click and set High or Low priority to queue of 802.1p Level 7 ~ Level 0. 4. Cancel: Cancel button to cancel your settings. 5. OK: OK button to update your settings. IES-0851 User Manual Page 16... -
Page 17: Diff Serv Code Point
Diff Serv Code Point Diff Serv Code Point Bit 0 ~ 31: 1. Diff Serv Code Point: Check and set Bit 0 ~ 31 of Diff Serv Code Point to high priority. 2. Cancel: Cancel button to cancel your settings. 3. -
Page 18: System Setup
5. OK: OK button to update your settings. System Reset/Restore to default: 1. Load Default: Load Default button to restore the default settings of the Switch. 2. Reset System: Reset System button to restart the Switch. IES-0851 User Manual Page 18... -
Page 19: Firmware Upgrade
Firmware Upgrade Firmware Update 1. Cancel: C Cancel button to cancel firmware update request. 2. Update: C Update button and wait for firmware update request being processed. IES-0850 User Manual Page 19... -
Page 20: Specifications
EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock) Compliance IEC60068-2-32 Ed (Free Fall) NEMA TS1/2 Environmental requirements for traffic control equipment IES-0851 User Manual Page 20...
