LevelOne Infinity IES-0510 Quick Installation Manual

IES-0510
4 FE + 1 MM SC Unmanaged Switch - 10 to 60, DIN 4 FE + 1 MM SC Unmanaged Switch
Quick Installation Guide Quick Installation Guide Quick Installation Guide
Features
• Complies with IEC61000-6-2 EMC Generic standard immunity for industrial
environment.
• Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/half-
duplex; Auto MDI/MDIX.
• 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type; WDM
Single mode SC type.
• Supports IEEE802.1p QoS with two priority queues.
• Supports IEEE802.3az Energy Efficient Ethernet (EEE).
• Support 2048 MAC addresses, 384K bits buffer memory.
• Store-and-forward mechanism.
• Full wire-speed forwarding rate and non-blocking mechanism.
• Broadcast storm filtering.
• Operating voltage and Max. current consumption: 0.2A @ 12VDC, 0.1A @
24VDC, 0.05A @ 48VDC. Power consumption: 2.4W Max.
• Power Supply: DC Terminal Block power input, 12-48VDC.
• Operating temperature ranges from -10℃ to 60℃.
•
Plastic compact DIN-Rail industrial case design.

Package Contents

IES-0510
Quick Installation Guide
IES-0510
10 to 60, DIN -rail
v1.00 - 1206
Page 2
Overview
LevelOne IES-0510 Industry Ethernet Switch
of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC
fiber to enable high speed network at mission-critical
environment. This device is designed to be mounted on an
industry standard DIN-rail, plus the clearly visible status LEDs
provide simple monitoring of port link activity.
Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140
Fahrenheit) temperature that offers optimal suitability for
industrial applications at low cost while maintaining all
components built to withstand harsh environment applications
without compromise reliability and stability.
Plug & Play
This unmanaged Industrial Ethernet Switch is designed for the
demanding industrial environments at businesses in need of
instant connectivity with no setup or configure required, truly
plug and play.

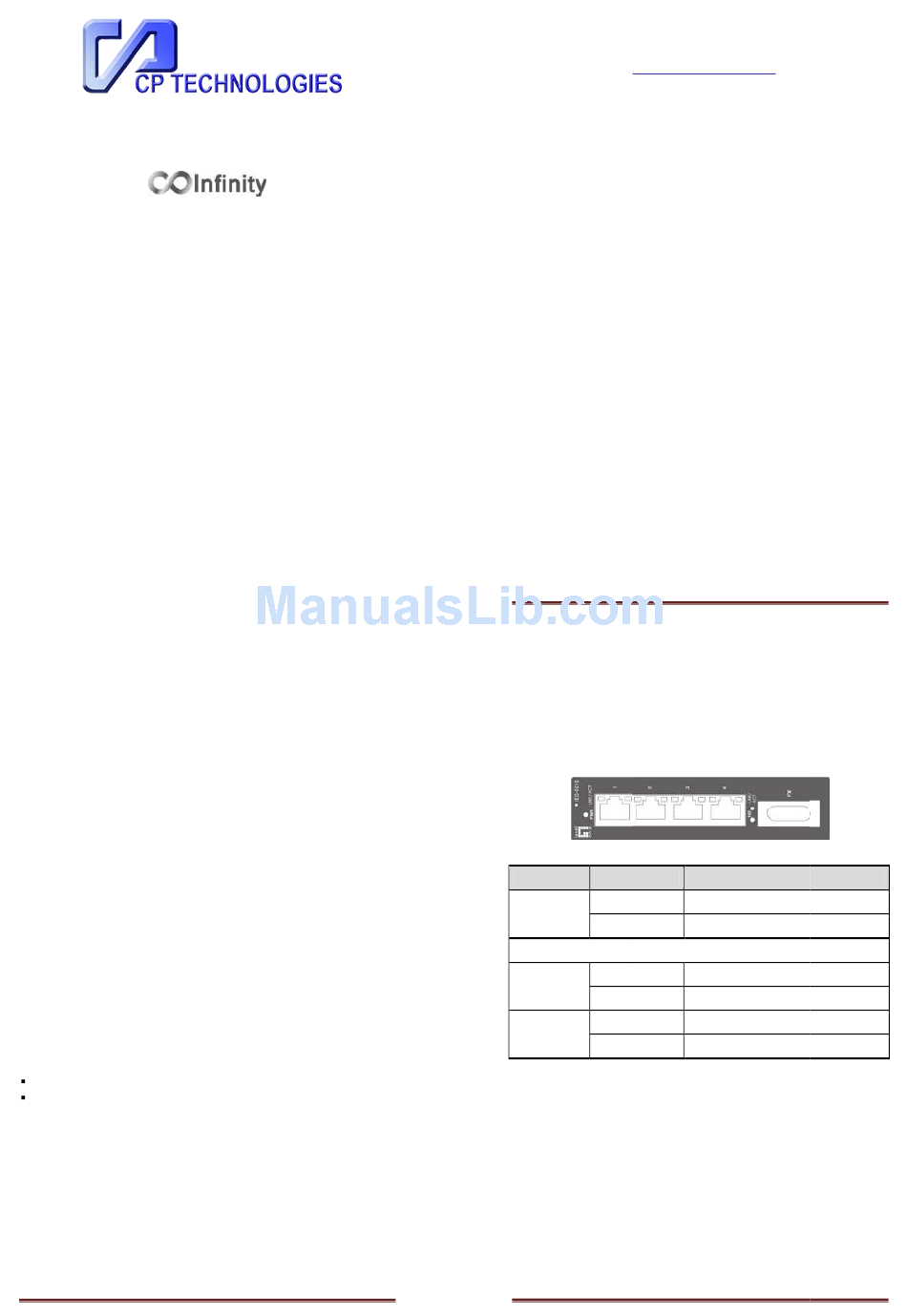

IES-0510
LED Status LED Status
LED Status Status
Steady
PWR
(Green)
Off
10/100Base-TX or 100Base TX or 100Base-FX/BX
Steady
LNK/ACT
Flashing Flashing
Steady
100
Off
IES-0510
provides 4 ports
Page 1
Description Description
Power On
Power Off
Network connection is established Network connection is established
Transmitting or Receiving data Transmitting or Receiving data
Connection at 100Mbps speed Connection at 100Mbps speed
Connection at 10Mbps speed Connection at 10Mbps speed
Page 3
