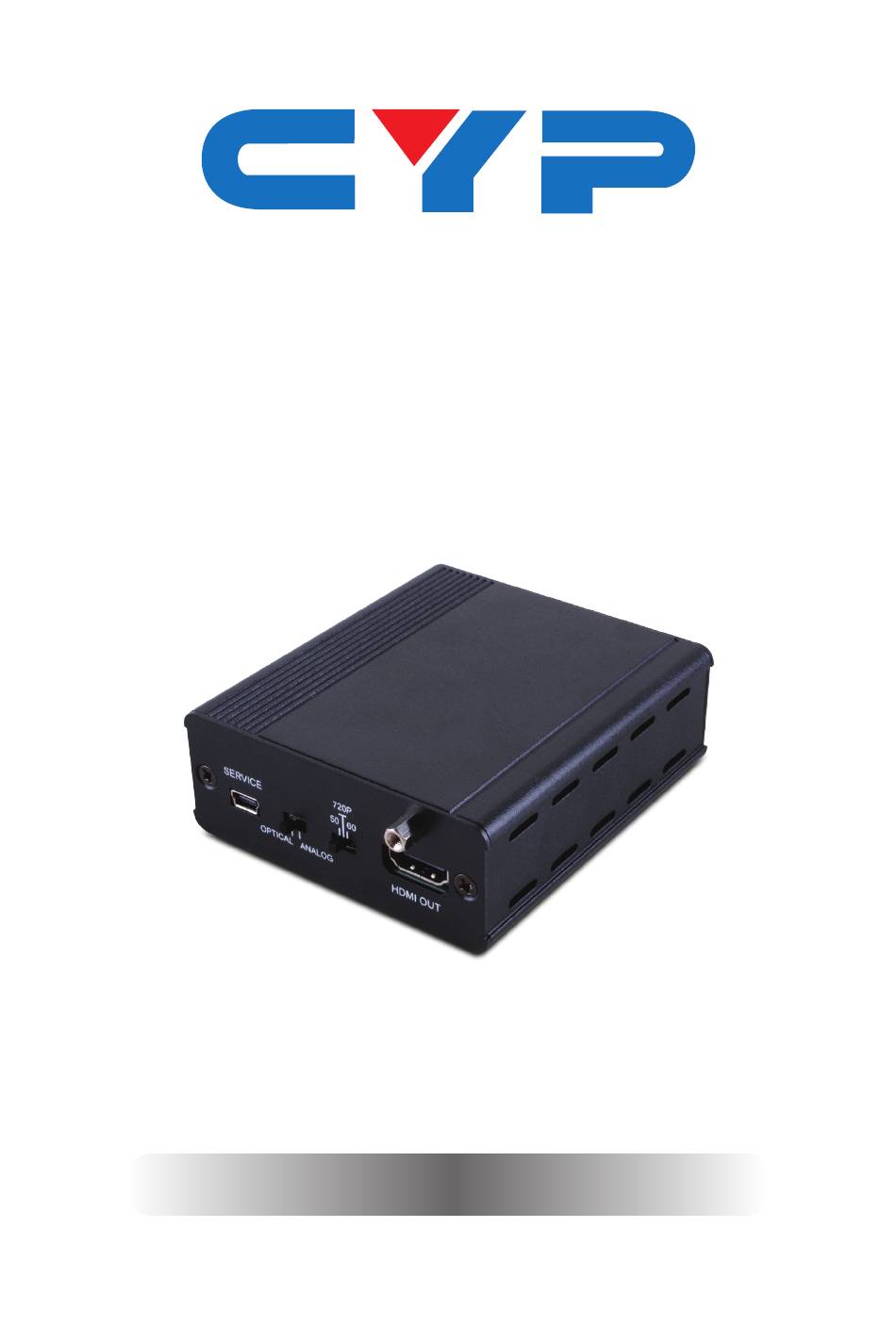

  • Page 1 CLUX-11HB L/R & Optical Audio to HDMI Bridge Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel .........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8.

  • Page 6: Introduction

    1. INTRODUCTION The L/R and Optical Audio to HDMI Bridge is designed to convert analog or digital audio signals into an HDMI output, allowing easy integration of audio only sources with HDMI distribution systems. This device adds a 'blue-screen' video feed with a simple on-screen display (OSD) that shows the current audio input so that any HDMI AV Receiver, display or matrix will accept the audio signal.

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel ANALOG OPTICAL DC 5V POWER INPUT ANALOG L/R INPUT Connect to an audio source with analog (L/R) output with RCA cables. OPTICAL INPUT Connect from audio source equipment with optical output with an optical cable.

  • Page 8: Rear Panel

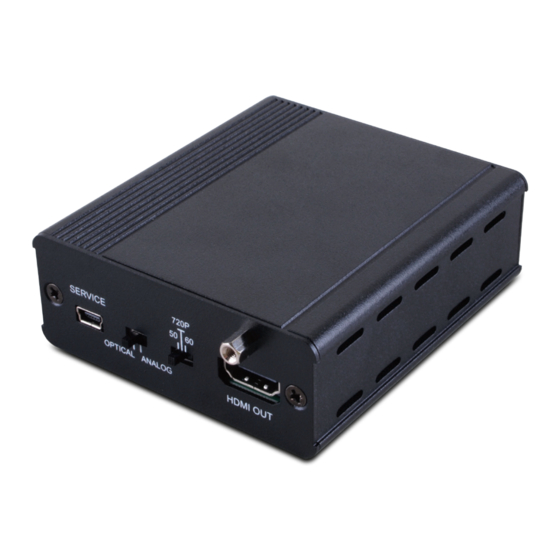

    6.2 Rear Panel 720P SERVICE 50 60 OPTICAL ANALOG HDMI OUT SERVICE Reserved for manufacturer use only. OPTICAL/ANALOG Switch Switch to select between Optical or Analog L/R inputs. 720p 50/60 Switch Switch to select the 'blue screen' image output at either 720p/50 or 720p/60.

  • Page 9: Connection Diagram

    7. CONNECTION DIAGRAM CD/DVD Player Media Player Analog Stereo Optical Digital Input Input Power Supply ANALOG OPTICAL DC 5V POWER INPUT 720P SERVICE 50 60 OPTICAL ANALOG HDMI OUT HDMI Output MENU POWER LOCK HDMI Matrix HDTV...

  • Page 10: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Input Ports 1×L/R (Analog Stereo 2RCA), 1×Optical Output Port 1×HDMI Input Audio 32~192 kHz (Optical) Sampling Rate Output Audio 48 kHz (Analog Stereo) Sampling Rate 32~192 kHz (Optical) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL...

  • Page 11: Acronyms

    8.3 Input Audio to Output Audio Chart AUDIO INPUT INPUT FORMAT HDMI AUDIO OUTPUT Analog L/R Analog 2CH LPCM 2CH OPTICAL LPCM 2CH LPCM 2CH Dolby Digital/DTS Bypass 8.2 Audio Specifications INPUT OUTPUT OUTPUT T.H.D+N FREQUENCY SNR CROSS- LEVEL TALK RESPONSE OPTICAL 0dBFS...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
