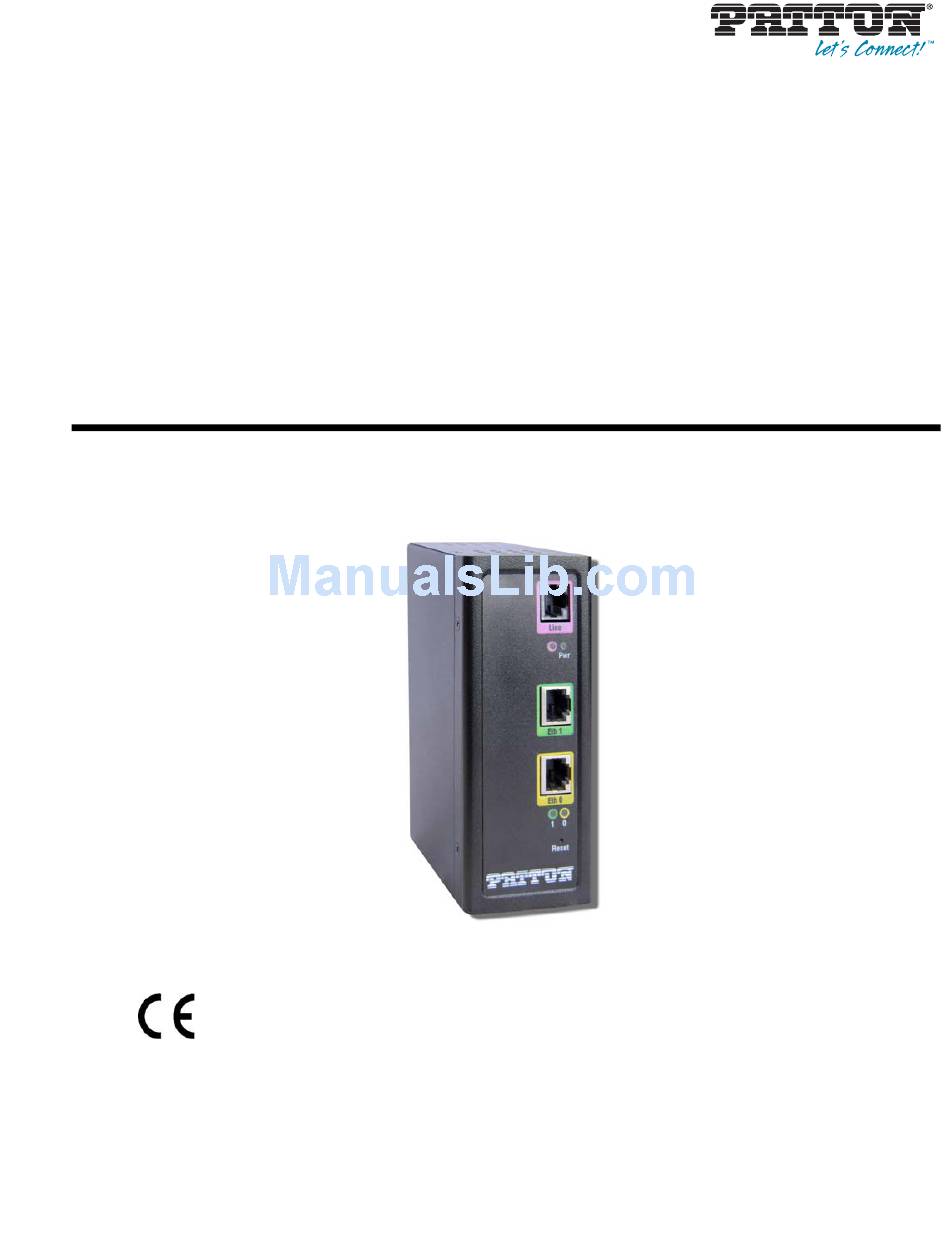

CopperLink Model 1300R Series

Ruggedized Long Range
Ethernet Extender

User Manual

Important
This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial
or residential environment.
REGULATORY MODEL NUMBER: 03340D4-001
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Part Number: 07MCL1300R, Rev. A
Revised: October 22, 2012

Advertisement

Table of Contents
loading

Summary of Contents for Patton CopperLink 1300R Series

  • Page 1: Copperlink Model 1300R Series

    This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. REGULATORY MODEL NUMBER: 03340D4-001 Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Part Number: 07MCL1300R, Rev. A Revised: October 22, 2012...
  • Page 2 Patton Electronics specifically disclaims all other warranties, expressed or implied, and the installation or use of this product shall be deemed an acceptance of these terms by the user.
  • Page 3: Summary Table Of Contents

    General information ............................13 2 Configuration..............................16 CopperLink installation ..........................24 Operation ..............................28 Software Upgrade ............................30 Contacting Patton for assistance ........................32 Compliance information ..........................35 Specifications ..............................37 Factory replacement parts and accessories ....................41 Interface pinouts...
  • Page 4: Table Of Contents

    Table of Contents Summary Table of Contents ........................... 3 Table of Contents ............................4 List of Figures ..............................7 List of Tables ..............................8 About this guide ............................. 9 Audience................................. 9 Structure................................. 9 Precautions ................................10 Safety when working with electricity .......................11 General observations ............................12...
  • Page 5 Contacting Patton for assistance ........................32 Introduction ................................33 Contact information..............................33 Patton support headquarters in the USA ......................33 Alternate Patton support for Europe, Middle East, and Africa (EMEA) ............33 Warranty Service and Returned Merchandise Authorizations (RMAs)..............33 Warranty coverage ............................33 Out-of-warranty service ..........................34 Returns for credit ............................34...
  • Page 6 CopperLink Model 1300R Series User Manual Table of Contents Factory replacement parts and accessories ......................42 Interface pinouts ............................43 Line port ................................44 Ethernet port.................................44...
  • Page 7: List Of Figures

    List of Figures CopperLink Model 1300R Series ............14 Terminal block power connection .
  • Page 8: List Of Tables

    List of Tables General conventions ..............12 CopperLink configurable parameters .
  • Page 9: About This Guide

    About this guide This guide describes installing and operating the Patton Electronics CopperLink™ Model 1300R Series Rug- gedized Long Range Ethernet Extender. Audience This guide is intended for the following users: • Operators • Installers • Maintenance technicians Structure This guide contains the following chapters and appendices: •...
  • Page 10: Precautions

    CopperLink Model 1300R Series User Manual Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per- sonal injury.
  • Page 11: Safety When Working With Electricity

    CopperLink Model 1300R Series User Manual Safety when working with electricity • Do not open the device when the power cord is connected. For systems without a power switch and without an external power adapter, line volt- ages are present within the device when the power cord is connected. WARNING For devices with an external power adapter, the power adapter shall be a •...
  • Page 12: General Observations

    CopperLink Model 1300R Series User Manual Electrostatic Discharge (ESD) can damage equipment and impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent CAUTION failures. Do the following to prevent ESD: Always follow ESD prevention procedures when removing and •...
  • Page 13: General Information

    Chapter 1 General information Chapter contents CopperLink Model 1300R Series overview......................14 Features .................................14 Power input connector ............................15 External AC universal power supply ........................15 External 48 VDC power supply ........................15...
  • Page 14: Copperlink Model 1300R Series Overview

    AWG) voice-grade twisted pair. Whether setting up a private network backbone to a corporate LANs or remote office or connecting network enabled devices such as PCs, digital sensors or IP cameras, Patton Ethernet Extenders offer the best combination of speed and distance in the industry. The CL1300R temperature specs allow for operation at -40ºC to 85ºC.
  • Page 15: Power Input Connector

    CopperLink Model 1300R Series User Manual 1 • General information Power input connector The CopperLink comes with an AC or DC power supply. (See section “Power and power supply specifica- tions” on page 39.) • The power connection to the CL1300R is a terminal block (see Figure •...
  • Page 16: Configuration

    Chapter 2 Configuration Chapter contents Introduction ................................17 Hardware (DIP-switch) configuration ......................17 Configuring the DIP switches .........................17 DIP switch settings ............................18 DIP switch settings: Data Rate ........................19 Ethernet Management Port ..........................22 CopperLink Status Command ........................22 Help Commands ............................22 Example Command Line Interface Session ....................23...
  • Page 17: Introduction

    CopperLink Model 1300R Series User Manual 2 • Configuration Introduction You can configure the CopperLink through the hardware configuration via DIP switches. Hardware (DIP-switch) configuration To use DIP-switch configuration you must first set the DIP switches to a position other than all OFF or all ON before powering-up the CopperLink.
  • Page 18: Dip Switch Settings

    CopperLink Model 1300R Series User Manual 2 • Configuration Model CL1300R Figure 3. Underside of CL1300R showing location of DIP switches The three sets of DIP switches on the underside of the CL1300R are referred to as S1, S3 and S4.
  • Page 19: Dip Switch Settings: Data Rate

    CopperLink Model 1300R Series User Manual 2 • Configuration DIP switch settings: Data Rate Switches S4-2 through S4-8 define the CopperLink line rate. Table 3. S4-2 through S4-8 Data Rate DIP switch settings S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8 Data Rate (kbps) 1024 1088 1152...
  • Page 20 CopperLink Model 1300R Series User Manual 2 • Configuration Table 3. S4-2 through S4-8 Data Rate DIP switch settings (Continued) S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8 Data Rate (kbps) 2496 2560 2624 2688 2752 2816 2880 2944 3008 3072 3136 3200 3264...
  • Page 21 CopperLink Model 1300R Series User Manual 2 • Configuration Table 3. S4-2 through S4-8 Data Rate DIP switch settings (Continued) S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8 Data Rate (kbps) 4928 4992 5056 5120 5184 5248 5312 5376 5440 5504 5568 5632 5696...
  • Page 22: Ethernet Management Port

    CopperLink Model 1300R Series User Manual 2 • Configuration Ethernet Management Port The CL1300R Series offers a 10/100 Ethernet port to view the current DIP switch settings via Telnet sessions. The Ethernet interface default IP address is 192.168.200.1. Log into the CL1300R management port using the password superuser.
  • Page 23: Example Command Line Interface Session

    CopperLink Model 1300R Series User Manual 2 • Configuration Example Command Line Interface Session CL1314R Command Shell Password: CL1314R> status configuration: copperlink mode: local copperlink rate: 5696 line probe: disabled status: actual rate: loss of signal: unavailable noise margin: snr: sync state: out of sync link state:...
  • Page 24: Copperlink Installation

    Chapter 3 CopperLink installation Chapter contents Installation ................................25 Connecting the CopperLink interface ......................25 Connecting the Ethernet interface ........................26 Connecting power ............................26 External AC universal power supply ......................26 DC power supply ............................27...
  • Page 25: Installation

    CopperLink Model 1300R Series User Manual 3 • CopperLink installation Installation Once the CL1300R is properly configured, it is ready to connect to the CopperLink interface and to the power source. This section explains how to make these connections. Model CL1314R Model CL1311R CopperLink™...
  • Page 26: Connecting The Ethernet Interface

    CopperLink Model 1300R Series User Manual 3 • CopperLink installation Connecting the Ethernet interface This section describes how to connect the Ethernet ports to your network equipment. The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and CAUTION mechanical serviceability.
  • Page 27: Dc Power Supply

    Figure 7. DC Power Supply There are no user-servicable parts in the power supply section of the CL1300R. Fuse replacement should only be performed by qualified service personnel. See Chapter 6, “Contacting Patton WARNING on page 32. for assistance” Installation...
  • Page 28: Operation

    Chapter 4 Operation Chapter contents Introduction ................................29 Power-up ................................29 LED status monitors ............................29 Power (Green) ............................29 Line Link (Green) .............................29 ETH Link (Green) ............................29...
  • Page 29: Introduction

    CopperLink Model 1300R Series User Manual 4 • Operation Introduction Once the CL1300R is properly configured and installed, it should operate transparently. The following sec- tions describe power-up, reading the LED status monitors, and using the built-in loopback test modes. Power-up To apply power to the CL1300R, first be sure that you have read section “Power input connector”...
  • Page 30: Software Upgrade

    Chapter 5 Software Upgrade Chapter contents Introduction ................................31...
  • Page 31: Introduction

    CopperLink Model 1300R Series User Manual 5 • Software Upgrade Introduction The software upgrade feature is available through BOOTP/TFTP. The software upgrade takes approximately 2-3 minutes to complete. To upgrade the software: 1. Connect to CL1300R via the Ethernet management port and a Telnet session. 2.
  • Page 32: Contacting Patton For Assistance

    Contacting Patton for assistance Chapter contents Introduction ................................33 Contact information..............................33 Patton support headquarters in the USA ......................33 Alternate Patton support for Europe, Middle East, and Africa (EMEA) ............33 Warranty Service and Returned Merchandise Authorizations (RMAs)..............33 Warranty coverage ............................33 Out-of-warranty service ..........................34 Returns for credit ............................34...
  • Page 33: Introduction

    (RMA). Contact information Patton Electronics offers a wide array of free technical services. If you have questions about any of our other products we recommend you begin your search for answers by using our technical knowledge base. Here, we have gathered together many of the more commonly asked questions and compiled them into a searchable database to help you quickly solve your problems.
  • Page 34: Out-Of-Warranty Service

    RMA#: xxxx 7622 Rickenbacker Dr. Gaithersburg, MD 20879-4773 USA Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return shipping costs. Warranty Service and Returned Merchandise Authorizations (RMAs)
  • Page 35: A Compliance Information

    Appendix A Compliance information Chapter contents Compliance ................................36 ................................36 Safety ................................36 Radio and TV Interference (FCC Part 15) ......................36 CE Declaration of Conformity ..........................36 Authorized European Representative ........................36...
  • Page 36: Compliance

    CE Declaration of Conformity Patton Electronics, Inc declares that this device is in compliance with the essential requirements and other rel- evant provisions of Directive 1999/5/EC. The Declaration of Conformity may be obtained from Patton Elec- tronics, Inc at www.patton.com/certifications.
  • Page 37 Appendix B Specifications Chapter contents Line rate ................................38 Ethernet interface ..............................38 Status LEDs................................38 Power (Green) ............................38 Line Link (Green) .............................38 ETH Link (Green) ............................38 Configuration................................38 Power and power supply specifications ........................39 External AC universal power supply ........................39 External 48 VDC power supply ........................39 Transmission line ..............................40...
  • Page 38: B Specifications

    CopperLink Model 1300R Series User Manual B • Specifications Line rate 192 to 5696 kbps (64k increments) Ethernet interface CL1314R: Two RJ-45, 10/100Base-T, IEEE 802.3 Ethernet CL1311R: One RJ-45, 10/100Base-T, IEEE 802.3 Ethernet Status LEDs Power (Green) The Power LED glows solid during normal operation. At startup, during the POST, the LED blinks once every second.
  • Page 39: Power And Power Supply Specifications

    CopperLink Model 1300R Series User Manual B • Specifications Power and power supply specifications The CL1300R Series comes with either an AC or DC power supply: • The power connection to the CL1314R is a terminal block (see Figure • There is one fuse in the equipment rated at 250V, 500 mA, 2 sec.
  • Page 40: Transmission Line

    Operating temp: 32–122°F (0–50°C) Humidity: 5–95% non-condensing Altitude: 0–15,000 feet (0–4,600 meters) Third party software licenses Note The CL1300R Series includes software developed under third party licenses. Contact Patton (Chapter 6, “Contacting Patton for assistance” on page 32) for more information. Transmission line...
  • Page 41: Factory Replacement Parts And Accessories

    Appendix C Factory replacement parts and accessories Chapter contents Factory replacement parts and accessories ......................42...
  • Page 42: Factory Replacement Parts And Accessories

    CopperLink Model 1300R Series User Manual C • Factory replacement parts and accessories Factory replacement parts and accessories Power Supplies PS-03671H1-004 100-240VAC (12V, DC/2A) Wall mount power adapter with terminal block Power Adapters 12-130 European replacement plug 12-129 American replacement plug 12-131 United Kingdom plug 12-132...
  • Page 43: Interface Pinouts

    Appendix D Interface pinouts Chapter contents Line port ................................44 Ethernet port.................................44...
  • Page 44: Line Port

    CopperLink Model 1300R Series User Manual D • Interface pinouts Line port RJ-45 connector Pin # Signal No connection No connection No connection Ring No connection No connection No connection Ethernet port Table 4. RJ45 socket 10/100Base-T Signal Note Pins not listed are not used. Line port...
